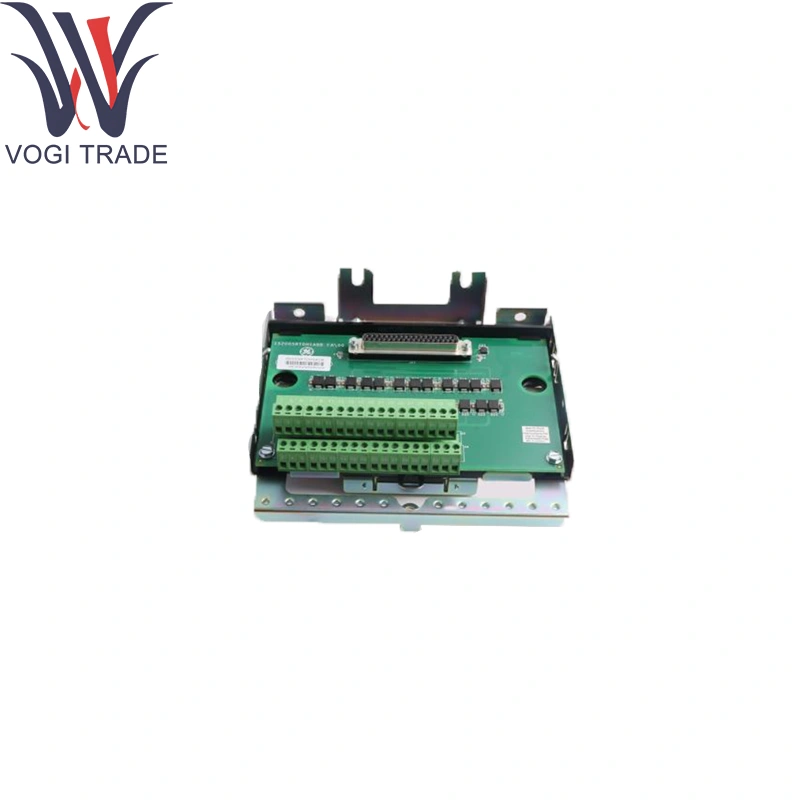

GE IS200SRTDH2A Solenoid/Relay Driver Terminal Boards

Technical Parameters

GE IS200SRTDH2A Solenoid/Relay Driver Terminal Boards

Output Channels: 16 isolated DC driver channels (open-collector)

Load Voltage: 24 V DC nominal (18–32 V DC range)

Load Current: 0.1 – 2.0 A per channel (programmable current limit)

Switching Speed: Turn-on ≤ 5 ms; turn-off ≤ 3 ms

GE IS200SRTDH2A Isolation:

Channel-to-ground: 1 kV reinforced

Channel-to-channel: 500 V basic

GE IS200SRTDH2A Diagnostics:

Per-channel load-OK sensing (current-sense threshold)

LEDs for output-on and fault per channel

GE IS200SRTDH2A Protection:

Overcurrent shutdown with auto-reset

Reverse-polarity and overvoltage clamp

Connector: Right-angle 52-position header for pluggable terminal block

GE IS200SRTDH2A Environmental Ratings:

Operating Temp: –30 °C to +65 °C

Storage Temp: –40 °C to +85 °C

Humidity: ≤ 95 % RH, non-condensing

Product function

Accepts digital driver commands from the Mark VIe I/O pack carrier and provides fault-protected DC switching outputs to field devices. Built-in current-sense diagnostics report load status back to the controller over IONet, enabling automated detection of stuck-on, open-load, or short-circuit conditions.

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly

Controller Module: Mark VIe CPU (e.g., IS200TPROH1C)

Complementary I/O Boards:

Discrete-input packs (IS200TICIH2A)

Relay-output packs (IS400TRLYS1B)

Safety I/O packs (IS220YSILS1B)

Extension components

Pluggable Terminal Blocks: Screw-clamp blocks keyed to prevent mis-insertion

DIN-Rail & Panel-Mount Kits: Adapter clips and angle brackets for 35 mm DIN-rail or panel installation

Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression

Conformal-Coating Service Kit: Field-service kit for applying or renewing coating on standard IS200SRTDH2A boards

Software support

Configuration:

Per-channel current-limit and sensing thresholds set via GE ControlST™/ToolboxST™ templates

Diagnostics & Monitoring:

Real-time load-OK, overcurrent, and short-circuit alarms reported in HMI, OPC-DA tags, and controller diagnostics

Status polling and event logging available through Mark VIeS application suite

Firmware Updates: Delivered as part of Mark VIe system software; applied through ToolboxST™

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and the Solenoid/Relay Driver Module Reference Manual
