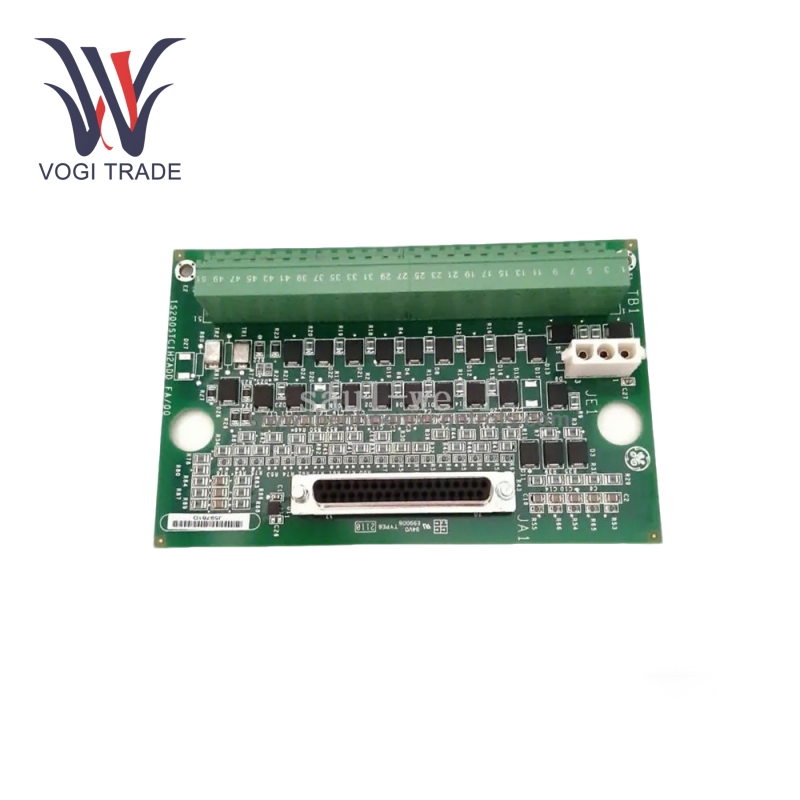

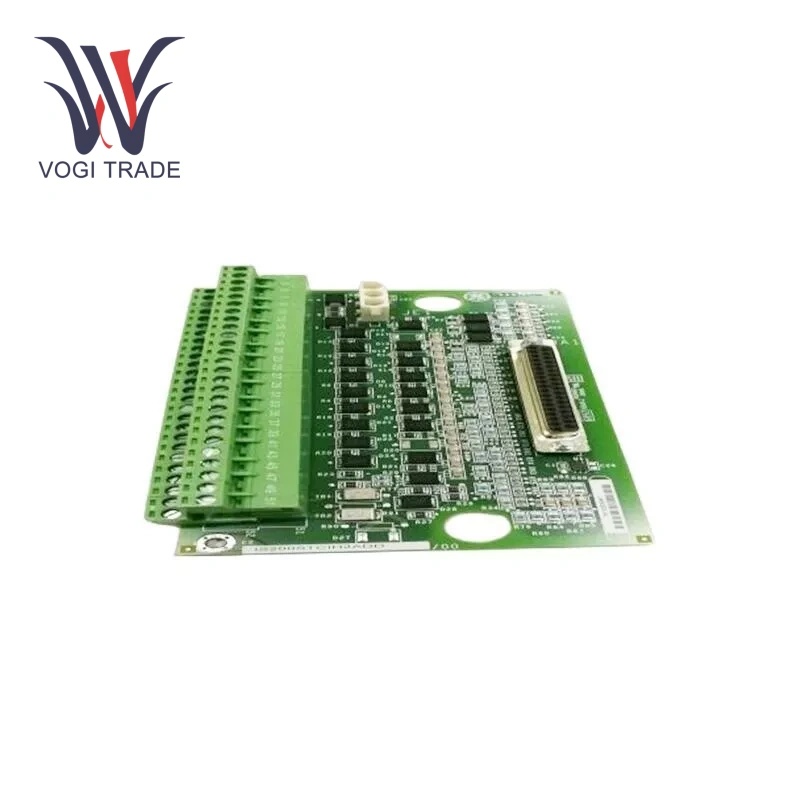

Brand: GE Description: Contact Input terminal board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: ShenZhen With analog signal conditioning and conversion capabilities, GE IS200STCIH2A functions as an interface component in turbine control systems, connecting and processing signals from field devices like sensors and actuators.
|
Manufacture |
GE |
|
Model Number |
IS200STCIH2A |
|
Ordering Number |
IS200STCIH2A |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
34cm*32cm*10cm |
|
Packing Dimension |
36cm*34cm*12cm |
|
Weight |
2kg |
Technical Parameter
Operating Temperature4: -35°C to 65°C.
Power Supply: 220V.
Output Frequency: 620.
Harmonics: Total harmonic distortion (THD), harmonic derating factor.
Temperature Monitoring: Monitors ambient temperature, hottest-spot winding temperature, RTDs 1 through 12.
Current Demand: Monitors current demand for windings 1, 2, and 3
Analog Inputs: Has 4 analog inputs.
Functional Characteristics
Extra Processing Capacity: GE IS200STCIH2A has additional processing power for the control system. As such, it is able to perform advanced calculations and algorithms increasing the control system performance.
Analog and Digital I/O Functions: GE IS200STCIH2A enables users to interface a broader variety of sensors and actuators, including analog ones, reaching the diverse requirements of various control applications.
Communication Interface: It has multiple communication interfaces (SPI/I2C/UART/Ethernet) that enable simple communications with other peripheral devices in the control system and efficient data transfer/exchange.
Data Transmission: GE IS200STCIH2A ensures reliable and accurate data transmission between field devices and control systems, facilitating effective communication within the control system.
Application Areas
Power Generation Industry: It is used in gas and steam turbine control systems in power plants. It can environment gather the signals using sensors in the turbine system, including temperature signal, pressure signal, and speed signal, and transmit to the controller for processing and analysis, thus achieving accurate control and monitoring of the turbine operation.
Industrial Automation: GE IS200STCIH2A is used to connect different switches, relays and other devices in industrial production lines, so as to achieve the collection and transmission of discrete signals, participate in logic control and process monitoring of the production process. Like in the assembly line of the automotive industry, it can check whether each workstation on the main assembly line is opened or closed, the operating status of the conveyor belt, etc.
Building Automation Systems: It is used in smart building systems to collect signals from door and window sensors, fire alarm switches, air conditioning system switches and other equipment, and transmit to the central control system, realize the integrated management and control of building security, lighting, air conditioning and other systems.
Petrochemical Industry: In petrochemical production processes such as oil refining and chemical reaction control, many field devices can be connected, their status signals can be collected and processed by GE IS200STCIH2A, and the data support for the safety and stability of the production process can be provided.
