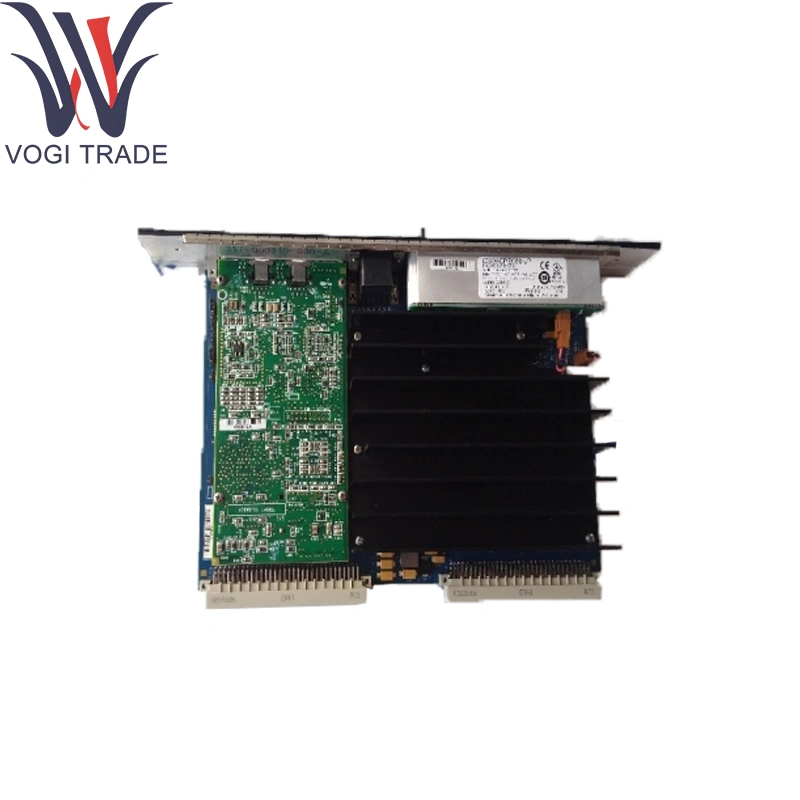

GE IS200STURH2AEC

Technical Parameters

Serial Ports (4):

Configurable per port for RS-232, RS-422, or half-duplex RS-485

Data rates up to 115.2 kbps

1 kV channel-to-ground isolation

Analog Inputs (4):

0–10 V DC range, ± 0.1 % full-scale accuracy

16-bit resolution, 200 samples/sec per channel

Overvoltage clamp to ± 35 V, reverse-polarity protection

Isolation: Reinforced channel-to-channel and channel-to-ground (> 1 kV) across all I/O

Connectors:

Dual 50-pin backplane edge connectors to I/O-pack carrier

Two 26-position right-angle headers for field wiring (serial/analog combined)

Environmental:

Operating Temp: –30 °C to +65 °C

Storage Temp: –40 °C to +85 °C

Humidity: up to 95 % RH, non-condensing

These specifications define GE IS200STURH2AEC.

Product function

GE IS200STURH2AEC consolidates up to four serial-bus channels and four analog-telemetry channels into deterministic IONet packets. The board conditions and digitizes analog signals while managing serial-protocol framing and buffering, delivering synchronized data streams to the Mark VIe CPU for real-time monitoring, diagnostics, and protection logic.

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B providing backplane power (24 V DC) and IONet Ethernet ports

Controller CPU: Mark VIe module (e.g., IS200TPROH1C) handling protocol translation and application logic

Ethernet Switch: IS420ESWB series for network distribution and redundancy

GE IS200STURH2AEC  interfaces with these modules.

Extension components

Pluggable Terminal Blocks: 26-way blocks keyed to serial/analog functions, with shield termination posts

DIN-Rail & Panel-Mount Kits: Clips and angle brackets for 35 mm rail or panel installation

Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression on long field runs

Serial Harnesses: DB-9 and Phoenix-style cable assemblies for device interconnectivity

All accessories are compatible with GE IS200STURH2AEC.

Software support

Configuration:

Channel-mode (RS-232/422/485) and baud-rate settings defined via GE ToolboxST™ templates

Analog-range and filtering parameters set in the same engineering environment

Diagnostics & Monitoring:

Per-port link-health and per-channel fault flags available in HMI screens and OPC-DA tags

Automated self-test on power-up with detailed fault logging in controller diagnostics

Firmware Updates: Delivered as part of Mark VIe system software; applied via ToolboxST™ or USB console

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and Serial/Telemetry Module Reference Manual

This software supports GE IS200STURH2AEC.
