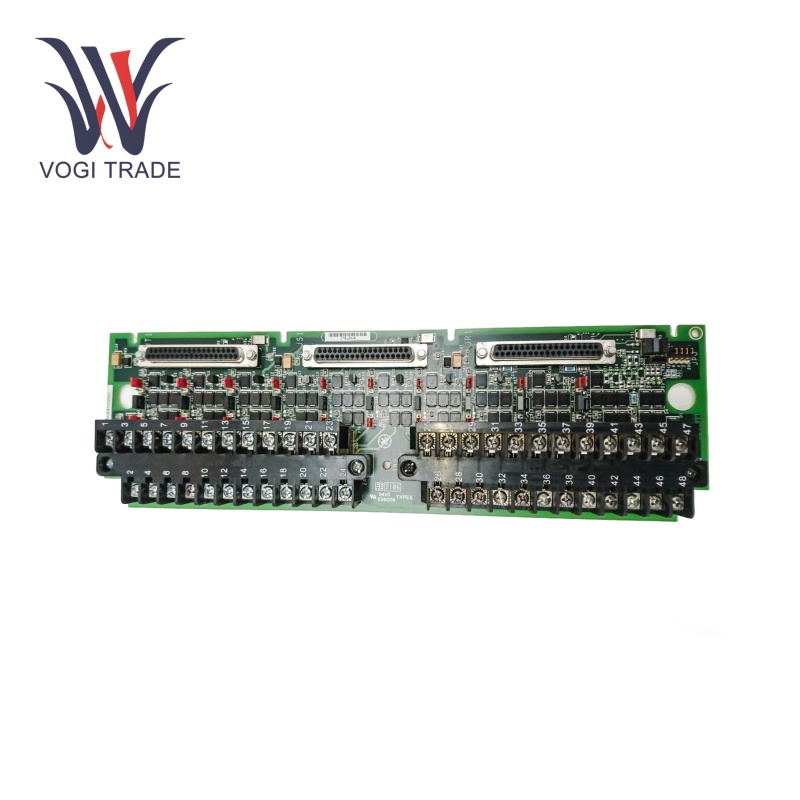

GE IS200TBAIH1CCC

1. Technical Parameter

Rated Voltage: 24V DC.

Voltage Tolerance: ±10% - ±15%.

Power Consumption: 5 - 10W.

Number of Channels: 8.

Input Impedance: 250Ω.

Resolution: 16 - bit or higher.

Accuracy: ±0.1% - ±0.2% full - scale.

Communication Speed: 10/100Mbps.

Operating Temperature: - 20°C to 60°C.

Storage Temperature: - 40°C to 85°C.

Protection Level: IP20.

2. Functional Features

High - Precision Sensing: The high accuracy with 16 - bit resolution of GE IS200TBAIH1CCC enables precise analog signal measurement, delivering accurate data to industrial control systems.

Isolation of Inputs: Isolation of the analog inputs allows one channel to not disturb any other channel electrically; thus, improving the reliability and stability of the data acquisition process.

Flexible Signal Compatibility: GE IS200TBAIH1CCC can accommodate both current and voltage input signals, providing easy connectivity to a wide range of sensor types and enhancing application versatility.

Efficient Communication: The Ethernet - based Modbus TCP/IP communication allows for quick and reliable data transmission with other devices in the industrial system, providing real - time supervision and control capabilities.

Robust Design：Its wide temperature and humidity operating range enables reliable performance even in harsh industrial environments, significantly lowering the risk of environmental malfunction.

3. Fault Diagnosis

LED Indicators: GE IS200TBAIH1CCC has LED indicators that show the status of power, communication, and input channels. A constant green light shows normal operation, but a flashing light or red light can indicate a fault.

Self-Diagnostic Function: It has a built-in self - diagnostic mechanism that can detect faults such as sensor failure, communication error, and power supply problem inside. In case of a fault, error codes are generated which can be read out using a communication interface for troubleshooting.

Remote Monitoring: GE IS200TBAIH1CCC allows remote monitoring through the Ethernet connection. Maintenance staff can retrieve its status and diagnostic data remotely, making it possible to pinpoint and fix issues without having to check on site in many instances.

4. Application Areas

Power generation: It can be used in power plants to measure temperature, pressure, flow rate of turbine, generators and other equipment to allow for smooth working of power generation setups.

Manufacturing: On manufacturing production lines, GE IS200TBAIH1CCC can measure variables like pressure, force, and displacement of machinery, providing data for process control and quality assurance.

Oil and Gas: In this sector, it can monitor wellhead pressure, pipeline flow, and tank levels, thus ensuring the safety and reliability of extraction, transportation, and storage processes.

Water and Wastewater Treatment: In case of water treatment plants, GE IS200TBAIH1CCC can be used to measure water quality parameters like pH, turbidity, and dissolved oxygen, thus allowing good control of water treatment processes.
