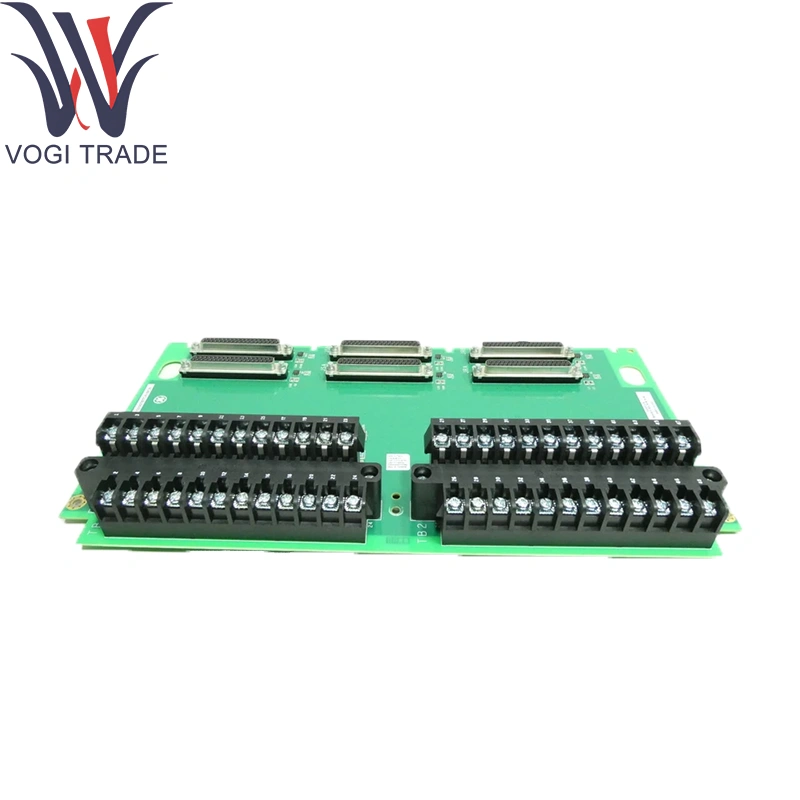

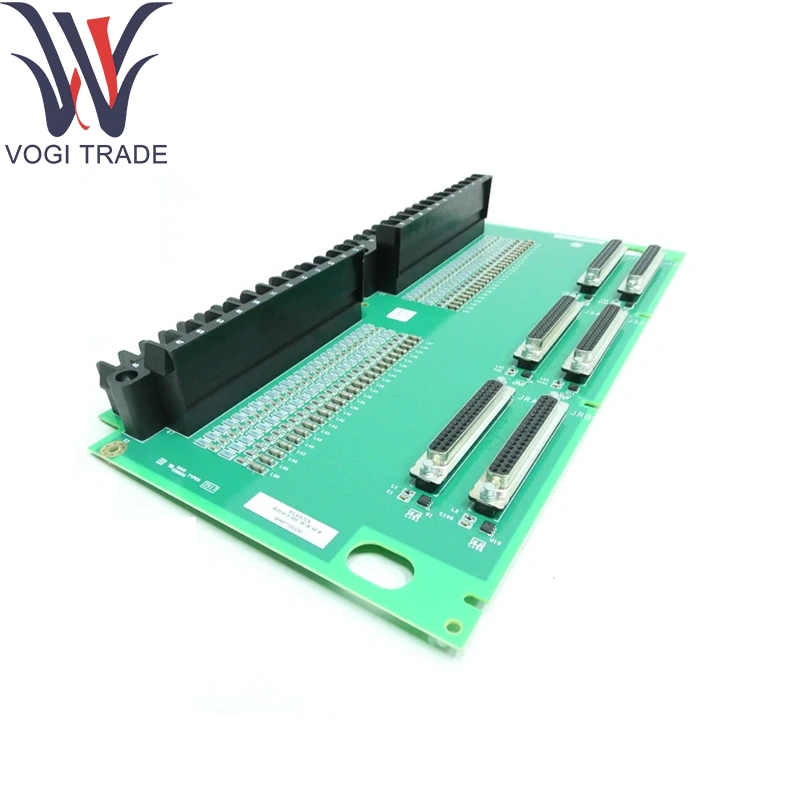

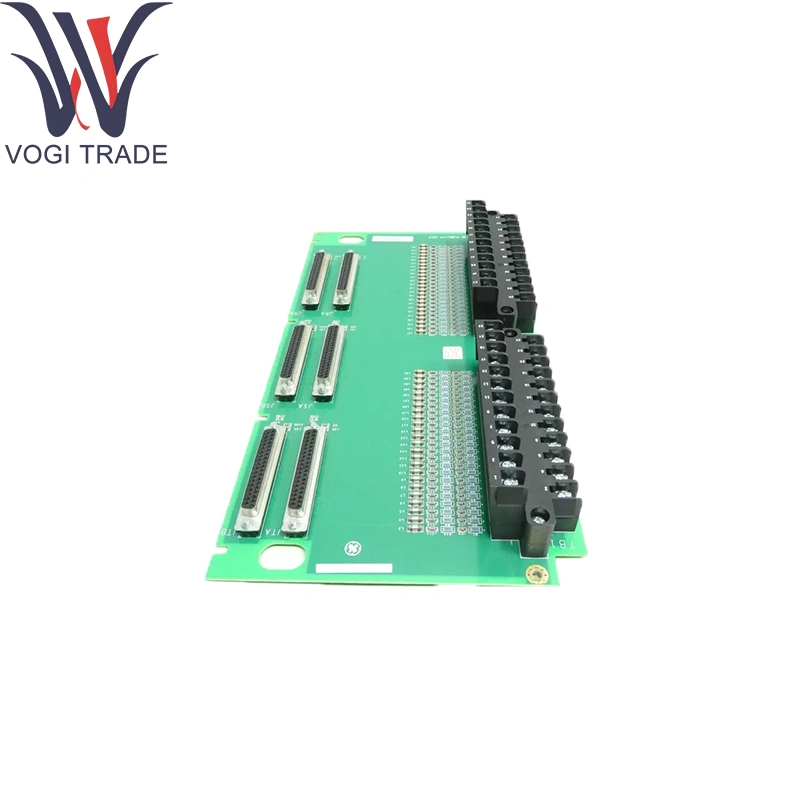

Brand: GE Description: IS200TBTCH1B Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 11 Payment Term: T/T Shipping Port: Shenzhen GE IS200TBTCH1B Thermocouple Terminal Board Used where both strain-gauge bridge transducers (e.g., pressure sensors, load cells) and thermocouples must be digitized in a single module.
|
Manufacture |
GE |
|
Model Number |
IS200TBTCH1B IS200TBTCH1BBB |
|
Ordering Number |
IS200TBTCH1B IS200TBTCH1BBB |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.36 kg |
Technical Parameters
GE IS200TBTCH1B Thermocouple Terminal Board
Measurement Range: –270 °C to +1372 °C (depending on type)
Resolution: 0.1 °C
Sampling Rate: 20 samples/sec per channel
Cold-Junction Compensation: Per-channel digital compensation
Isolation: Reinforced channel-to-channel and channel-to-ground (> 1 kV)
GE IS200TBTCH1B Filtering & Protection:
Programmable digital low-pass filter on all channels
Overvoltage clamp to ± 35 V; reverse-polarity protection
Connector: Right-angle 52-position header for pluggable terminal block
GE IS200TBTCH1B Environmental Ratings:
Operating Temp: –30 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: Up to 95 % RH, non-condensing
Product function
Conditions, digitizes, and linearizes both bridge-sensor and thermocouple signals, forwarding calibrated data over the IONet Ethernet bus to the Mark VIe CPU. Provides synchronized sampling for advanced diagnostics, protection interlocks, and performance-optimization algorithms without per-channel hardware modifications.
Core supporting modules
I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly
Controller Module: Mark VIe CPU (e.g., IS200TPROH1C)
GE IS200TBTCH1B Complementary I/O Boards:
RTD input board (IS220PRTDH1A)
Voltage & analog inputs (IS220PAICH1A)
High-speed discrete inputs (IS200SDIIH1ADB)
Extension components
Pluggable Terminal Blocks: Screw-clamp blocks keyed for field-wiring error prevention
DIN-Rail & Panel-Mount Kits: Adapter clips and brackets for 35 mm rail or panel installation
Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression
Calibration Fixtures: External zero/span calibrators for bridge and thermocouple channels
Software support
GE IS200TBTCH1B Configuration & Calibration:
Channel-type selection and excitation settings configured via GE ControlST™/ToolboxST™ templates
On-line calibration wizards for bridge gain/zero and thermocouple offsets
Diagnostics & Monitoring:
Real-time channel-health, open-circuit, and out-of-range alarms accessible in HMI and OPC-DA tags
Self-test at power-up with diagnostic flags reported through controller diagnostics
Firmware Updates: Delivered as part of Mark VIe system releases; applied via ToolboxST™
Documentation: Detailed in GE Mark VIe/VIeS I/O Installation Guide and the Bridge & Thermocouple Input Module Reference Manual
