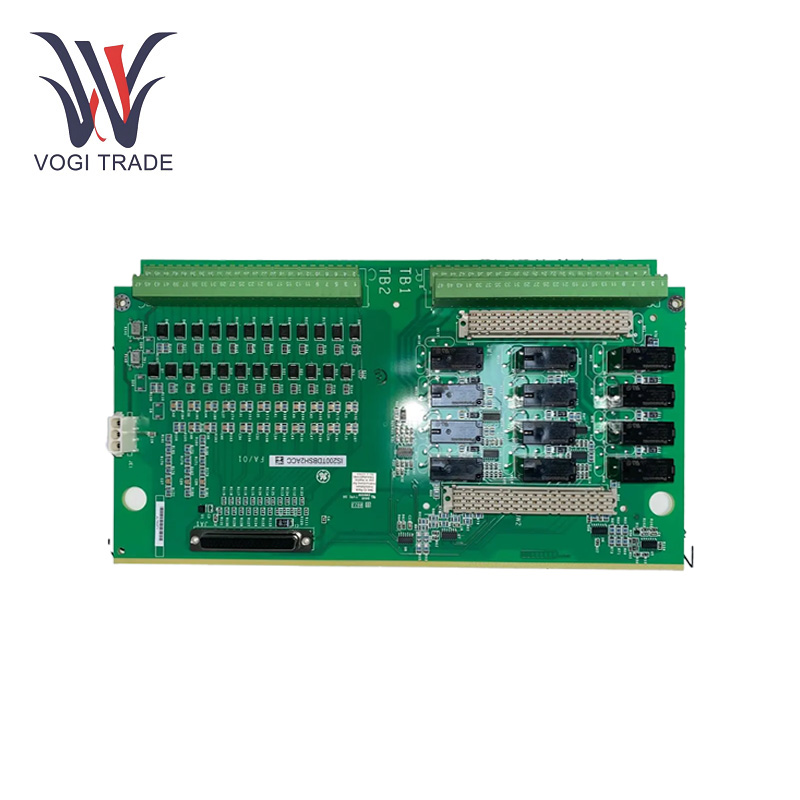

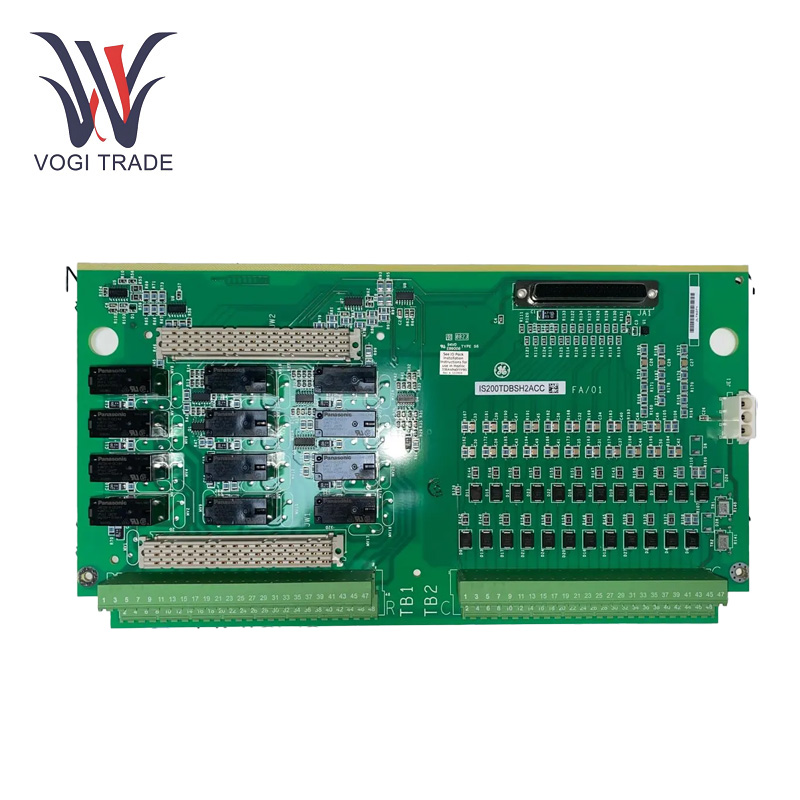

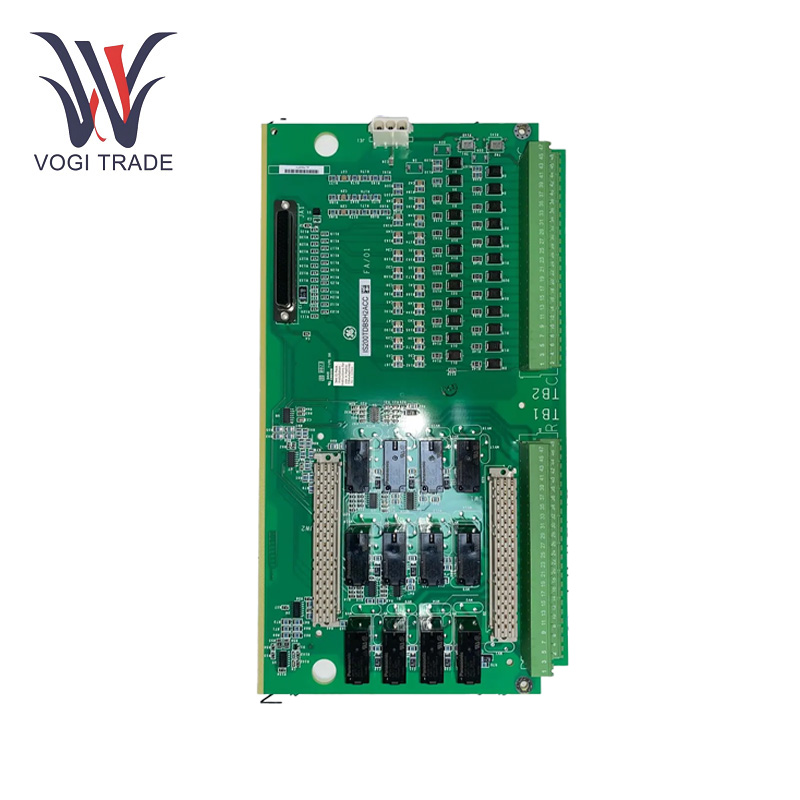

GE IS200TDBSH2AAA

Operating Parameters

AC Input Voltage: 85 VAC to 264 VAC.

DC Inputs Voltage : 100 VDC to 300 VDC.

Input Power (AC)：100 VA.

Input Power (DC)：50 W.

Inrush Current：4 Amperes peak, 250ms max.

Output Voltage 1：5 VDC.

Output Voltage 2: Relay 24 VDC.

Isolated Supply Voltage 3： 24 VDC.

Output Power 1：30 Watts.

Push Isolation (input to backplane) :1500 VAC.

Product Feature

Multi-Elastic Input Voltage: AC and DC input voltage. The scope of the alternative current enables it to quickly respond to adjustments in the supply of alternate current. Such a wide adaptability guarantees a stable and reliable performance of the device in many industrial and commercial power supply systems.

Comprehensive diagnostic function：With intelligent self-diagnostic function, GE IS200TDBSH2AAA can continuously monitor its own operating state. It can monitor irregularities in input supply voltage, temperature and internalization circuit in real-time. The methods adopted for early detection of faults are highly effective and professional; it rapidly generates an alarm signal and logs the specific fault details, enabling technicians to troubleshoot accurately and perform necessary maintenance with ease.

High-Power Output Capability: Capable of providing multiple output voltage and different power levels. Output as 5 VDC, with a generous amount of power in the order of 30 watts, high enough to power most electronic devices and circuits. This 24 VDC output also has sufficient power supply to meet the specific power needs of the relays and other components.

Installation

Rack Mounting: GE IS200TDBSH2AAA is important to first properly install and fix the mounting rack. After that, match device mounting holes with their locations on the rack and secure it using screws. The device should be installed flat and tight so should prevent vibration and loosening.

Troubleshooting

Digest power supply failure for failure to open: can check the power cable is connected OK, whether there is a voltage input terminal. If the power cable is okay, the next thing you should check is whether the fuse has blown. The information is only valid until the fuse is blown, which must be replaced by the same type of fuse.

Output Voltage Abnormality: The output voltage will be abnormal, you need to check whether the load connected to the output terminal is overloaded or short-circuited. Remove the load and test the output voltage.

Device Overheating: When GE IS200TDBSH2AAA is overheating, first check whether the ventilation is good and whether too much dust accumulates on the surface of the device, which will affect heat dissipation. When and why do you clean the device, and ensure enough space around for airflow.

Application range

Industrial Automation Systems: GE IS200TDBSH2AAA can be applied in factory automation production lines, used to supply power for various control devices, such as: PLC  DCS Doing so will help maintain the stable operation of these devices and ensure that the production process progresses normally through its reliable power supply and accurate voltage output.

Power Generation and Distribution Systems: GE IS200TDBSH2AAA is used for power supply and control systems of equipment like generators, transformers, and switch-gears in power plants and substations. It is to monitor and control the operating status of these devices, at the same time for their protection and control circuits to provide a stable power supply, for ensuring the safety and reliability of power generation and distribution play a critical role.

Communication Equipment Rooms: In communication base stations and data centers, it is used to power communication equipment such as servers, routers, and switches. Electricity stability and power supply stability are the key guarantees for the continuous operation of the communication equipment and the normal transmission of any data and signals.
