Brand: GE Description: IS200TPROH1C Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 13 Payment Term: T/T Shipping Port: Shenzhen GE IS200TPROH1C Mounts in the I/O- pack carrier slot to serve as the primary controller interface for GE Speedtronic Mark VIe and VIeS systems.
|
Manufacture |
GE |
|
Model Number |
IS200TPROH1C |
|
Ordering Number |
IS200TPROH1C |
|
Catalog |
Mark VI |
|
Description |

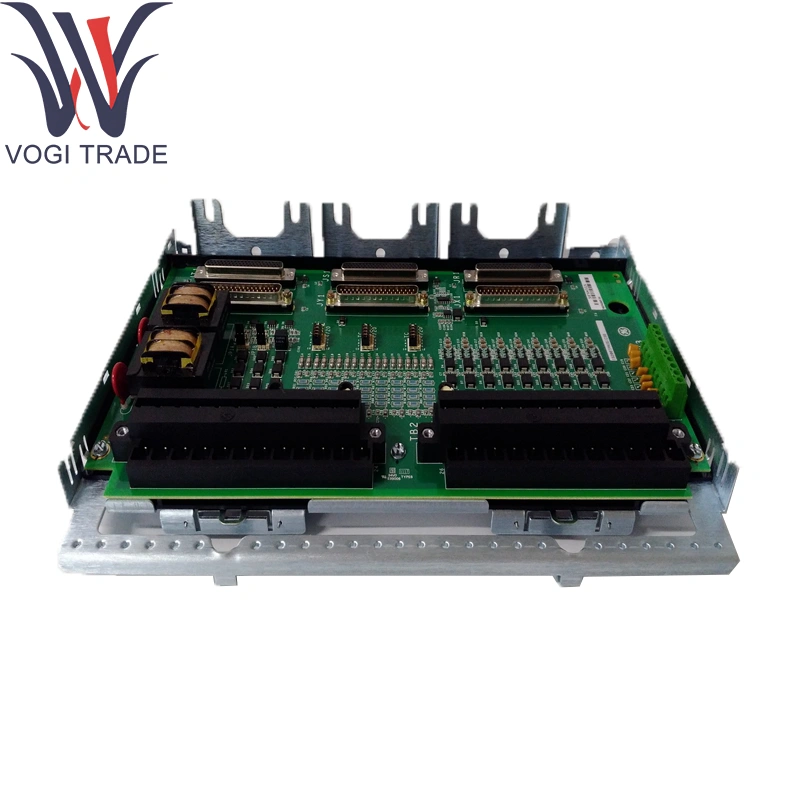

GE IS200TPROH1C Emergency Protection Terminal board |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
233 × 160 × 50 mm |
|
Weight |
0.39 kg |
Technical Parameters
Backplane Interface:
Two 50- pin DIN- style connectors for power and I/O- pack link
Front- Panel Connectors:
2 × RJ- 45 for IONet Ethernet (10/100Base- T)
1 × DB- 9 RS- 232 for engineering/console port
1 × USB Type- A for firmware upgrade or local HMI
Status Indicators: LEDs for Power, Run, Net 1/Net 2 link/activity, Fault
Power Consumption: 5 V DC @ 500 mA max (supplied via backplane)
Environmental:
Operating Temp: –20 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non- condensing
These specifications define GE IS200TPROH1C.
Product function
GE IS200TPROH1C serves as the central processing and communication gateway for Mark VIe control networks. Hosts the real- time control application, provides IONet connectivity to I/O packs, and offers engineering access for configuration, diagnostics, and firmware management.
Core supporting modules
Power/Carrier Module: IS42xPSCAH1B – supplies power and I/O- pack backplane links
I/O Packs: Analog, discrete, relay, safety, and specialty I/O modules (e.g., IS220PAICH1A, IS200TICIH2A, IS400TRLYS1B)
Safety Controller: IS220YSILS1B for SIL-rated safety loops in VIeS systems
This ecosystem centers around GE IS200TPROH1C.
Extension components
Engineering Cable Kit: RJ- 45 and DB- 9 cables for field configuration and diagnostics
Console Adapter: USB- to- Ethernet/serial dongle for local firmware updates
DIN- Rail Adapter: Optional clips for mounting the terminal board in non- VME racks
Redundancy Kit: Dual- CPU carrier and fail- over switching hardware
Extensions designed for GE IS200TPROH1C.
Software support
Configuration Tool: GE ToolboxST™ for application loading, parameter tuning, and diagnostics
Firmware Management: Via ToolboxST™ or USB port; supports rollback and CRC checks
Diagnostics & Monitoring:
Real- time health and fault logs accessible through HMI or OPC- DA
Network- link status and CPU performance counters
Documentation: Covered in the GE Mark VIe/VIeS System Manuals (installation, programming, and maintenance guides)
All software capabilities apply to GE IS200TPROH1C.
