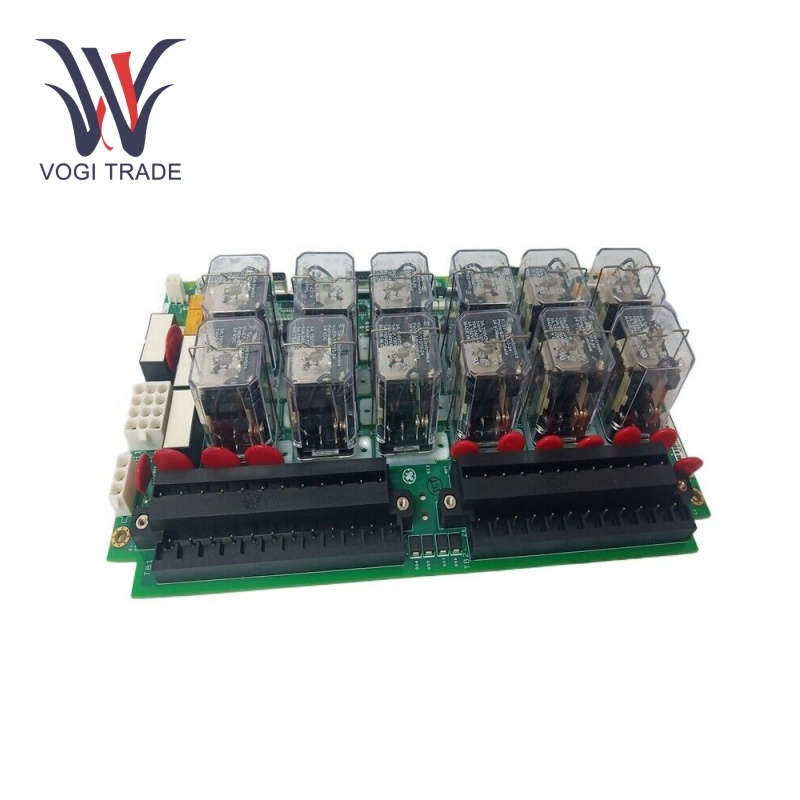

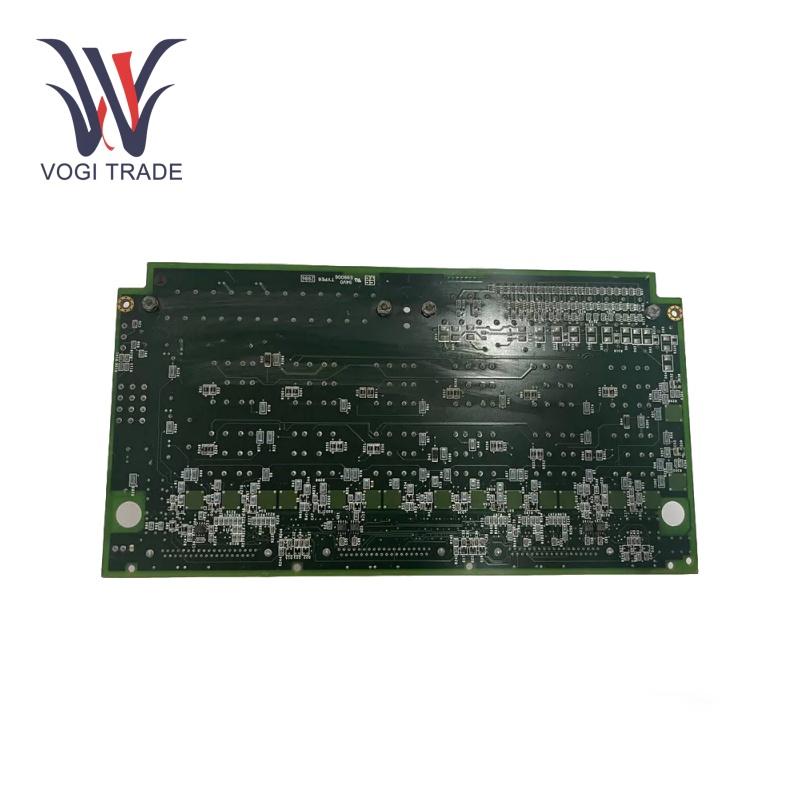

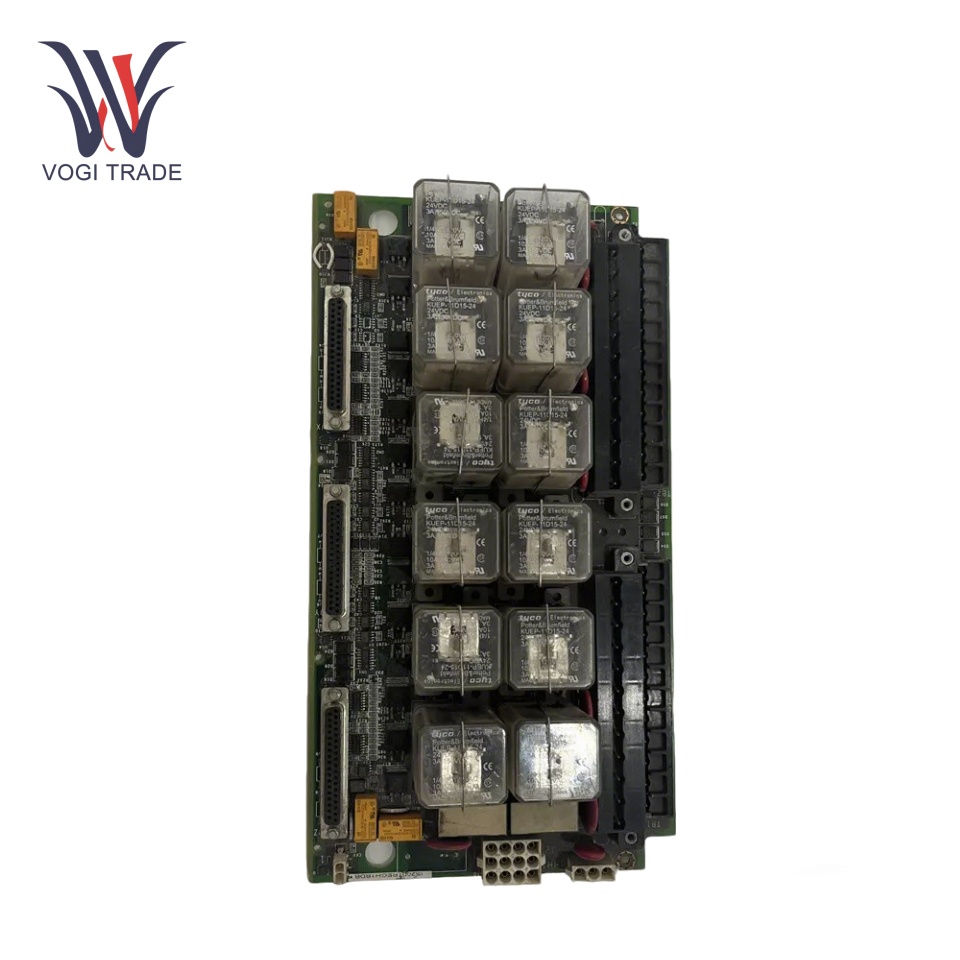

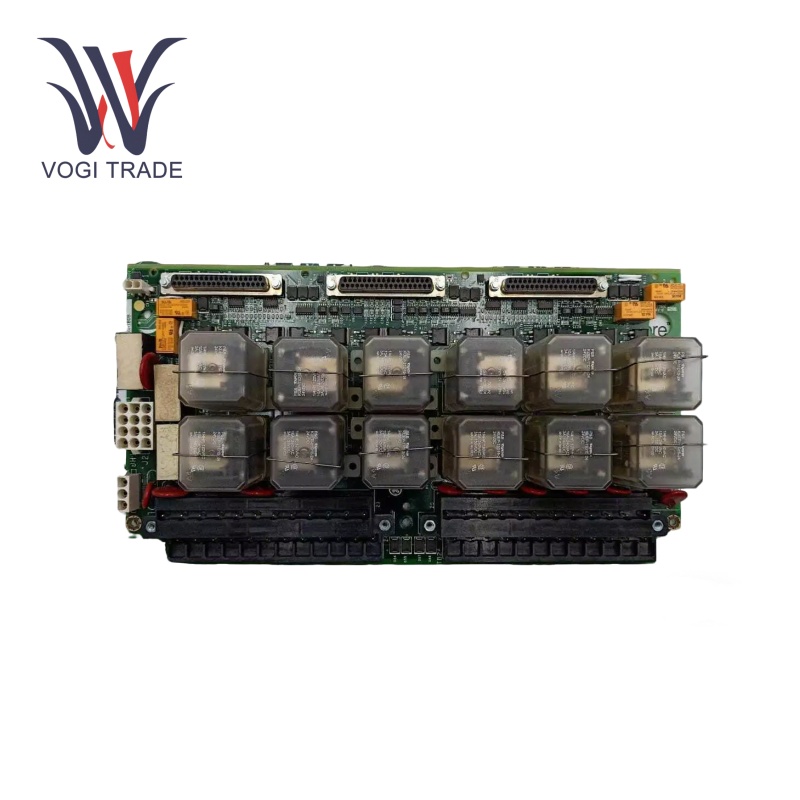

GE IS200TREGH1BDB

Operating Parameters

Power Supply Voltage: Operates at a nominal 24 VDC input voltage.

Operating Temperature Range: -20°C and +60°C.

Input and Output Channels: 16 input channels and 16 output channels.

Communication Protocols: Compatible with standard industrial communication protocols such as Modbus RTU and Ethernet.

Processing Speed: High-speed processing capabilities ensure real-time control and monitoring of turbine operations.

Product Features

Emergency Trip and Protection:The GE IS200TREGH1BDB also provides emergency trip and protection functionality. Any abnormal condition in industrial systems, especially in turbines, can pose a severe safety hazard and equipment damage. This module that can monitor parameters related to the turbine operation continuously. It can also perform an emergency trip quickly when it detects anomalies, such as over - speed, over - temperature, and abnormal vibrations. This causes the turbine to halt operation to avoid damage and protect the entirety of the system.

Data Processing and Monitoring: The GE IS200TREGH1BDB is so good at data processing and monitoring. It can interface with multiple sensors placed on the turbine It gathers real - time data from these sensors and calculates and analyses as needed.

Seamless System Integration: GE IS200TREGH1BDB is designed to be easily integrated into existing systems, ensuring a smooth incorporation of its functions. GE IS200TREGH1BDB is able to interact with other components in the industrial control system, including the main control unit and human - machine interface system. This allows an operator to monitor the status of the turbine as well as the status of the emergency trip system via the HMI. It ensures reliable data transfer between different parts of the system, allowing for efficient operation and control.

Secure signal termination:Provides secure handshake points for all input and output signals to ensure accurate data transmission and system responsiveness.

System Protection: Tracking operating parameters, taking action to protect the system when fault conditions are detected.

Application range

Gas and Steam Turbine Control System: GE IS200TREGH1BDB guarantees accurate monitoring and control, thus enhancing both performance and safety.

Power Generation Facilities: A significant component of the supervisory control and data acquisition systems used in power generation, enabling efficient and reliable energy production.

Automation: Used in automation systems with rugged signal termination and protection requirements.

Troubleshooting

Physical Inspection: Inspect the board visually for any signs of wear or damage, including heat damage or breaks in the connections, and repair anything you find.

Signal Verification: Use appropriate testing equipment to check that input and the output signals are within expected limits and identify any deviations that could indicate problems underlying.

Viability Check: Ensure that all terminal connections are tight and devoid of corrosion that can hinder signal transmission.

Care of the Environment: Minimise stress on the components on the board by keeping them within the normal running temperature and humidity bounds.
