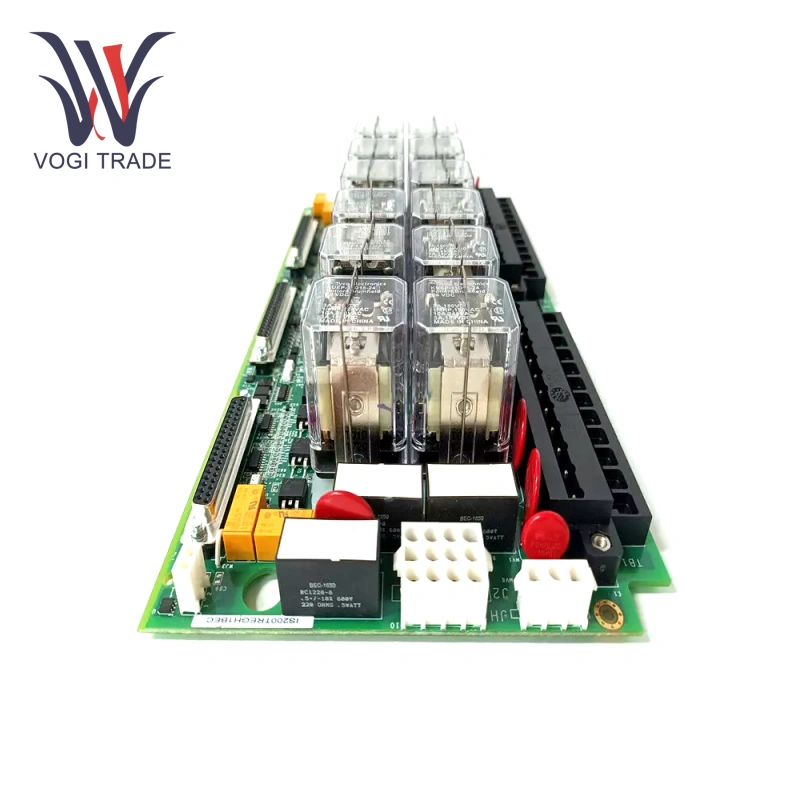

Brand: GE Description: Emergency trip terminal board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen GE IS200TREGH1BEC is designed for emergency overspeed protection, which can quickly trigger shutdown when an abnormality occurs in the turbine to prevent equipment damage.
|
Manufacture |
GE |
|
Model Number |
IS200TREGH1BEC |
|
Ordering Number |
IS200TREGH1BEC |
|
Catalog |
GE Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
9032899099 |
|
Dimension |
20*10*3CM |
|
Packing Dimension |
22*12*5CM |
|
Weight |
0.5kg |
Technical Parameters
Number of relays: 12 (9 for trip solenoid valve control, 3 for signal voting).
Operating voltage: 28 VDC (powered by VPRO board).
Temperature range: -40°C to 70°C (-40°F to 158°F).
Protection level: IP30.
Interface type: D-type shell connector (3 female ports).
Core Functions
Emergency overspeed protection: GE IS200TREGH1BEC quickly triggers tripping and cuts off fuel supply when the turbine speed is abnormal to prevent equipment damage.
Independent control mechanism: Separated from the main control system to ensure that protection actions can still be performed when the main system fails.
Trip coil control: Accurate emergency shutdown operation is achieved by controlling the positive/negative trip coil.
Typical Application Scenarios
Gas turbine and steam turbine protection: GE IS200TREGH1BEC is mainly used for emergency shutdown protection of gas turbines (such as combined cycle power plants) and steam turbines in power plants.
Industrial equipment safety system: GE IS200TREGH1BEC is used to drive turbines of large industrial equipment (such as compressors and pumps) to ensure the safe operation of equipment.
Power system redundancy control: As part of the Mark VI series redundant control architecture, it improves system reliability.
