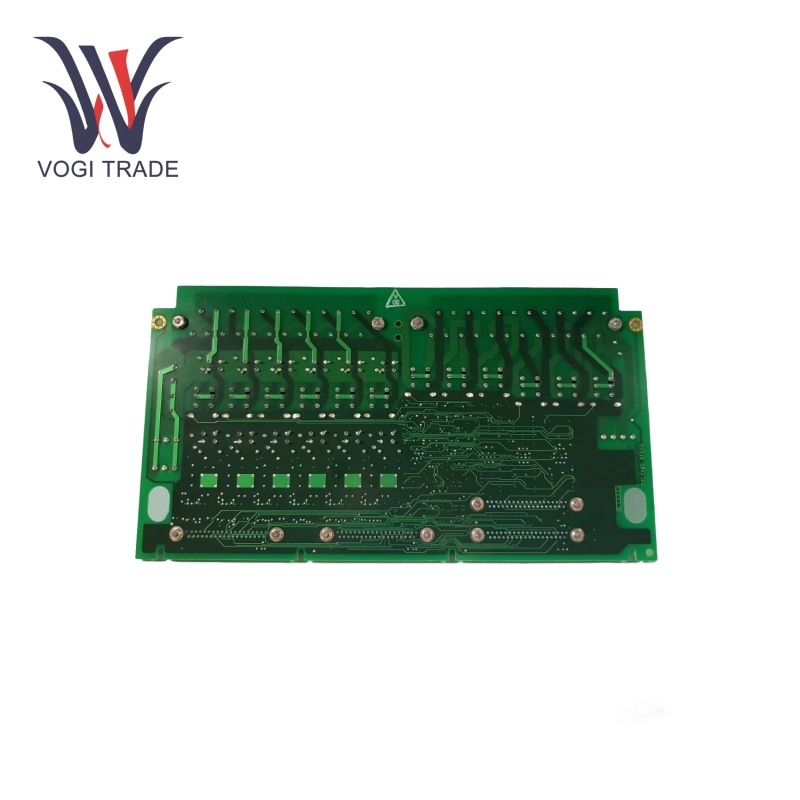

Brand: GE Description: Relay Output Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS200TRLYH1B is a high-performance Relay Output Terminal Board for industrial automation. It works in punishing environments to provide accurate and accurate control, and is applicable to power age and oil and gas, and manufacturing.
|
Manufacture |
GE |
|
Model Number |
IS200TRLYH1B |
|
Ordering Number |
IS200TRLYH1B |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
33cm*17.8cm*5.5cm |
|
Packing Dimension |
35cm*20cm*8cm |
|
Weight |
0.5kg |
Technical Parameter
Rated Voltage：Nominal 125 V DC or 24 V DC, nominal 115/230 V AC.
Insulation Resistance：≥100 MΩ.
Coil-to-Contact Voltage：1500 V AC (1 minute).
Inter-Contact Voltage：500 V AC (1 minute).
Number of Relays：12 Form C relays.
Response Time：25 ms for both turn-on and turn-off.
Power Distribution：6 fused branches, 1 special unfused.
Operating Temperature：-10°C to +55°C.
Storage Temperature：-40°C to +85°C.
Relative Humidity：5% - 95% RH.

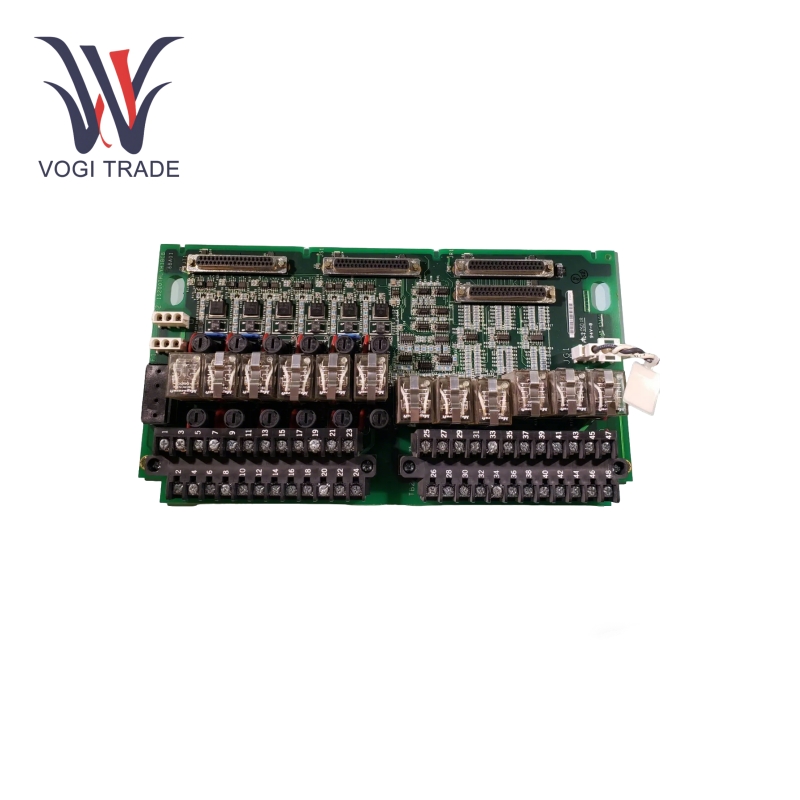

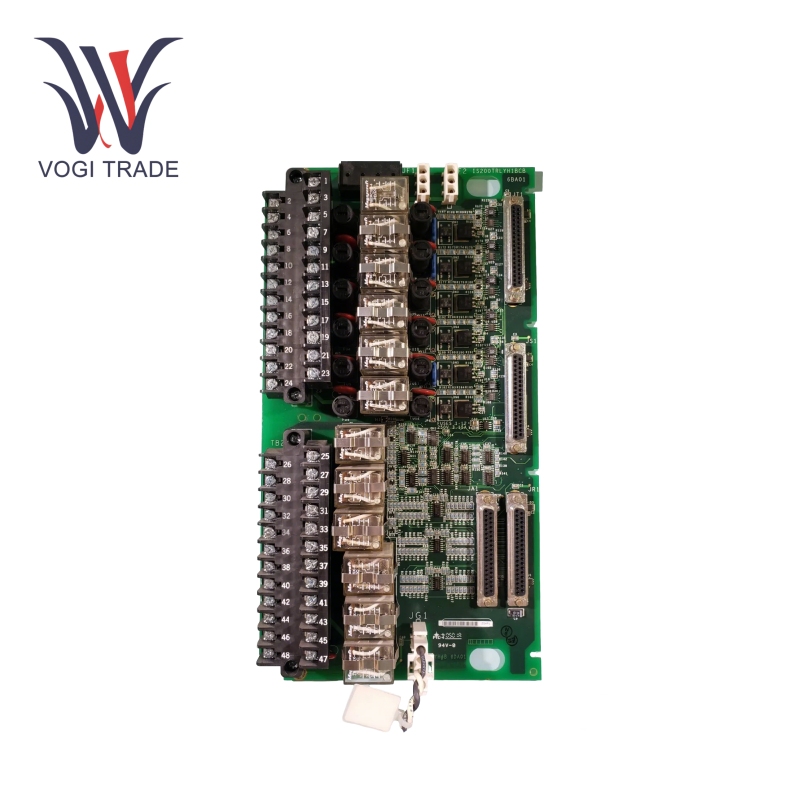

Terminal Blocks：2 large black terminal blocks with 24 metal .terminals each, 48 terminals in total.
Connector Ports：4, with 3 aligned vertically and 1 parallel to the bottom one.
Functional Characteristics
Quick Swapping: The speed and precision of GE IS200TRLYH1B allows it to be utilized in time-sensitive applications.
Wide Compatibility: The module can be easily integrated into various industrial control systems.
Durability: GE IS200TRLYH1B is designed to endure harsh conditions, such as extreme temperatures, vibrations, and electrical noise, providing reliable performance even in tough environments.
Solenoid Voltage Monitoring：GE IS200TRLYH1B can monitors the solenoid excitation voltage downstream of the fuses and latches an alarm if it drops below 12 V DC25.
Application Areas
Power Generation Industry: It is used in power plant turbine control systems to control the opening and closing of valves, the operation of pumps and other equipment, and to ensure that the power generation process runs in a stable manner.
Petrochemical Industry：GE IS200TRLYH1B is used in petrochemical production lines to control the startup and shutdown of various motors, pumps and solenoid valves, and monitor and control the process flow and reaction conditions.
Metallurgical Industry：In the metallurgical equipment like blast furnaces, rolling mills, control the mechanical equipment movement, the temperature and pressure adjustment, improve production efficiency and product quality.
Water Treatment Industry：In water treatment plants, GE IS200TRLYH1B can be used to control the operation of water pumps, valves and other equipment, and realize the automatic control of water treatment process.
Industrial Automation：Huge amounts of usage in the various industrial automation production line, it controls conveyor belt, manipulator and other equipment operation, achieve the automation and intelligentization of the production process.
