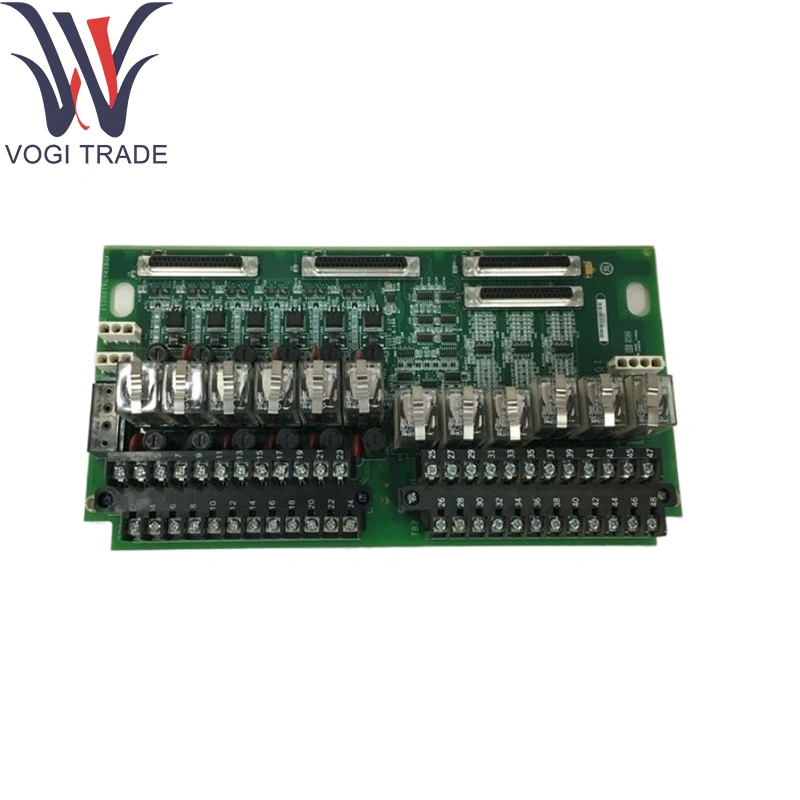

GE IS200TTURH1C Terminal Turbine Board

GE IS200TTURH1C Terminal Turbine Board Technical Parameters

Connector Interface:

2 × 50-pin DIN-style I/O backplane connectors

Pluggable field-wiring terminal blocks (screw-clamp or spring type)

Circuitry: Passive breakout—no active components or power regulation

Terminal Block Ratings:

Voltage: up to 300 V AC/DC

Current: up to 10 A per terminal

Environmental:

Operating Temp: –40 °C to +85 °C

Storage Temp: –55 °C to +100 °C

Humidity: up to 95 % RH, non-condensing

Coating: IS200TTURH1CCC features a Class C conformal coating for extra resistance to moisture, salt spray, and chemical contaminants

Product function

Provides a standardized, low-profile interface between the Mark VIe I/O-pack backplane and field wiring

Organizes and labels individual signal, power, and communication lines for simplified installation and maintenance

Enables rapid module replacement by allowing terminal blocks to be unplugged en masse

Core supporting modules

I/O Pack Carriers: IS42xPSCAH1B series power/carrier assemblies

Controller Modules: Mark VIe CPU and terminal modules (e.g., IS200TPROH1C)

I/O Boards: Any combination of analog, discrete, relay, safety, or specialty I/O modules

Extension components

Terminal-Block Options:

Screw-clamp blocks, spring-clamp blocks, or barrier-type blocks, keyed by function

DIN-Rail Adapter Kits: Clips and brackets to secure the TTUR board to 35 mm rails

Cable Management Accessories: Wire-duct and strain-relief clamps for bundled field wiring

Conformal-Coating Kits: Field-service kits for applying or renewing coating on standard boards

Software support

Configuration: None—completely passive hardware; no firmware or software drivers

Diagnostics: Module ID checked at system power-up; incorrect or missing module flags logged in controller diagnostics

Documentation: Described in the GE Mark VIe I/O Installation Guide and Terminal-Board Reference Manual
