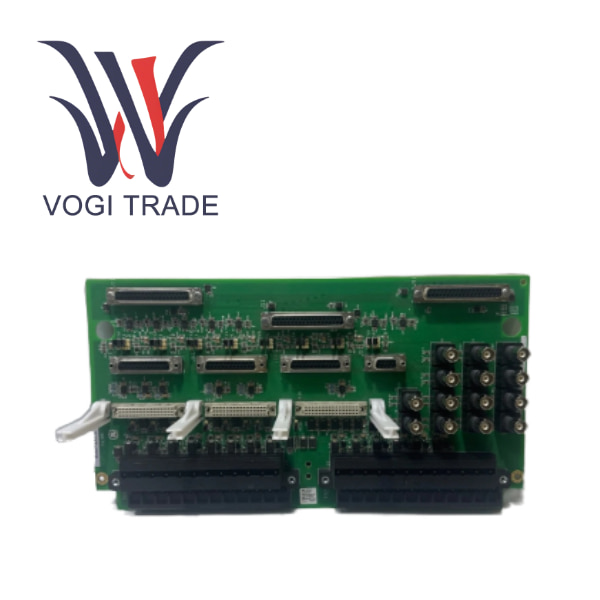

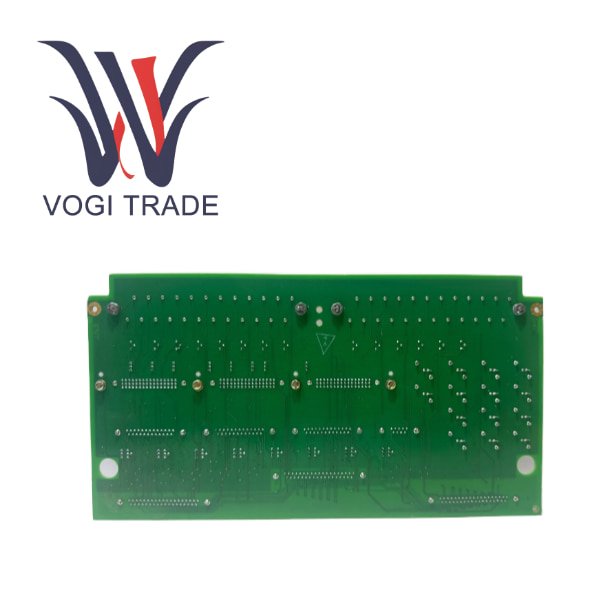

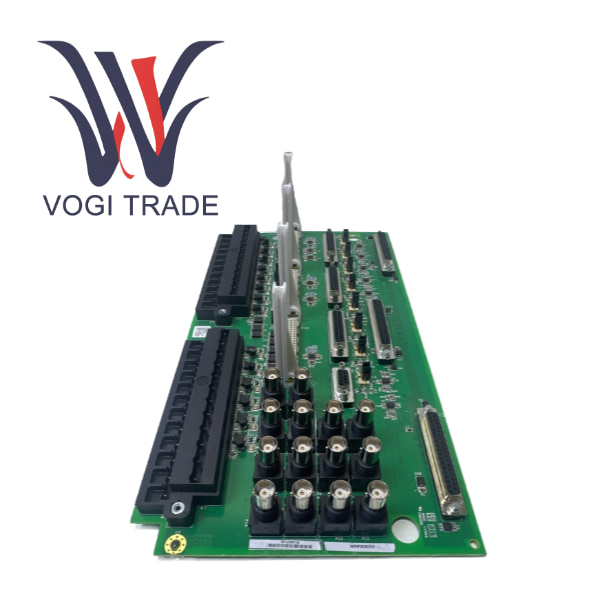

GE IS200TVBAH2ABC

Product Overview

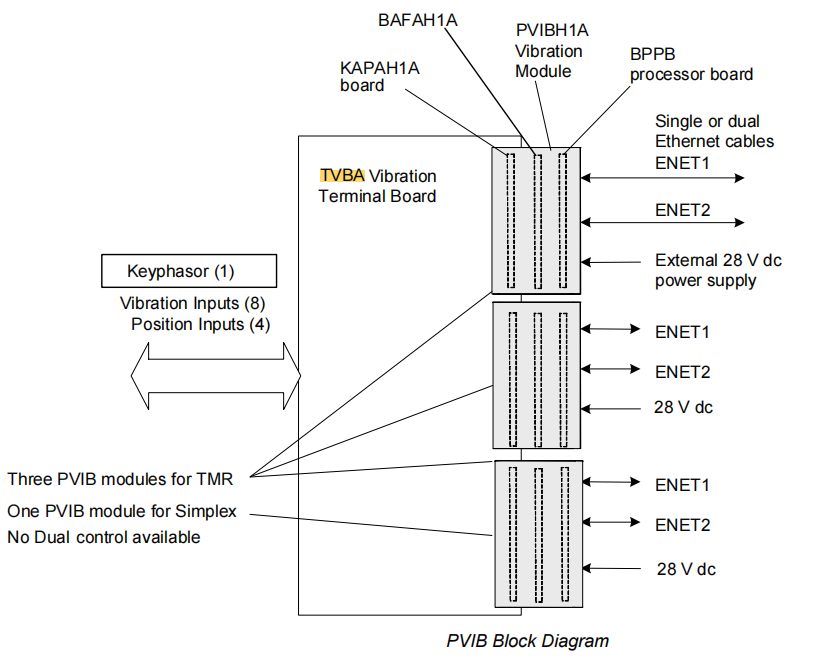

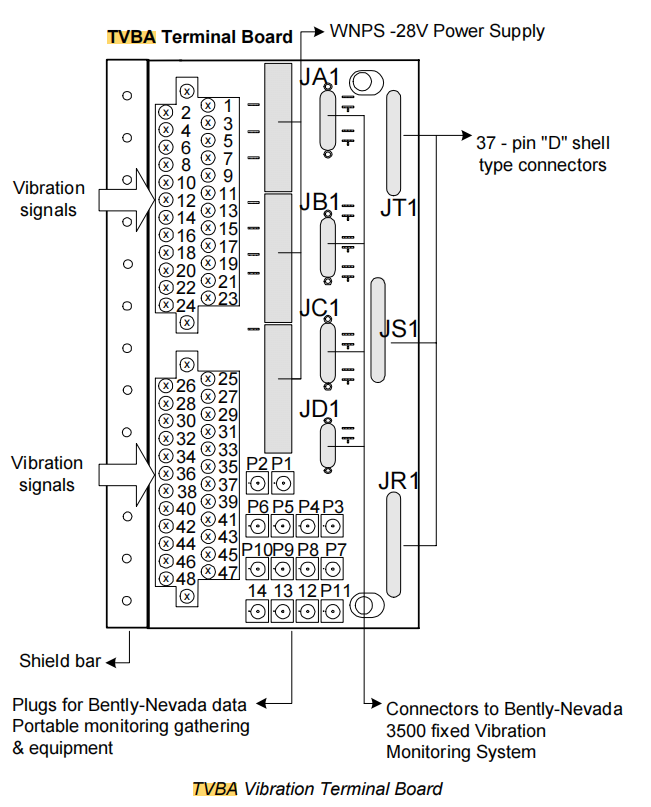

The GE IS200TVBAH2ABC is a high-performance, high-density dynamic signal input terminal board specially developed by General Electric for Mark VIe and Mark VIeS turbines and process control systems. This board is a key component of the Mark VIe decentralized I/O architecture and is specifically designed for the condition monitoring and protection of rotating machinery. Its core function is to provide a safe, reliable, and low-noise physical wiring interface for low-level, wide-band analog signals from precision sensors such as eddy current sensors, accelerometers, and seismic detectors. The IS200TVBAH2ABC itself is an active or terminal hub with a simple signal conditioning circuit. The on-site sensor signals are connected to this terminal board via shielded cables, and then transmitted through a dedicated high-density ribbon cable to the VVIB (Vibration Input) or SAMB (Acoustic Monitoring) I/O processor module installed on the I/O rack of the control cabinet. This design ensures that the weak dynamic signals are not disturbed during transmission, laying a solid hardware foundation for achieving precise mechanical health assessment, early fault warning, and reliable over-limit protection.

Application industry scope

IS200TVBAH2ABC is mainly applied in industries that have large and critical rotating equipment and adopt GE Mark VIe/VIeS control systems.

Electric power industry

Monitoring of shaft vibration, bearing vibration, and axial displacement for steam turbines, gas turbines, generators, and feedwater pumps.

Petroleum and natural gas

Comprehensive mechanical condition monitoring for long-distance pipeline compressors, LNG plant refrigeration compressors, and turbine-driven equipment on offshore platforms.

Chemical and petrochemical industry

Monitoring of key turbine machinery such as large reaction vessels, synthesis gas compressors, and cracking gas compressors.

Other heavy industries

Monitoring of large fans, pumps, and main drives of rolling mills, etc.

Product updates and technological advancements

Early systems typically relied on the independent Bently Nevada 3500 system for vibration monitoring and protection, interacting with the DCS through hard wiring or communication, resulting in information silos and complex maintenance issues.

In the Mark VIe era, an integrated solution of VVIB/SAMB + TVBA was introduced, integrating the basic protection functions within the DCS, achieving integration of control and protection. This was a significant advancement in engineering practice.

Current and future

The sampling rate, resolution, and channel density of higher-performance I/O modules are constantly improving.

Future I/O modules at the edge computing level may perform preliminary FFT or feature extraction locally, only uploading key results, thereby reducing the burden on the network and servers.

Cloud and AI, The original vibration data can be uploaded to the cloud through a secure gateway, and using AI and ML algorithms for more accurate fault prediction and health management.

Product Specifications and Parameters

Product Series               GE Mark VIe / Mark VIeS I/O System

Module Type                 Vibration/Displacement/Acceleration Input Terminal Board (Vibration/Displacement/Acceleration Input Terminal Board)

Model                          IS200TVBAH2ABC

Hardware Revision        H2A

Channels and Signal Specifications

Input Channel Count     8 channels

Supported Sensor Types

Eddy Current Sensor        Used for measuring shaft vibration, axial displacement, differential expansion, eccentricity, and keyphasor. Typically outputs -2V to -18V DC with 0-10Vpp AC vibration signal superimposed.

Accelerometer                 Used for measuring absolute vibration of bearing seat or casing. Can support ICP/IEPE or charge output type accelerometers.

Seismic Sensor                Used for low-frequency vibration monitoring.

Excitation Power Supply    For ICP/IEPE accelerometers, the terminal board or the accompanying VVIB module will provide +24V DC, 2-10mA constant current source excitation. For eddy current sensors, the excitation is usually provided by the preamplifier (Proximitor), and the TVBA board only receives its output signal.

Signal Bandwidth             Supports wideband signals, with typical ranges from 0 Hz to 10 kHz or even higher to meet the monitoring requirements of high-speed rotating machinery.
