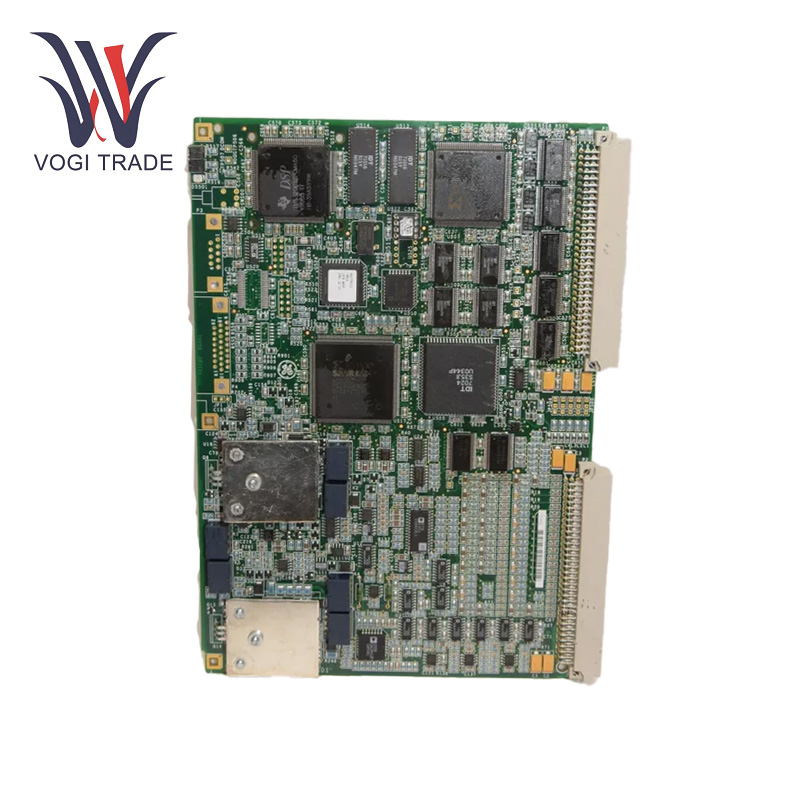

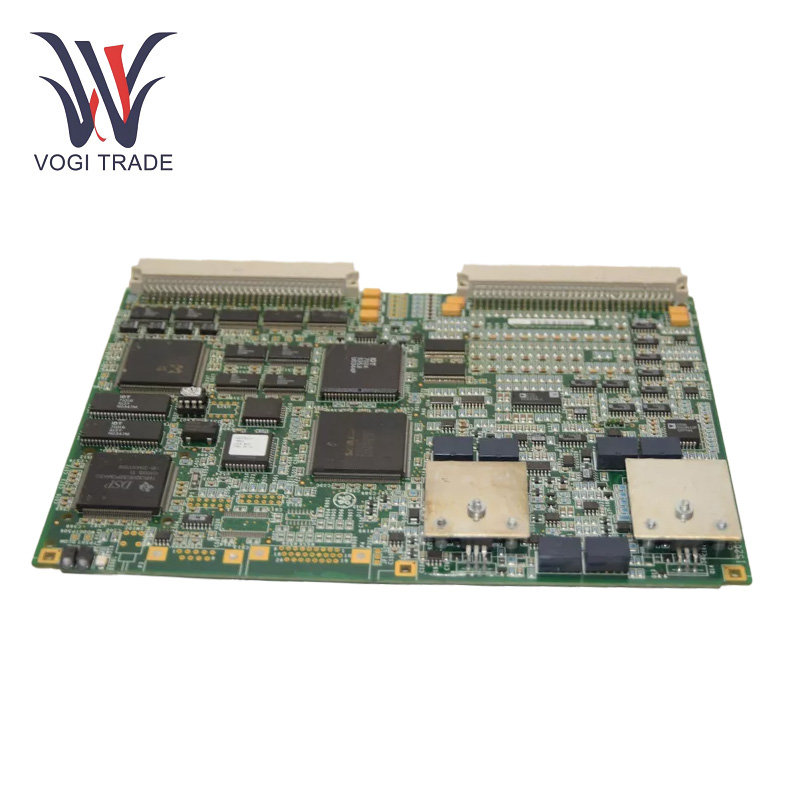

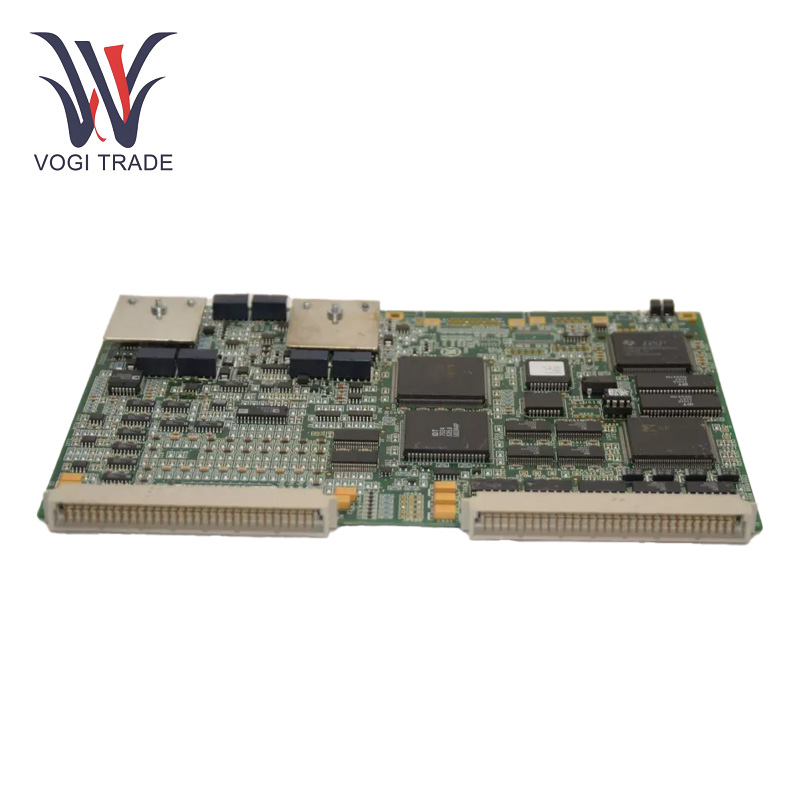

Brand: GE Description: Analog Input Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 80 Payment Term: T/T Shipping Port: ShenZhen GE IS200VAICH1DAA can detect not only failed I/O chips but also compressor stalls and a great many other faults. In high-risk industrial environments, it offers added reliability and redundancy by sending analog inputs to up to three control racks at the same time.
|
Manufacture |
GE |
|
Model Number |
IS200VAICH1DAA |
|
Ordering Number |
IS200VAICH1DAA |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*35cm*5cm |
|
Packing Dimension |
42cm*37cm*7cm |
|
Weight |
1.5kg |
Technical Parameter
Analog Inputs: 20 channels.
Analog Outputs: 4 channels.
Analog Output Range: 4 - 20 mA.
Rated Voltage: 24V DC.
Output Ports: JT1, JS1, JR1.
Terminal Strips: 2 multiple - pin terminal strips.
Detectable Fault Types: Failed I/O chip, analog inputs out of limits, suicide relay status, 20/200 mA scaling relay status, compressor stall, etc.
Functional Characteristics
Analog-to-Digital Conversion: GE IS200VAICH1DAA can convert analog signals into digital numbers and send them to VCMI board via VME backplane. Users are not yet authenticated to access their data until you confirm the access of output digital values to analog currents and drive it to the circuit.
Fault detection: GE IS200VAICH1DAA can detect the faults in the Mark VI system, such as the failure of the I/O chip/analog inputs, output of limits, and also suicide relays and 20/200 mA scaling relays. It is also capable of detecting compressor stalls.
General Applications: Suitable for use in simplex and TMR system applications. In a TMR system, GE IS200VAICH1DAA forward analog inputs to three control racks from the JR1, JS1, and JT1 connectors.
Application Areas
Gas Turbines: It is used for monitoring and controlling key parameters (temperature, pressure, flow rate) in gas turbines to ensure stable operation and high power generation efficiency. It can also sense compressor stalls to protect some equipment.
Conveyor systems: GE IS200VAICH1DAA can control the speed and position of conveyor belts, achieve precise operation of the conveyor system, and improve production efficiency and logistics transportation accuracy.
Iron and Steel Smelting: GE IS200VAICH1DAA supervises and controls parameters like temperature, pressure, and material level in blast furnaces and converters and helps to enhance smelting processes, improve the quality of metals, and boost production efficiency.
Rolling Process：It can control the speed, pressure and temperature of the rolling mill to achieve precise control of the rolling process, and improve the dimensional accuracy and surface quality of the rolled products.
Refining Equipment: GE IS200VAICH1DAA is used in refining equipment like distillation towers and cracking furnaces to control process parameters in real time, such as temperature, pressure, and liquid level, thereby optimizing the refining process and improving product quality.
