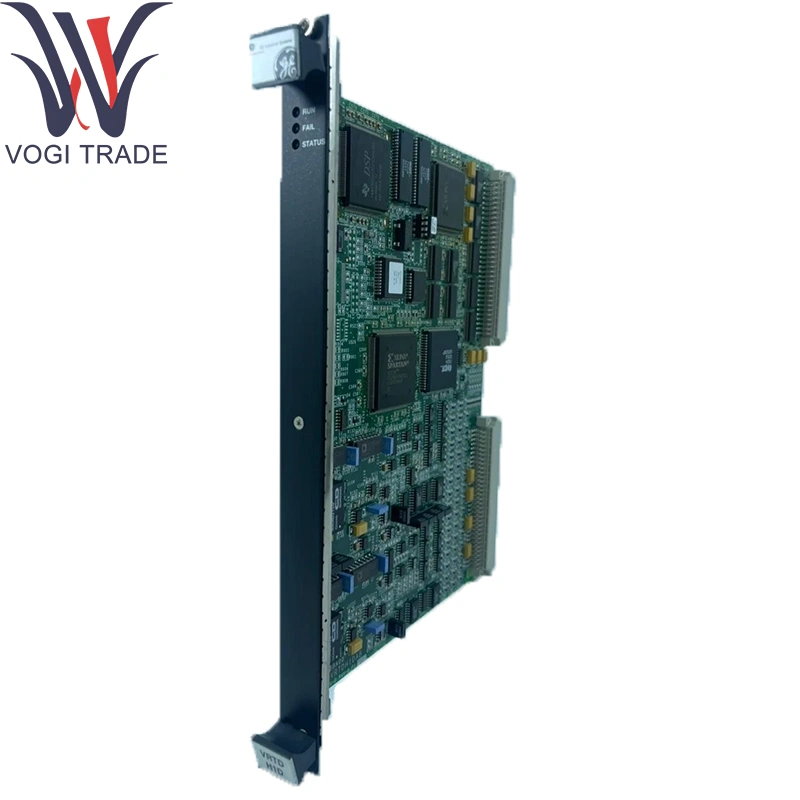

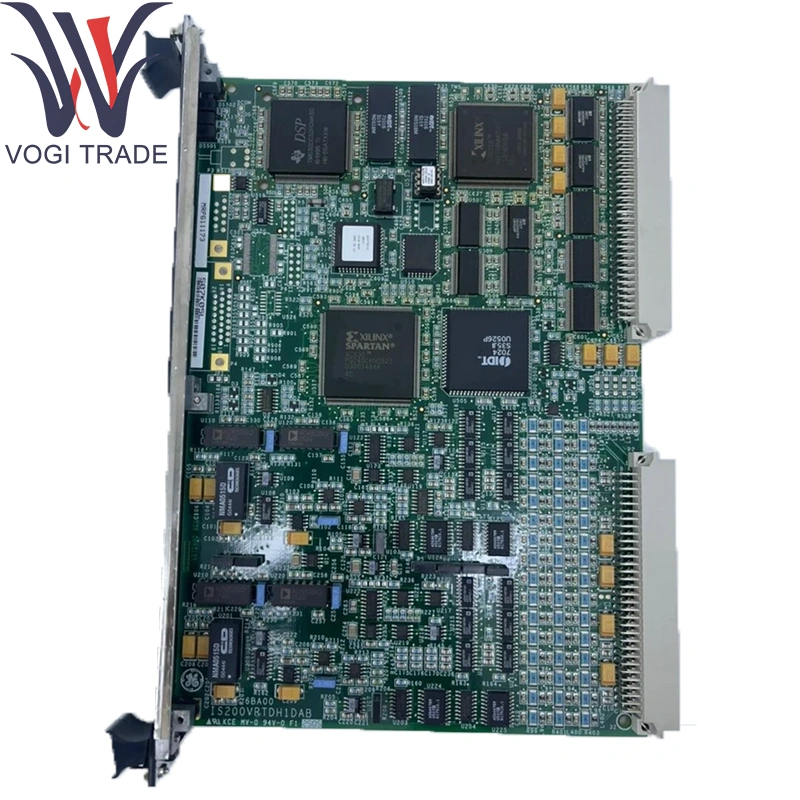

GE IS200VRTDH1D

Technical Parameters

Channels:

4 × vibration inputs (IEPE/±10 V accelerometer signals)

4 × RTD inputs (PT100/PT1000, 2-/3-/4-wire)

Vibration Inputs:

Signal Type: Built- in constant current excitation (4 mA) for IEPE sensors, or direct ±10 V inputs

Bandwidth: 0.1 Hz to 5 kHz

Resolution: 24 bit ΔΣ ADC

Sampling Rate: up to 10 kHz per channel, synchronized

Input Protection: ± 35 V clamp, reverse- polarity protection

RTD Inputs:

Supported Types: PT100 (IEC-751) standard; PT1000 optionally supported via engineering template

Accuracy: ± 0.1 °C at 0 °C to ± 0.2 °C full- scale

Resolution: 0.01 °C

Sampling Rate: 10 samples/sec per channel

Cold- Junction Compensation: Not required; direct resistance measurement

Isolation: Reinforced channel- to- channel and channel- to- ground (> 1 kV) for all channels

Environmental:

Operating Temp: –30 °C to +65 °C

Storage Temp: –40 °C to +85 °C

Humidity: up to 95 % RH, non- condensing

These parameters apply to GE IS200VRTDH1D.

Product function

GE IS200VRTDH1D integrates high- speed vibration and temperature diagnostics into a single terminal board. The module conditions, digitizes, and time- stamps accelerometer signals and RTD resistances, forwarding real-time health and performance data over the IONet Ethernet bus to the Mark VIe CPU for advanced vibration- monitoring, protection trips, and thermal-trend analysis.

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly supplying backplane power and IONet connections

Controller Module: Mark VIe CPU (e.g., IS200TPROH1C) executing vibration-based protection logic and thermal controls

Complementary I/O Boards:

High- speed discrete inputs (IS200SDIIH1ADB) for event capture

Solenoid/relay drivers (IS200SRTDH2A) for trip actuation

Analog- pressure and current- loop inputs (IS220PAICH1A)

GE IS200VRTDH1D operates within this ecosystem.

Extension components

Pluggable Terminal Blocks: 34-way screw-clamp blocks with shield-termination posts for accelerometer shields

DIN- Rail & Panel Mount Kits: Adapter clips and angle brackets for 35 mm rail or panel installation

Shielding Accessories: Cable-shield clamps and ferrite beads for EMI suppression on vibration cabling

Calibration Fixtures: Accelerometer signal simulators and RTD resistance boxes for on- site verification

Conformal-Coating Service Kit (for 1DAB): Field-service kit for renewing moisture- resistant coating

All accessories support GE IS200VRTDH1D.

Software support

Configuration & Calibration:

Channel- mode (IEPE vs. ±10 V) and RTD wiring selected via GE ControlST™/ToolboxST™ templates

On- line calibration wizards for accelerometer sensitivity and RTD span adjustments

Diagnostics & Monitoring:

Real- time vibration amplitude, frequency- domain trigger flags, and RTD-health status available in HMI and OPC-DA tags

Self- test on power- up with diagnostic flags in controller logs

Firmware Updates: Delivered as part of Mark VIe system releases; applied via ToolboxST™

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and the Vibration & RTD Input Module Reference Manual

Software tools configure GE IS200VRTDH1D.
