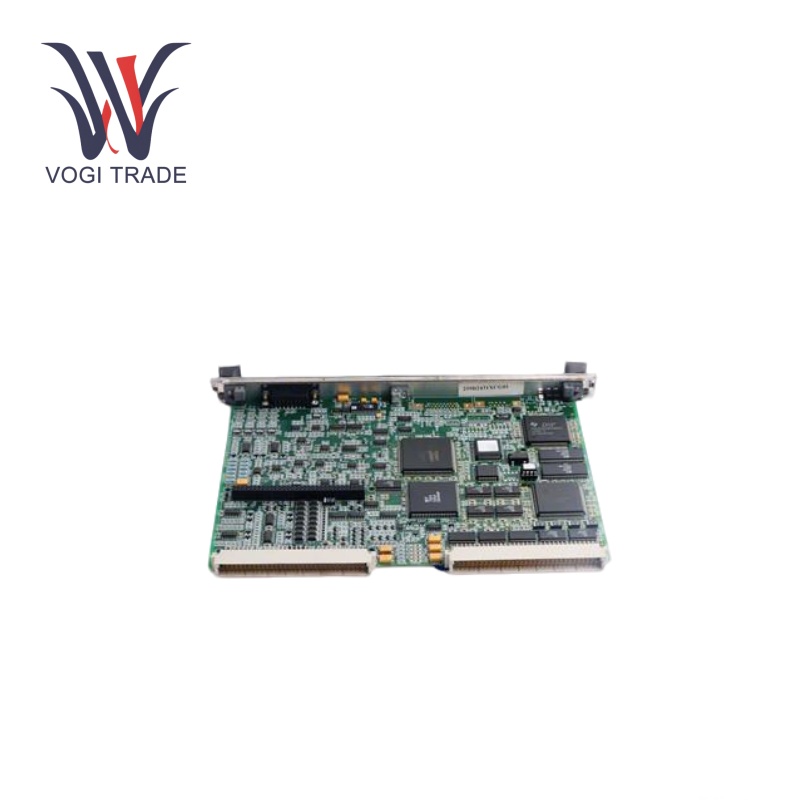

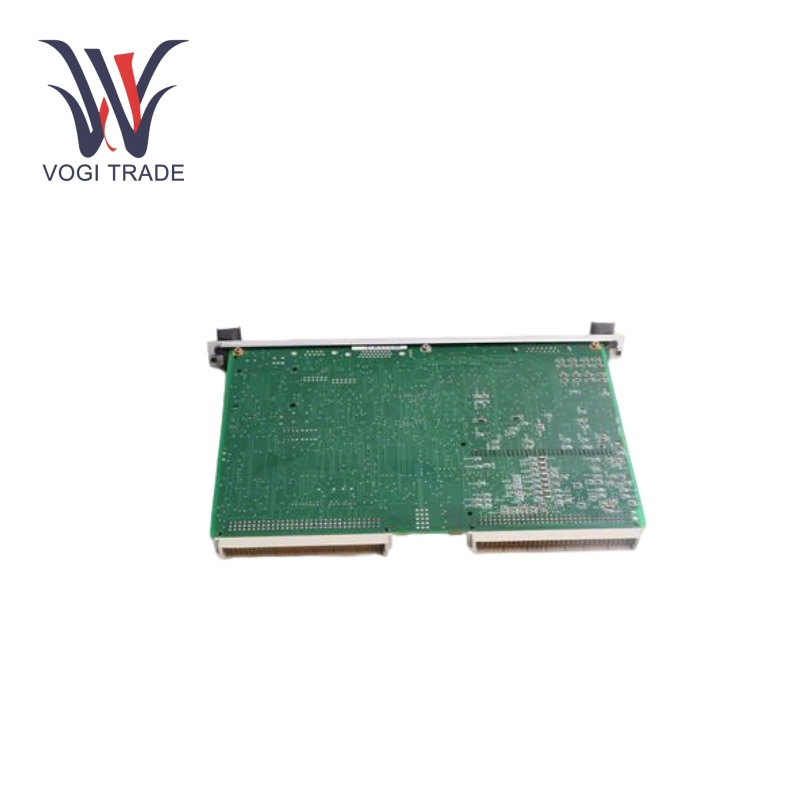

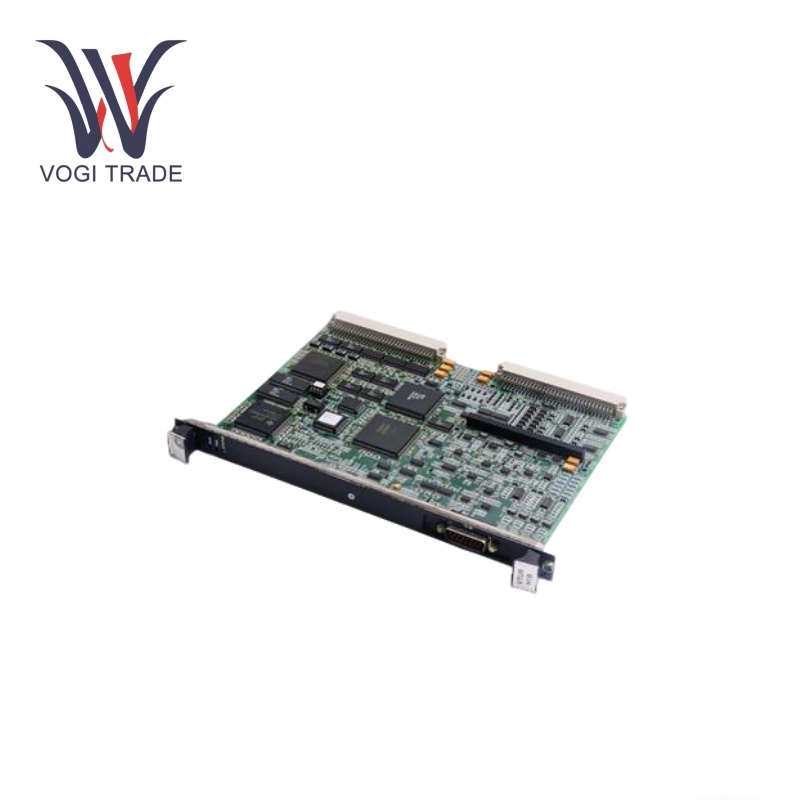

GE IS200VTURH1BAA

Technical Parameter

Number of Analog Inputs Channels: 16 channels, suitable for connecting multiple analog sensors.

Signal Types:  4 - 20 mA current signals.

Resolution: 16 - bit resolution.

Input Logic Levels: Compatible with dry contacts and TTL - level signals.

Nominal Voltage: 24 VDC with a tolerance of ±10%.

Temperature Range: - 40°C to 70°C.

Humidity: Can tolerate up to 95% relative humidity.

Interface: Equipped with Ethernet interfaces.

Protocols: Supports Modbus TCP/IP for seamless network integration.

Functional Characteristics

Signal Acquisition and Processing: GE IS200VTURH1BAA can accurately acquire both analog and digital input signals from a variety of sensors and convert them into digital data for further processing by the control system.

Control Signal Output Controlled: GE IS200VTURH1BAA produces control signals (analog or digital) to activate external control elements  according to the control algorithms and commands given by the central control unit.

Communication and Data Exchange: GE IS200VTURH1BAA can communicate with other components in the control network via ethernet and modbus TCP/IP, sharing data and receiving control instructions in real - time.

Self - check and diagnosis: The module has its own self - diagnosis function, which can monitor the working condition of the module itself and find out whether there are hidden failures, and give timely feedback to the maintenance personnel.

Application Areas

Startup and Shutdown Sequences: It controls the intricate procedures for starting up and shutting down the gas turbine. While the turbine is at a stand-still, GE IS200VTURH1BAA manages the sequence of valve openings, motor starts and ignition processes to bring the turbine safely and smoothly to full-load operation. In shutdown, it acts as a brake to decelerate the turbine in a controlled manner to prevent damage to the equipment.

Load Frequency Control: It assists in regulating the frequency of the grid by modulating the turbine's electrical power output to meet the load requirements. If the grid goes up or down in load, it allows the control system to react quickly to maintain the grid with a constant flow of power.

Fluid Transfer and Pressure Control: Pumps are used for fluid transfer in oil and gas extraction and transportation processes. GE IS200VTURH1BAA tracks the performance parameters of the pump such as flow rate, pressure, and the power output of the turbine. By finely tuning the turbine speed, it controls the pump flow and pressure, allowing the pump to work efficiently while preventing over - pressurization in the pump as well as cavitation.

Vessel Propulsion Control: The turbine speed, torque and fuel consumption of it is monitored. GE IS200VTURH1BAA regulates the operation of the turbine according to the navigation requirements to alter the vessel's speed and direction accordingly. It is also critical for improving fuel economy, lowering emissions and maintaining the reliability of the propulsion system to cover long distances.
