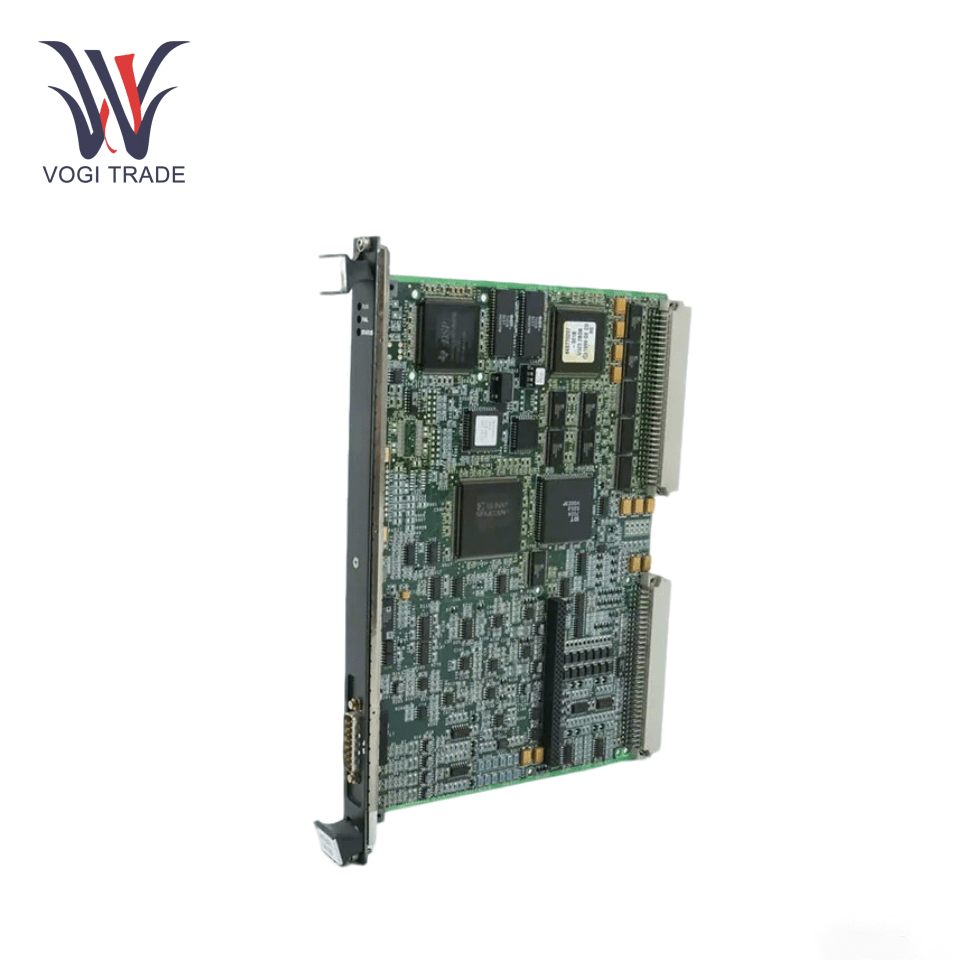

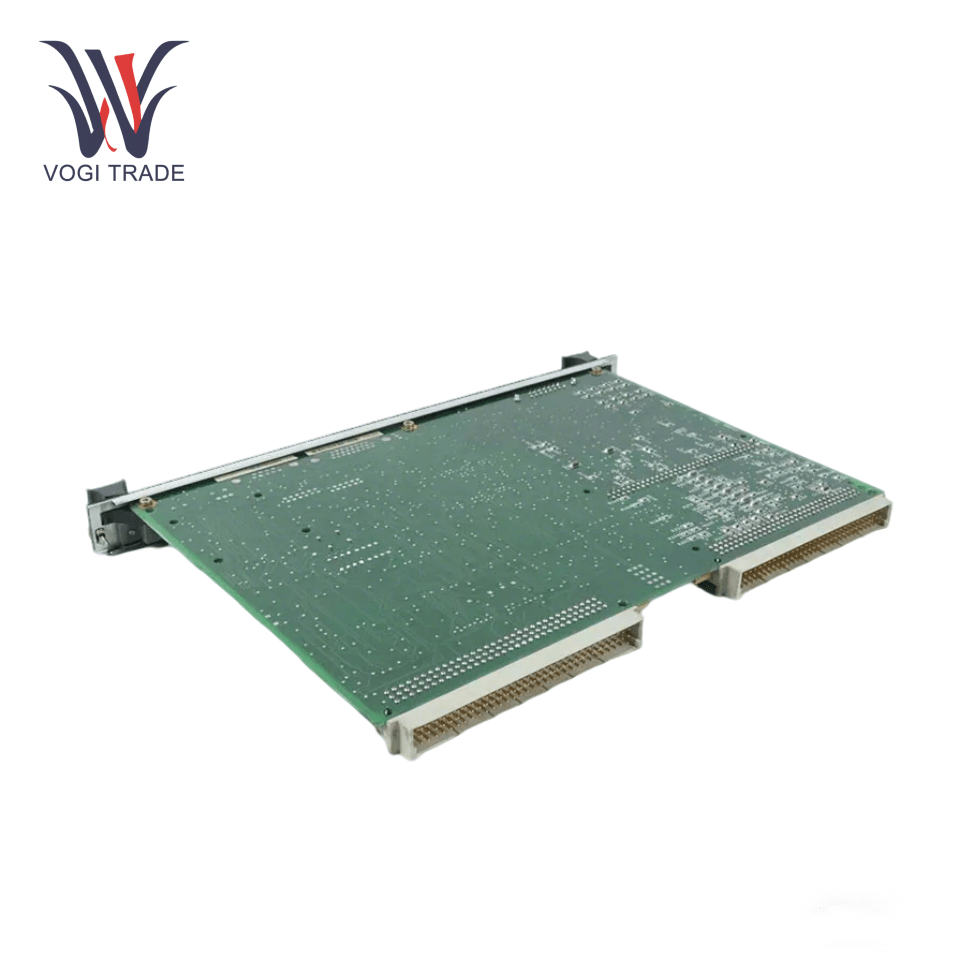

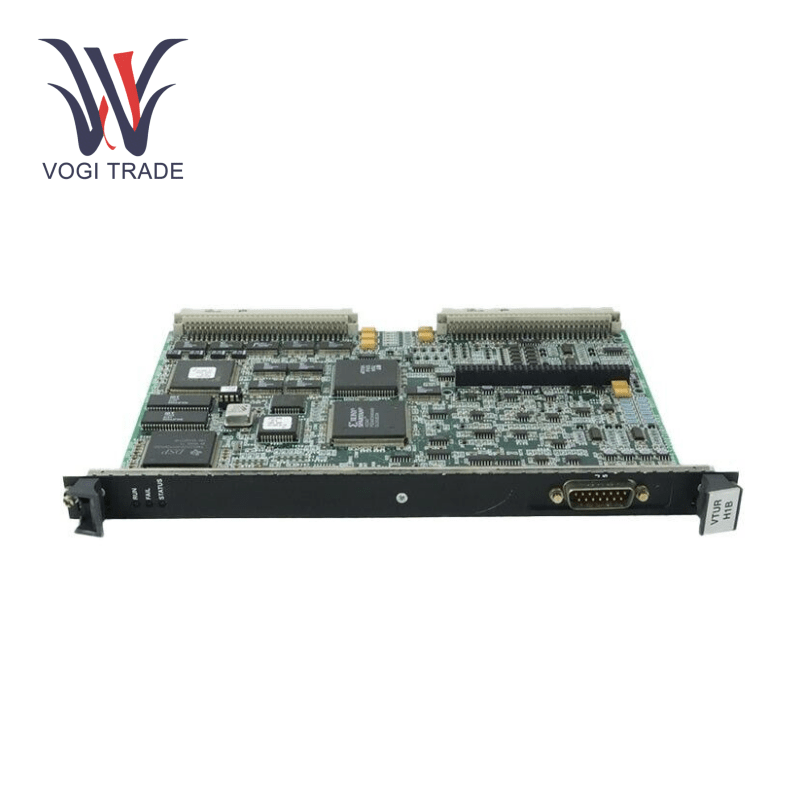

GE IS200VTURH1BAB

Operating Parameters

Input Voltage: 24V DC

Operating Temperature: -40°C to +85°C

Pulse Rate Magnetic Pickup: Monitors turbine speed by detecting magnetic pulses.

Potential Transformers: Measures voltage levels to monitor electrical performance.

Shaft Current and Voltage Monitoring: Assesses electrical conditions of the turbine shaft to prevent potential issues.

Breaker Interface: Facilitates communication with circuit breakers for coordinated control.

Signal Processing: Capable of handling high-speed signal processing for real-time control and monitoring.

Power Consumption: Low power consumption design to ensure energy efficiency and reduce heat generation.

Product Features

Turbine Control Interface: The number one job is to be an interface for turbine control. GE IS200VTURH1BAB collects data from sensors scattered through the turbine system, such as temperature sensors, pressure gauges and vibration detectors. These signals are then analyzed and transmitted to the main control unit, enabling fine-tuning of turbine speed, fuel injection, and other key factors.

Circuitry for Data Conversion: Circuits for data conversion are available with the GE IS200VTURH1BAB. It is capable of converting analog values from the sensors into the digital form used by the control system. It is an interactive process required for accurate data - decision - making in the turbine operation.

OverSpeed Trip Control: Controls the main over speed trip relays to ensure that the turbine does not reach overly high speeds.

Sensor Data: Receives and processes input signals from various sensors to continuously monitor turbine conditions.

Protection Relaying: Detects abnormal conditions and triggers protective action.

Built-in diagnostic capabilities: GE IS200VTURH1BAB has built - in diagnostic capabilities that continuously monitor the health of the connected components and circuits. In case, any abnormal readings or failures are detected, it can initiate alarms or signal an error code to the maintenance team, facilitating predictive maintenance and reducing the cost of downtime.

Installation

Prepping the Mount: You may already know this but prior to the install, make sure the mount is clean, flat and free of debris or contaminants. This helps to hold and ensure good electrical connectivity for the component. Check the mounting brackets and screws for good condition.

Power Up: The first major step is to connect the power supplies, ensuring proper polarity 铁血网 Ensure that the connectors are fitted securely to eliminate the chance of a loose connection causing an intermittent power supply or communication failure. Next, attached the data cables of the sensors and other connected devices, making sure to double - check the pin configurations to ensure all are correctly wired.

Locking it in Place: After making the electrical connections, secure the GE IS200VTURH1BAB in the provided location with the proper screws and brackets. Make sure it is installed correctly and does not shake or vibrate while working, because it will affect performance and the integrity of the connections.

Application range

Power Generation Plants: GE IS200VTURH1BAB is used in gas and steam turbine power generation plants This process plays a significant role in ensuring optimal power generation, by minimizing power losses and enhancing fuel efficiency. It helps ensure proper availability of water to ensure reliable power generation of electricity by precisely controlling the turbine parameters.

Industrial Process Control:  is used in several industrial process outside power plants in which any form of turbine is involved. Gas turbines run on gaseous fuels, e.g. natural gas, chemicals and utilization of process gases, e.g. combustion gases also in petrochemical plants or in steel mills. GE IS200VTURH1BAB enables the accurate regulation of turbine function, making it essential in these intricate industrial environments.

Hybrid Power Generation Sources: Along with renewable energy, which has grown up in the last decade, renewable energy can also be found in hybrid power sources. If wind or solar generation is intermittent, turbines can act as a backup power source.

Troubleshooting

Physical Damage to Sensor: A malfunctioning sensor due to damage, contamination, or failure. This can be addressed by checking wiring and sensor functionality.

Unexpected Trips: Due to misconfiguration or component failure. Check system settings and test parts to find and fix the issue.

Fault in Communication: can result from a fault in VME backplane connection or interference. Make sure the board is properly seated, and ensure that there are no sources of electrical noise.
