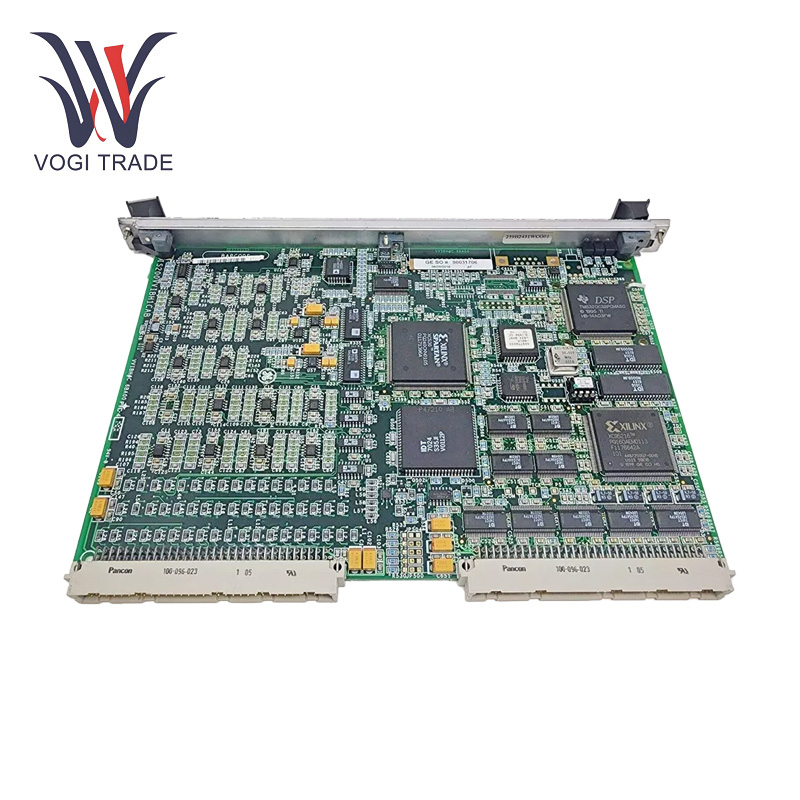

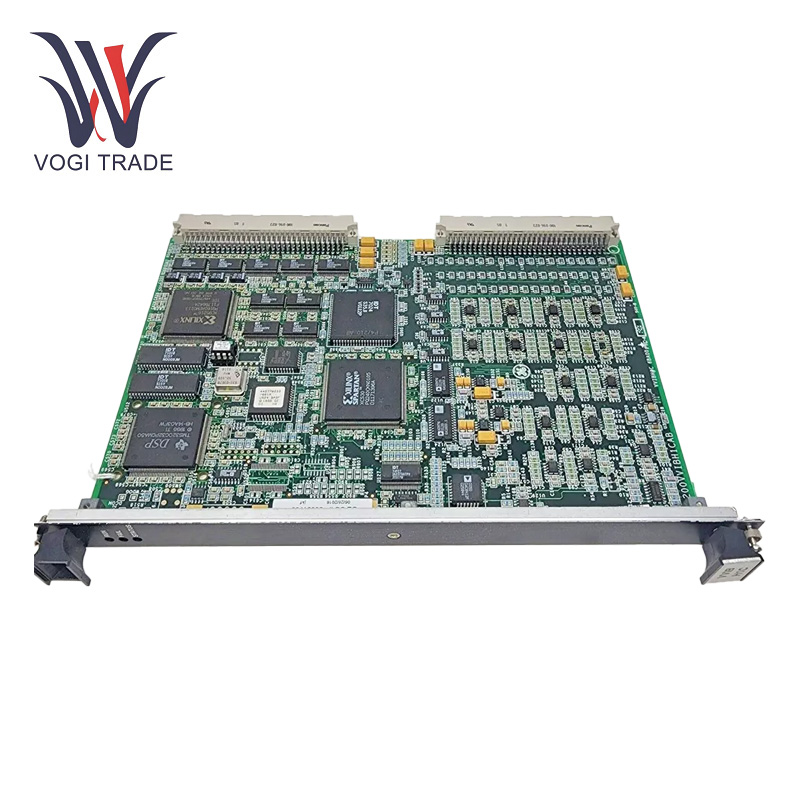

Brand: GE Description: VME Vibration Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 28 Payment Term: T/T Shipping Port: ShenZhen GE IS200VVIBH1C is a vibration monitoring board. It continuously monitors turbine vibrations, providing critical data on amplitude, frequency and speed. The board helps detect abnormal vibration patterns, enabling early fault detection and preventive maintenance.
|
Manufacture |
GE |
|
Model Number |
IS200VVIBH1C IS200VVIBH1CAB |
|
Ordering Number |
IS200VVIBH1C IS200VVIBH1CAB |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*35cm*5cm |
|
Packing Dimension |
42cm*37cm*7cm |
|
Weight |
1.5kg |
Operational Parameters
Power Supply Voltage: Operates on a 24V DC power supply.
Input Channels: Equipped with four input channels compatible with various vibration sensors, including proximity probes, velocity sensors, accelerometers, seismic sensors, and phase sensors.
Measurement Ranges:
Vibration Measurement: 0.001 to 10 g
Frequency Measurement: 10 Hz to 10,000 Hz
Speed Measurement: 0 to 100 mm/sec
Operating Temperature Range: -40°C to 70°C.
Product Features
Vibration Sensing and Measurement: GE IS200VVIBH1C is primarily used to sense and measure vibrations. It is meant to communicate with vibration sensor The module receives all the values in the form of analog that it gets from the vibration sensor its own ADC will convert them into digital. This data is the amplitude, frequency, etc. of those vibrations and can be manipulated further.
Signal Processing and Analysis: After converting the vibration signals to digital data, it executes signal processing operations. GE IS200VVIBH1C is mainly used to calculate various vibration parameters, such as root mean square value, peak value, frequency spectrum, etc. The processed data can serve to detect the existence of faults.
Data transmission and communication: The GE IS200VVIBH1C is also provided with communication interfaces. It may send the or do by other control system. This allows for the remote monitoring and analysis of the vibration condition of industrial machines.
Alarm and Warning Generation: The GE IS200VVIBH1C is capable of generating alarms and warnings based on pre set thresholds for vibration amplitude or frequency.
Vibration Monitoring: Constantly measures turbine amplitude, frequency, and speed to monitor health.
Fault Detection: Provision of deteriorating vibration patterns that indicate existing problems and assist with premature fault identification.
Data Analysis: Offers a set of data analysis tools to perform trend analysis, spectral analysis and waveform analysis to allow thorough condition monitoring.
Installation
Rack Mounting: The GE IS200VVIBH1C is intended for mounting in a VME rack. In order to install the board, make sure the VME processor rack is powered off, then line up the board's edge connectors to that of the backplane of the rack and carefully slide the board into position. Tighten the captive screws on the front panel to secure the board.
Wiring of Sensors: Proper wiring of vibration sensors shall be connected to the input channels on the board using suitable connectors, ensuring that all connections are secure and free from corrosion.
Application range
Power Generation: Used in gas and steam turbines in power plants to maintain reliability and prevent unplanned downtime.
Other Applications: Found in numerous industrial applications where turbine-driven machines are utilized, such as in chemical production plants, manufacturing sites, and marine propulsion.
Troubleshooting
Visual Inspection: At this point in the data gathering process, we have our parts and an idea of a circuit, but it is not ready to use.
LED Indicators: Use the front panel LEDs to check operational status and faults.
Dig Deep: Validate that input and output signals are as expected with diagnostic capabilities.
Jumper Settings: Configuration settings should be compared to ensure proper jumper configuration to avoid motherboard errors.
