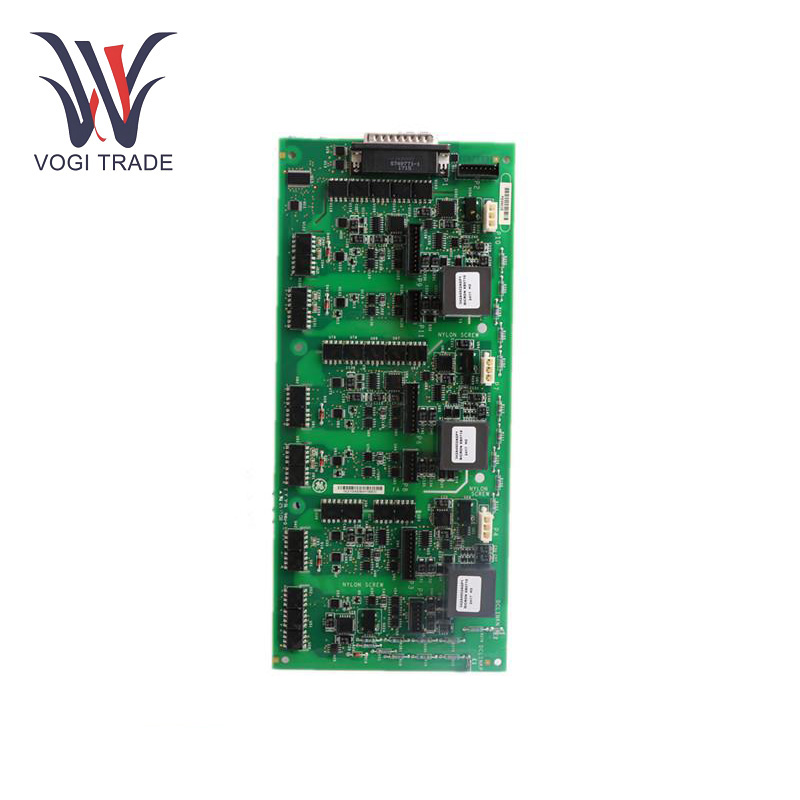

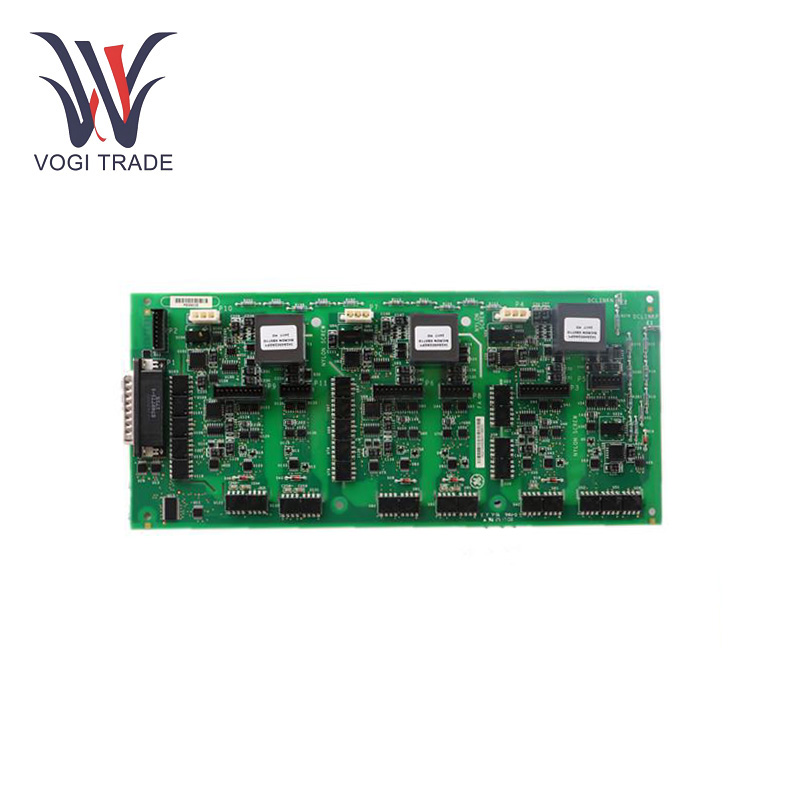

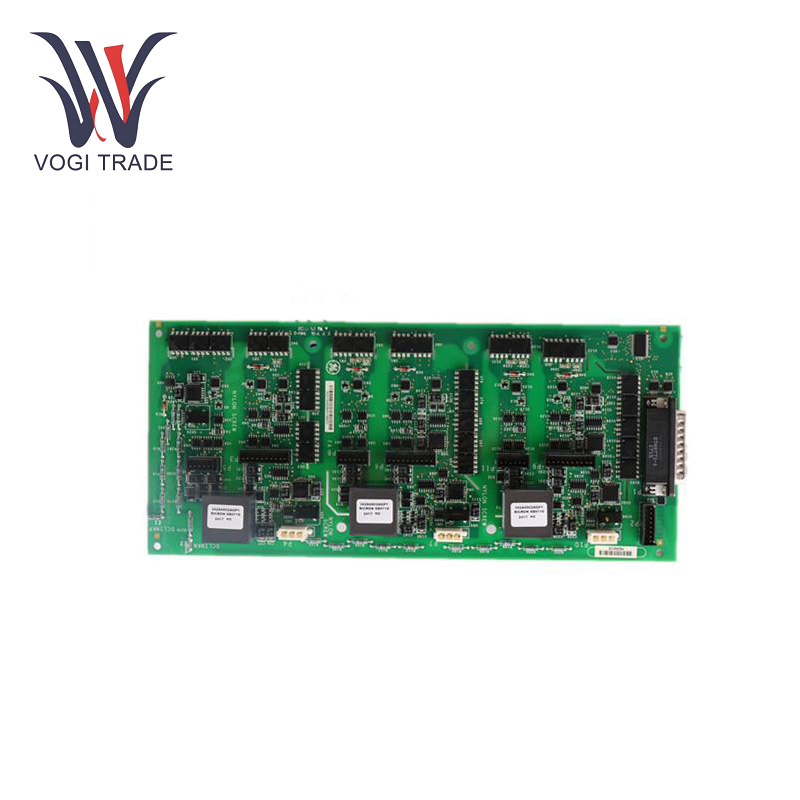

Brand: GE Description: AE Bridge Interface Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS210AEBIH1BED is AE bridge interface card, which function as a key interface for acquiring and processing analog signals, converting real-world measurements like temperature, pressure, and flow into digital data for precise system control.
|
Manufacture |
GE |
|
Model Number |
IS210AEBIH1BED |
|
Ordering Number |
IS210AEBIH1BED |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
40cm*20cm*5cm |
|
Packing Dimension |
42cm*22cm*7cm |
|
Weight |
1.2kg |
Technical Parameter
Voltage Range: 12 - 48 VDC.
Current Output: Up to 10A.
Efficiency: >90%.
Operating Temperature: -20°C to +50°C.
Storage Temperature: -40°C to +70°C.
Processor: 32 - bit RISC.
Function Features
Digital Input Expansion: GE IS210AEBIH1BED acts as a highly digital input expansion board that adds additional digital input channels to the Mark VIe control system to improve the system's capabilities to gather and process different digital signals
High-Speed Data Communication: With the help of Ethernet, Modbus TCP / IP, and DNP3 communication protocols with a maximum data transfer rate of 100 Mbps, GE IS210AEBIH1BED is possible to establish a high-speed and reliable communication with an external network.
Analog Supply Voltage Control: Analog voltage control is used for the field, which enables real-time control and improves voltage stability along with harsh environmental conditions. If one port fails, the other can be used to continue to communicate.
Fault Diagnosis
Check the Input Power Supply: Measure the input power supply with a multimeter. The voltage must be within the range of 12 - 48 VDC An overload of voltage can cause GE IS210AEBIH1BED to malfunction.
Testing of Communication: Test Signals are sent across the communication ports until communication ports can transmit and receive data properly using professional testing equipment. Ethernet & Other Communication Lines Belts.
Function Verification: Validate functional verification tests in an actual OEM systems setup Verify individually all inputs and outputs that they gave the proper command and perform load testing on the work board under these conditions.
Application Fields
Wind Turbine Control: GE IS210AEBIH1BED is primarily used in the control systems of GE's Mark VIe wind turbines, where it is crucial for monitoring and controlling wind turbine behavior, such as changing blade pitch angle, regulating generator speed, and ensuring safe overall operation of the wind power plant.
Industrial Automation: It is widely used in the field of industrial automation, where it can be used in production line control systems, coordinating the operation of different devices, collecting and processing various digital and analog signals to ensure the efficient operation of the production process.
Power Generation and Distribution: GE IS210AEBIH1BED is used in power plants and power distribution systems. It is used to monitor and control power generation equipment, circuit breakers, and other devices. This helps to ensure the stream stable operation of the power grid and reliable transmission and distribution of electricity.
