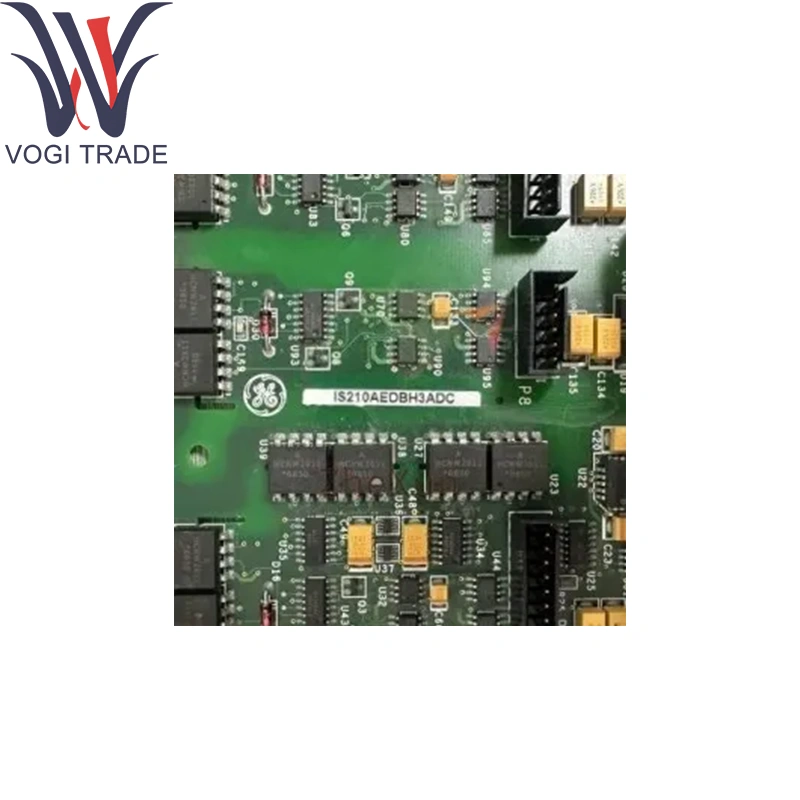

GE IS210AEDBH3A DB Bridge Interface Board

Technical Parameters

Part Number: IS210AEDBH3A

Functional Acronym: AEDB (DB Bridge)

Revision: 1 A

Coating: Conformal coating for industrial environments

Connector: 1 × DB-9 male RS-232 interface

On-Board Components: Passive logic and voltage-protection circuitry; no active power supply or processor

Operating Temp: –40 °C to +85 °C

Storage Temp: –40 °C to +100 °C

Humidity: Up to 95% RH, non-condensing

Product function

GE IS210AEDBH3A DB Bridge Interface Board Serves as a passive bridge between the Mark VIe CPU backplane and downstream peripheral or I/O assemblies. It converts board-level bus signals to a standard RS-232 link for reliable, low-latency serial communication within turbine‐control networks.

Core supporting modules

GE IS210AEDBH3A Typically used in conjunction with:

Mark VIe CPU Modules (e.g., IS200TPROH1C, IS200TTURH1C)

Analog/Digital I/O Boards (e.g., IS230TAISH2C analog, IS232TBH digital series)

Safety & Logic Modules in Mark VIeS safety‐instrumented configurations

Extension components

GE IS210AEDBH3A Mounting Hardware:

Metal mounting angles for rack or panel installation

Dual-sided adhesive strips for chassis or enclosure mounting

GE IS210AEDBH3A Rubber feet for bench‐top use

DIN-Rail Adapter Kits: Optional brackets to secure the board in industrial racks

Cable Assemblies: Standard DB-9 RS-232 interface cables, shielded for noise immunity

Software support

Configuration: None (fully passive hardware)

Firmware: Not applicable

Integration: Transparent interface for GE’s Speedtronic Mark VIe system—no device-level drivers required

Documentation: Supported by Mark VIe System Manuals (GEI-1008xx series) and VME rack installation guides
