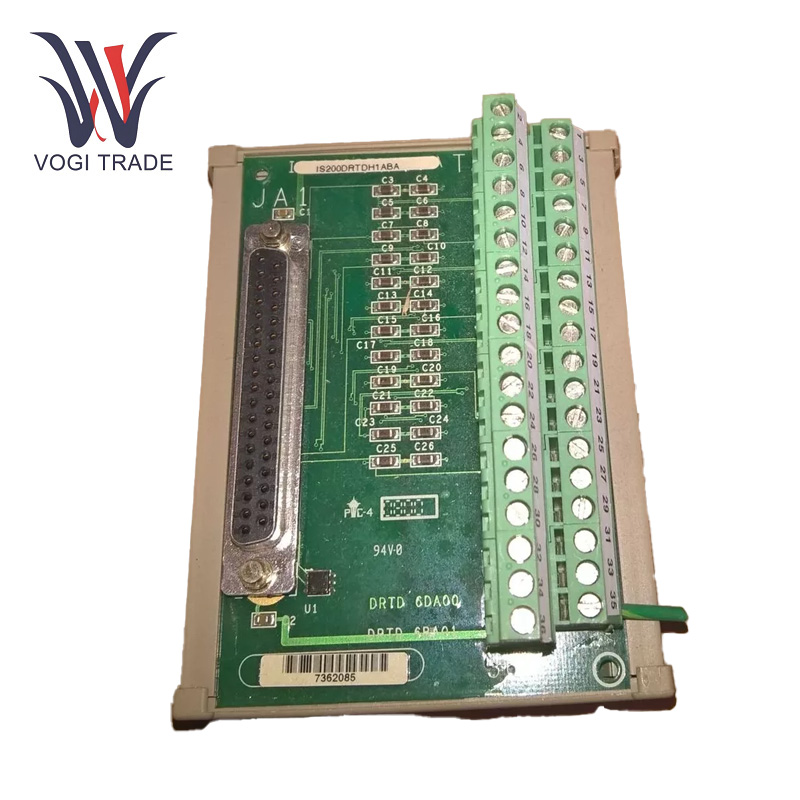

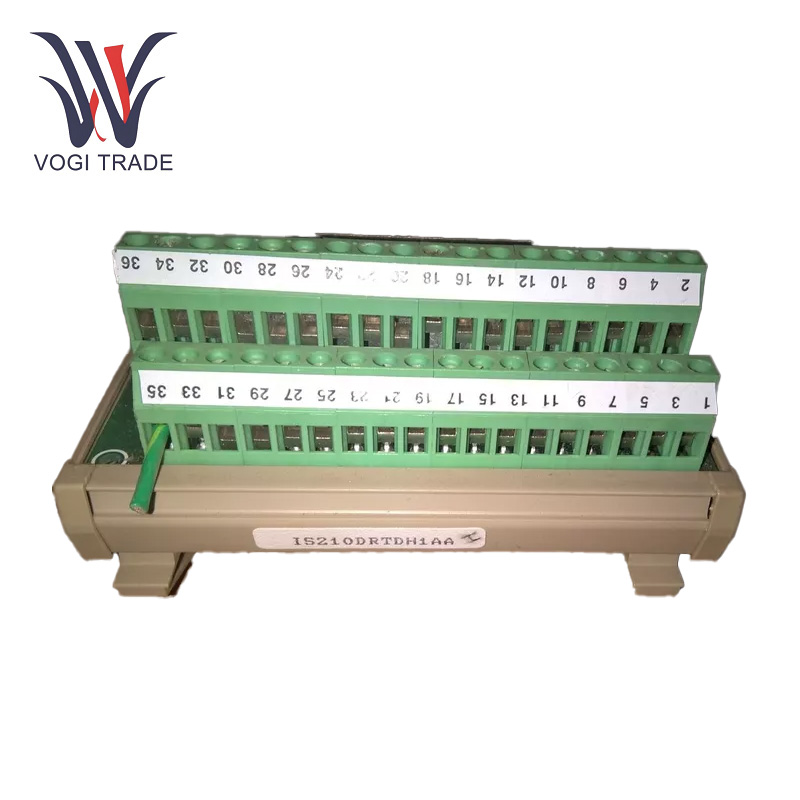

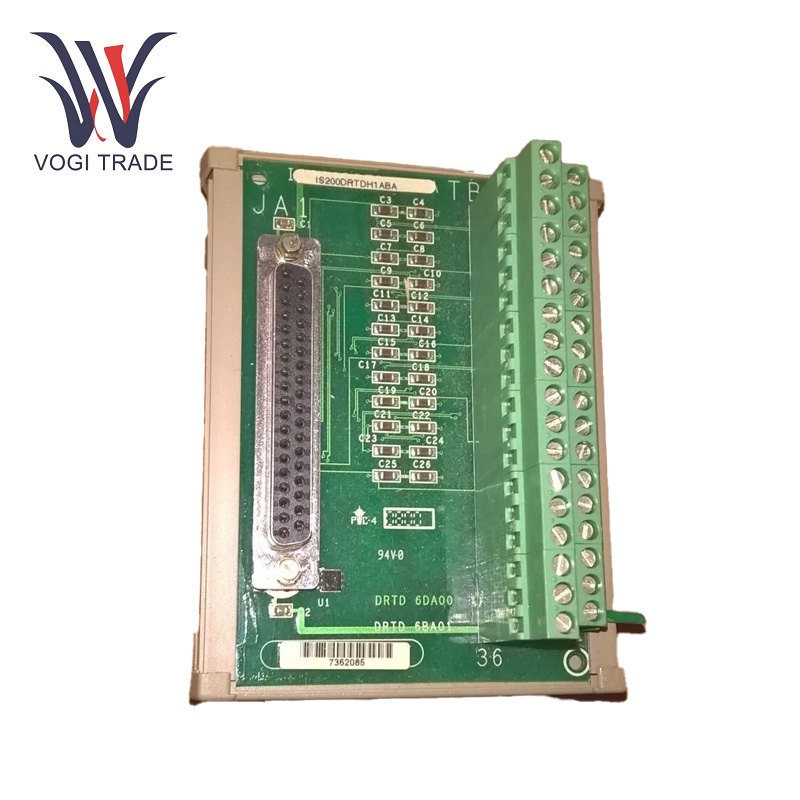

Brand: GE Description: Compact RTD Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 7 Payment Term: T/T Shipping Port: ShenZhen GE IS210DRTDH1A IS200DRTDH1A is a digital input/output module used in industrial automation and control systems, which enables the communication between the control system and the field devices by allowing the exchange of digital signals, thereby ensuring the reliability of data collection and control.
Manufacture |
GE |
Model Number |
IS210DRTDH1A IS200DRTDH1A |
Ordering Number |
IS210DRTDH1A IS200DRTDH1A |
Catalog |
Mark VI |
Country Of Origin |
USA |
HS CODE |
8479909090 |
Dimension |
40cm*30cm*13cm |
Packing Dimension |
42cm*32cm*15cm |
Weight |
1.5kg |
Number of RTD Inputs: 8.
Connector Type: 37-pin cable connector, used to connect to the VRTD processor board.
Mounting Method: DIN-rail mounting.
Terminal Block: High-density euro-block type terminal blocks are permanently mounted on the base board.
Screw Connections: Screw connections 1, 3, 5, and 7 are for return and excitation applications, while 2, 4, 6 and 8 are for signal processing applications.
Functional Characteristics
High Density Terminals:GE IS210DRTDH1A IS200DRTDH1A is equipped with high-density euro-block type terminal blocks, which not only provide reliable connections but also facilitate the connection of multiple RTD signals.
Noise Suppress:On-board noise suppress filter, for the TRTD Mark VI speedtronic terminal board, effectively reduce interference ensure the accuracy of signal transmission.
Diagnostic Function:GE IS210DRTDH1A IS200DRTDH1A utilizes an on-board identification chip for VRTD systems diagnostic purposes, assisting in rapid identification and troubleshooting of system faults.
Efficient Signal Processing:GE IS210DRTDH1A IS200DRTDH1Acould collect each RTD signal accurately and send it out, working with the VRTD processor board to fulfill efficient signal processing to satisfy the real-time monitoring and control in the industrial usage.
Application Areas
Power generation industry : It is used to temperature monitoring of various parts of the turbine, generator in the power plant At steam turbine power plants, it can monitor the temperature of the steam turbine cylinder, bearing and other components to ensure safe and efficient operation of the equipment.
Petrochemical Industry: GE IS210DRTDH1A IS200DRTDH1A is used in petrochemical production processes to measure the temperature of reactors, distillation columns and other equipment. It helps to guide the reaction process, optimize the reaction temperature and distillation conditions, and ensure the quality of products and the safety of the production process.
Metallurgical Industry:It is widely used in metallurgy industry, steelmaking, aluminum smelting and other fields to monitor the temperature of furnace and molten metal, provide data support for process control and quality control.
HVAC Systems: GE IS210DRTDH1A IS200DRTDH1A is commonly used in HVAC (heating, ventilation and air conditioning) systems to monitor and control the temperature of air ducts, water pipes & indoor habitat, which helps to achieve energy-saving and comfortable control of the HVAC systems.
