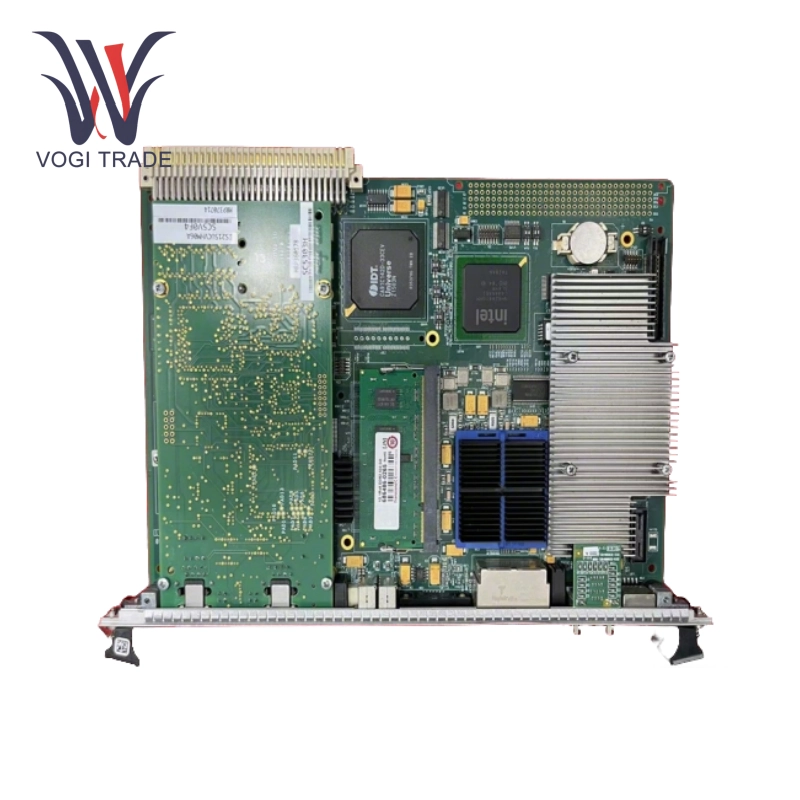

Brand: GE Description: Compact PCI Processor Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: Shenzhen GE IS215UCCAM03A is a CPCI (Compact PCI) controller module designed for industrial automation. It is known for its high reliability, anti-interference ability and multi-tasking performance.
|
Manufacture |
GE |
|
Model Number |
IS215UCCAM03A |
|
Ordering Number |
IS215UCCAM03A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8517795000 |
|
Dimension |
30cm*25cm*8cm |
|
Packing Dimension |
32cm*27cm*10cm |
|
Weight |
1.2kg |
Technical Parameters
Processor: Equipped with Intel Pentium M 1.6 GHz processor (some versions are Intel Celeron 650 MHz).
Memory: Integrated 256 MB DRAM and 128 MB flash memory.
Ethernet: Supports 10BaseT/100BaseTX, provides Unit Data Highway (UDH) connection for communication with HMI, other controllers and I/O networks.
ISBUS interface: Dual-channel support, each port can manage 64 communication tasks and allocate 224 status bits (I/M/T area) and 128 control bits (Q/M/T area).
RS-232C port: used for equipment debugging and configuration.
Temperature range: -40°C to +85°C.
Expandability: GE IS215UCCAM03A supports PCI Mezzanine Card (PMC) slot, expandable function modules, compatible with Genius bus module, and realizes multi-device collaborative control.
Installation and Operation Principle
Physical installation: Standard CPCI architecture is adopted, and it needs to be inserted into Slot 1 (main controller slot) of the CPCI rack.
Power management: Equipped with dual power supply redundant design, supporting hot-swap replacement; during installation, the CMOS battery needs to be connected through a jumper to maintain the real-time clock.
System startup: Load the control software based on the QNX Neutrino real-time operating system, supporting customized applications for various industrial scenarios such as steam turbines and gas turbines.
Network configuration: Connect UDH via Ethernet to realize data interaction with the host computer (such as ToolboxST software); I/O network uses RS-485 or ISBUS protocol.
Anti-interference measures: The software level integrates filtering algorithms and redundancy checks, and cooperates with hardware design to reduce the impact of electromagnetic interference.
Core Functions
Multi-tasking: GE IS215UCCAM03A supports 64 parallel communication tasks, each task independently allocates resources, suitable for high-concurrency industrial control scenarios.
Real-time monitoring: Real-time feedback of module and communication status through 224 status bits, and execution of output instructions using 128 control bits to ensure system response speed.
Flexible expansion: Integrated 2 PMC slots, can expand analog input/output, digital I/O and other modules (such as GE IC670 series).
High reliability design: UL and CE certified, in line with international safety standards; built-in watchdog timer (Watchdog Timer) to prevent program deadlock.
