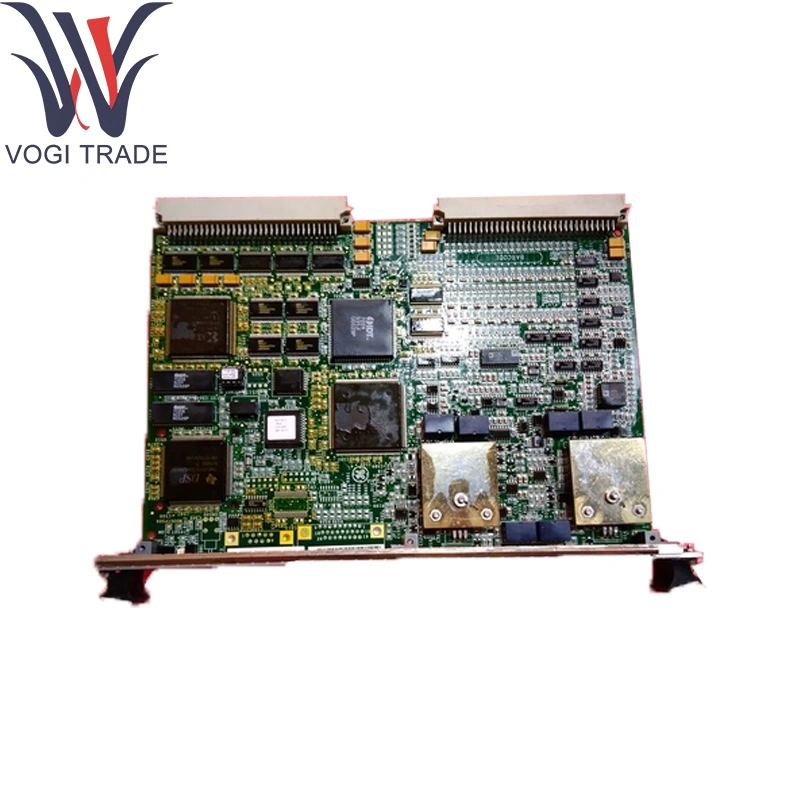

GE IS215UCVGM06A

Technical Parameters

Feedback Channels: 6 isolated analog inputs

Signal Types:

4- 20 mA current-loop (passive loop-powered)

0- 10 V DC (jumper-selectable per channel)

Resolution & Accuracy:

16-bit A/D per channel

± 0.05 % of full-scale accuracy

Sampling Rate: 200 samples/sec per channel, simultaneous acquisition

Isolation: ≥ 1 kV reinforced channel-to-channel and channel-to-ground

Protection: Overvoltage clamp to ± 35 V; reverse-polarity protection; input surge suppression

Diagnostics:

Open-loop and short-circuit detection per channel

Per-channel status LEDs (OK/fault) on front edge

Connectors:

Dual 50-pin I/O-pack backplane edge connectors

GE IS215UCVGM06A Right-angle 34-position pluggable terminal block for field wiring

Environmental Ratings:

Operating: - 30 °C to +65 °C

Storage: - 40 °C to +85 °C

Humidity: up to 95 % RH, non-condensing

Product function

Conditions, linearizes, and digitizes valve-position feedback signals, forwarding precise position data over the IONet Ethernet bus to the Mark VIe CPU. Built-in diagnostics continually verify loop integrity GE IS215UCVGM06A and report any open-circuit or over-range conditions to enable rapid fault detection and maintain control-loop stability.

Core supporting modules

I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly providing 24V DC and IONet connectivity

Controller Module: Mark VIe CPU (e.g., IS200TPROH1C) running valve-control algorithms

Valve-Drive Pack: IS215UCVDH7AM Universal Control-Valve Drive Module for generating drive signals

Extension components

Pluggable Terminal Blocks: 34-way screw-clamp blocks keyed for current or voltage loops

DIN-Rail & Panel-Mount Kits: Adapter clips and angle brackets for 35 mm rail or panel installation

Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression on field cables

Calibration Fixtures: Loop calibrators for zero/span verification of each channel

Software support

Configuration & Calibration:

Loop-type (4- 20 mA vs. 0- 10 V) and filter settings programmed via GE ControlST™/ToolboxST™ templates

On-line calibration wizards guide zero and span adjustments per channel

Diagnostics & Monitoring:

GE IS215UCVGM06A Real-time loop-health, open-circuit, and short-circuit alarms available in HMI and OPC-DA tags

Self-test at power-up with diagnostic flags logged in controller diagnostics

Firmware Updates: Delivered as part of Mark VIe system releases; applied through ToolboxST™

Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and the Valve-Position Feedback Module Reference Manual
