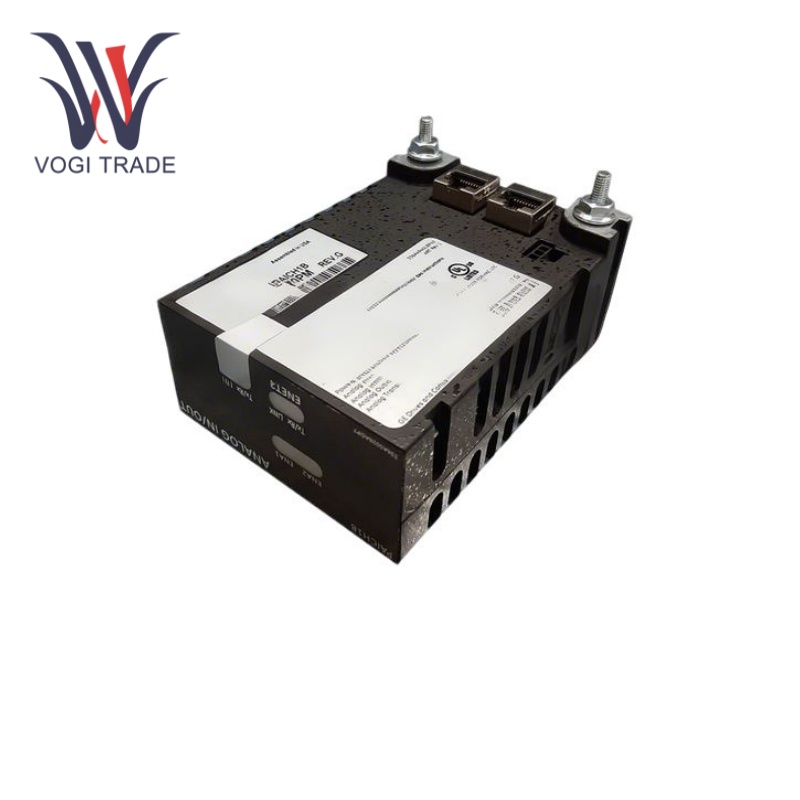

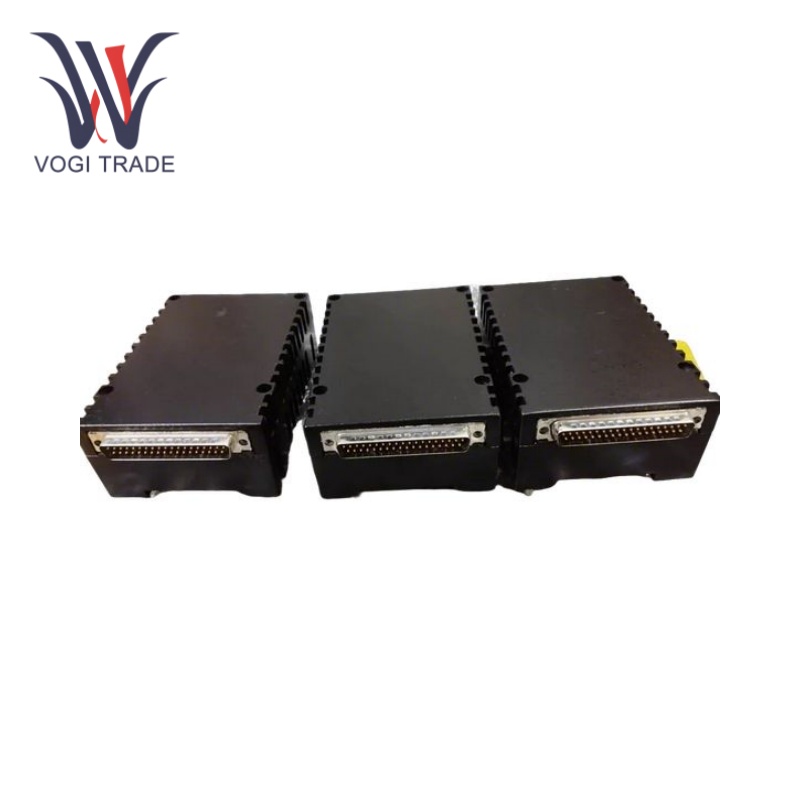

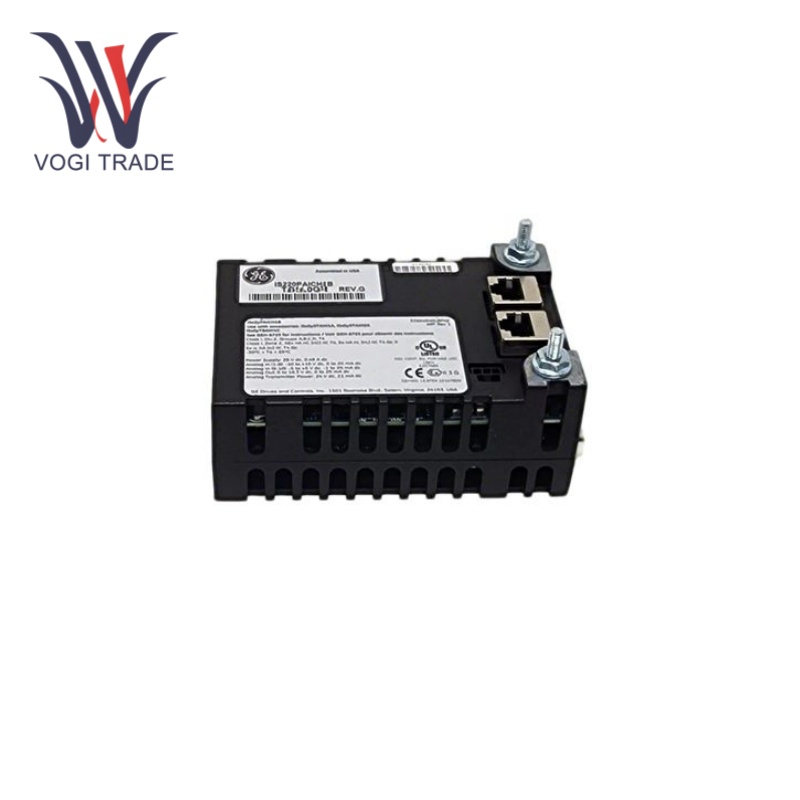

Brand: GE Description: Analog Input/Output Module Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: ShenZhen GE IS220PAICH1B accurately obtains measurement data of analog signals from traditional industrial sensor systems such as temperature, pressure, and flow meters, and then converts them into digital data that can be processed by the CPU of the system.
|
Manufacture |
GE |
|
Model Number |
IS220PAICH1B |
|
Ordering Number |
IS220PAICH1B |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
13.3cm x 7.08cm x 3.93cm |
|
Packing Dimension |
15cm x 9cm x 6cm |
|
Weight |
0.8kg |
Technical Parameter
Number of Inputs: 10.
Input Voltage Ranges: 1-5 V DC.
Input Converter Resolution: 16-bit Analog-to-Digital Converter.
Output Current Ranges: 0-20 mA.
Scan Time: Normal scan is 5 milliseconds (200 Hz).
Power Supply: 24 V DC.
Power Consumption: 5.3 W.
Operating Temperature: -40 °C to +70 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 10% to 95% (non-condensing).
Functional Characteristics
High Resolution Conversion: The input converter of GE IS220PAICH1B has a resolution of 16 bits, which can accurately convert analog signals into digital forms, providing high-precision data acquisition and processing capabilities.
Processor and Operating System: GE IS220PAICH1B is equipped with a 667MHz Power Quicc II Pro Freescale processor and using the QNX Neutrino operating system, a real-time multitasking OS designed for high-speed and high-reliability industrial applications, ensuring robust computing and data processing capabilities.
Isolated I/O Channels: Each analog input and output channel is isolated. If one channel fails, it will not affect the normal operation of other channels. So it increases the reliability and stability of the system.
Fault Diagnosis
Alarm& Status Monitoring Functions : GE IS220PAICH1B has special alarm functions, for example, the 82-83, which indicates that the suicide relay in the pack is inoperable A probable cause could be that the suicide relay command which prepares it to operate in the pack, does not correspond to the feedback that is associated with it. Other possible causes would be, a hardware failure or a relay failure in the acquisition board. The primary fix for this issue is swapping out the I/O pack itself.
System Monitoring & Diagnostic Tools : In the case of Mark VIe series distributed turbine control system, there are typically system monitoring and diagnostic tools These tools can help users in real time monitor the working condition of GE IS220PAICH1B, such as the input signal and output signal status, processor operating status, network connection status, etc. The system can create appropriate error prompt and diagnostic reports to assist users in quickly finding and resolving issues.
Application Fields
Power Generation Industry: It is commonly used in power generation industry, gas, steam, and wind turbine control systems, as well as Mark VIe series distributed turbine control system. The results of the data pre-processing are transmitted to the appropriate actuator for its control.
Industrial Automation: GE IS220PAICH1B can be used to connect various analog devices, such as sensors, transmitters, actuators, etc., to realize the acquisition and control of analog signals, and then complete the monitoring and control of the production process.
HVAC Systems: The module can be used to measure and control the analog signals such as temperature, humidity, pressure, etc. of various sensors, and the control of the air conditioner, fan, water pump and other equipment to achieve energy saving and comfort.
Other Industrial Control Applications: GE IS220PAICH1B can also be used in metallurgical, paper-making, water treatment and other industries in the high-speed data processing and high reliability requirements of other industrial control systems.
