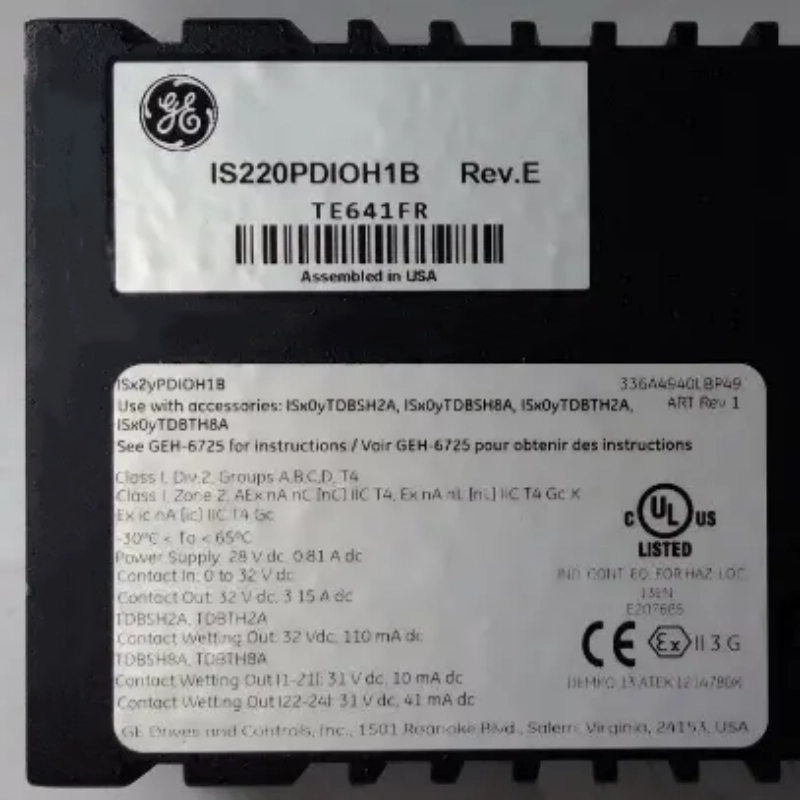

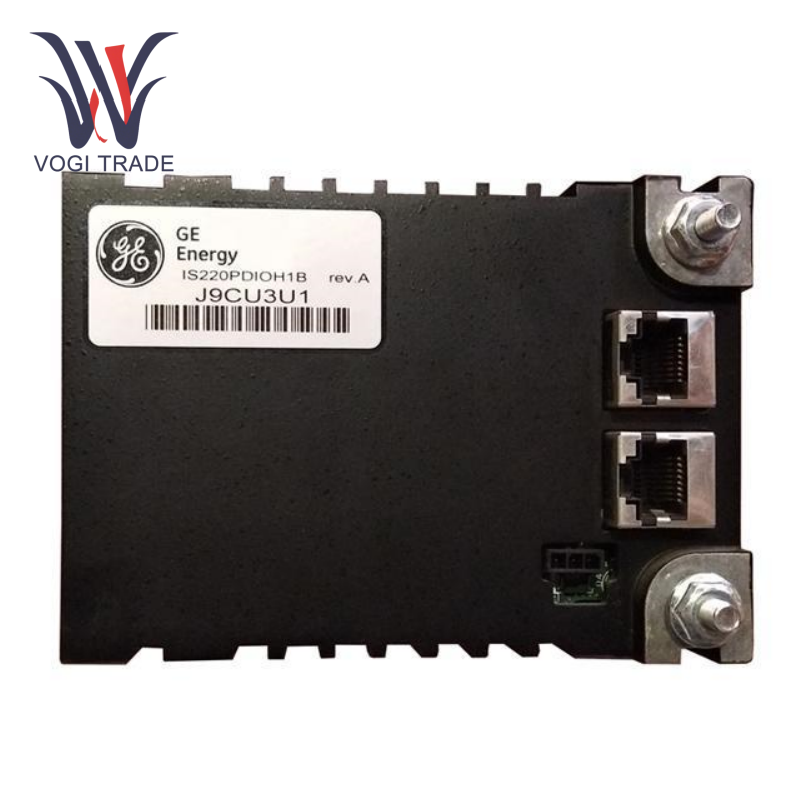

Brand: GE Description: Discrete I/O Pack Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: ShenZhen GE IS220PDIIH1B is a digital/analog hybrid I/O module designed for signal acquisition and command output in industrial automation and control systems.
|
Manufacture |
GE |
|
Model Number |
IS220PDIIH1B |
|
Ordering Number |
IS220PDIIH1B |
|
Catalog |
Mark VI |
|
Country Of Origin |
USA |
|
HS CODE |
8517795000 |
|
Dimension |
20cm*12cm*6cm |
|
Packing Dimension |
22cm*15cm*8cm |
|
Weight |
1kg |
Technical Parameters
Digital input: GE IS220PDIIH1B supports dry contact signals, and the number of channels can be expanded according to different configurations.
Analog input: can process signals such as voltage, current, and temperature (some models support 10 analog inputs and 2 analog outputs).
Ethernet: supports high-speed data transmission and remote monitoring.
Modbus/Profibus: compatible with mainstream industrial protocols to achieve seamless integration between devices.
Processing speed: 600 MHz, 64MB program capacity, support real-time data processing.
Non-volatile flash memory: stores configurations and programs, supports battery backup to prevent data loss.
Operating voltage: 24 VDC (nominal), maximum 28.6 VDC, contact input supports 32 VDC.
Temperature range: -30°C to +65°C (industrial-grade wide temperature design).
Protection level: IP20 (conventional) or higher (suitable for hazardous environments).
Scalability: Supports use with terminal boards such as ISx0yTDBSH2A/TDBTH8A, expands to 24 field terminals, and adapts to different sensors and actuators.
Operation Principle and Function
Signal acquisition and processing: GE IS220PDIIH1B collects signals from field devices (such as sensors and switches) through digital/analog input channels, converts them into control signals through the built-in processor, and transmits them to the PLC/DCS system through Ethernet or Profibus.
Command output: After receiving the control system command, it drives the actuator (such as relays and valves) through the digital/analog output channel to complete the closed-loop control.
Redundancy design: Supports hot standby redundancy (HSB) and dual power supply configuration to ensure seamless switching of the system in case of failure.
Core Function
Multi-protocol communication: GE IS220PDIIH1B supports Ethernet, Modbus TCP, Profibus-DP and other protocols to achieve real-time data interaction with the host computer (such as ControlST software) and other devices.
Self-diagnosis and remote maintenance: Built-in self-check function, real-time display of module status (such as power, communication, fault) through LED indicator; supports remote monitoring and firmware upgrade.
High-precision control: The resolution of analog input channels reaches 16 bits, ensuring accurate acquisition of signals such as temperature and pressure.
