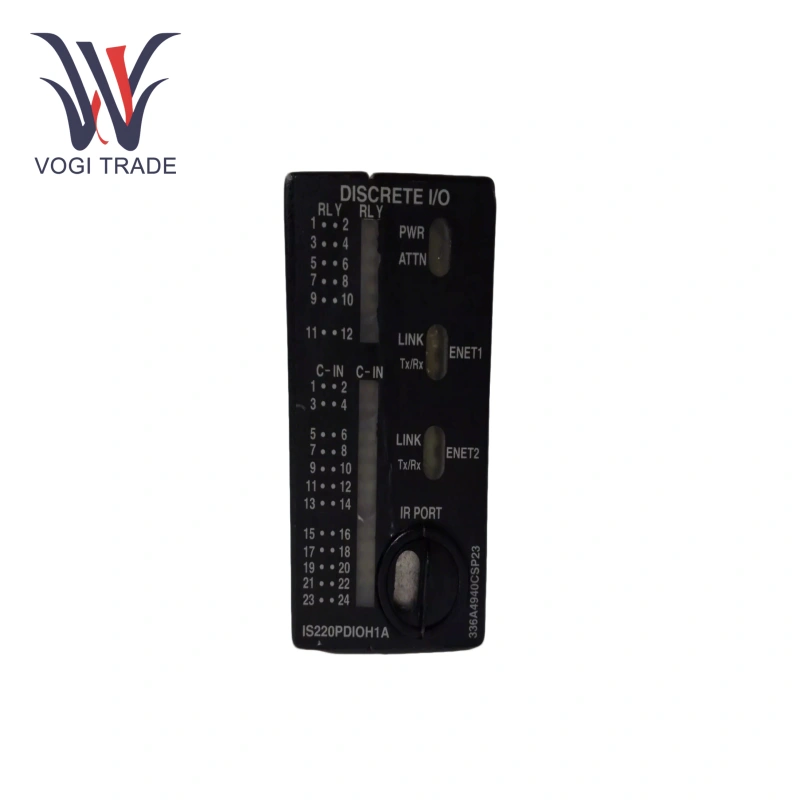

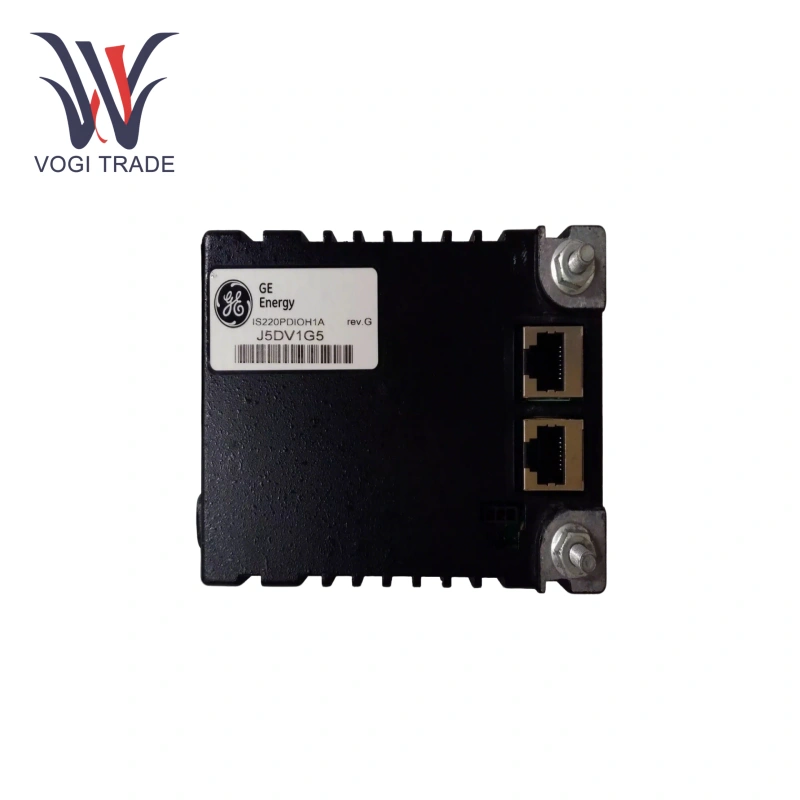

Brand: GE Description: Discrete Digital I/O Modules Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: Shenzhen GE IS220PDIOH1A is designed for industrial turbine control systems, supporting 24 dry contact inputs and 12 relay outputs to achieve signal acquisition and control functions.
|
Manufacture |
GE |
|
Model Number |
IS220PDIOH1A |
|
Ordering Number |
IS220PDIOH1A |
|
Catalog |
GE Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8538109000 |
|
Dimension |
23*18*9CM |
|
Packing Dimension |
25*20*11CM |
|
Weight |
1.2KG |
Technical Parameters
Input channels: 24 (dry contact input).
Output channels: 12 (relay output, rated current 10A).
Working voltage: 24V DC (input/output).
Communication interface: 2 Ethernet ports (100Base-TX).
Protection level: IP20 (industrial environment protection).
Core Functions
Distributed control: GE IS220PDIOH1A, as the core I/O module of the Mark VIe system, supports distributed signal acquisition and control, and improves system response speed.
Redundant communication: Dual Ethernet ports support active-standby link switching to ensure uninterrupted control instructions.
High reliability: Adopts hardware filtering, overvoltage/undervoltage protection and optical isolation technology (isolation voltage 1500V) to adapt to harsh industrial environments.
Typical Application Scenarios
Gas turbine control: GE IS220PDIOH1A is integrated into the gas turbine system of a power plant to achieve speed monitoring, start-stop control and fault protection.
Industrial automation production line: GE IS220PDIOH1A is used for equipment interlocking control (such as motor start and stop, valve switch) in industries such as steel and chemical industry.
Hazardous location monitoring: Replace traditional hard-wired systems in explosion-proof areas (such as oil refineries) to improve safety and maintainability.
