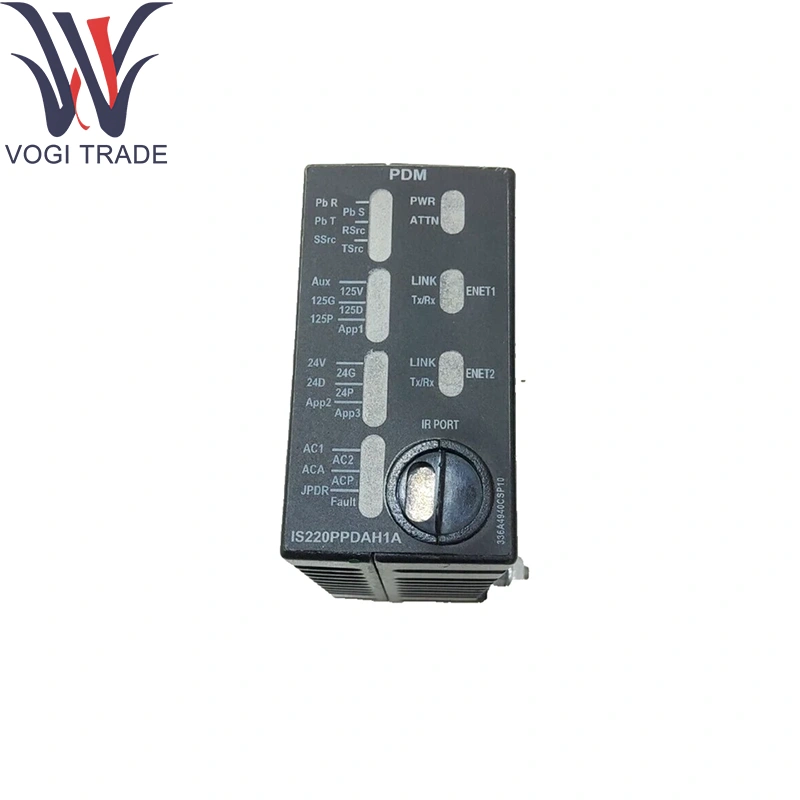

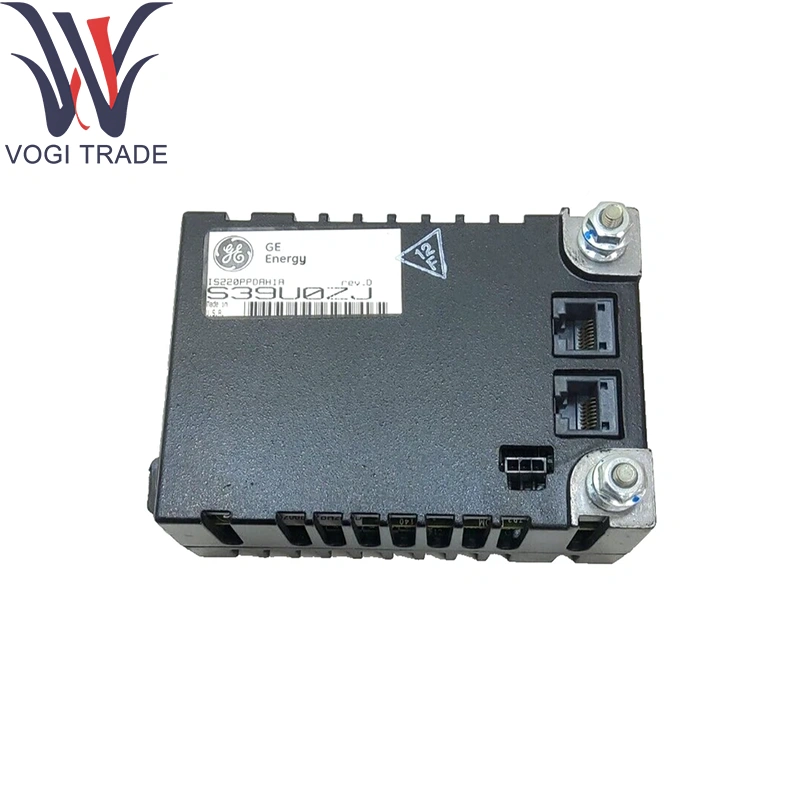

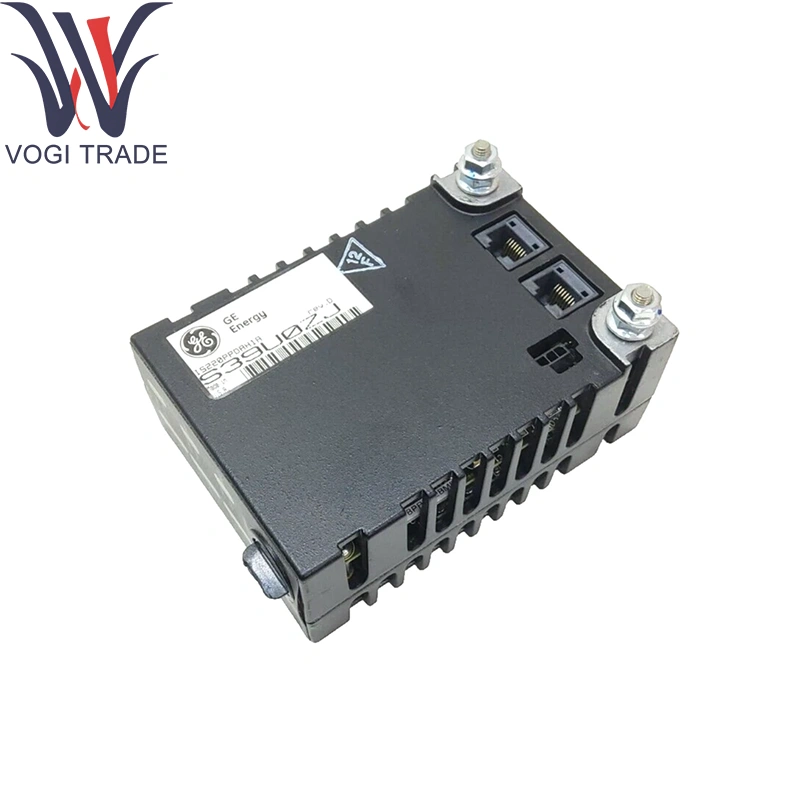

Brand: GE Description: IS220PPDAH1A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 19 Payment Term: T/T Shipping Port: Shenzhen GE IS220PPDAH1A Power Distribution System Feedback Installed within the Mark VIe power-distribution cabinet, the IS220PPDAH1A gathers real-time feedback from up to six power-distribution boards (JPDS, JPDM, JPDG, JPDC series).
|
Manufacture |
GE |
|
Model Number |
IS220PPDAH1A |
|
Ordering Number |
IS220PPDAH1A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
188 × 86 × 56 mm |
|
Weight |
0.77 kg |
Technical Parameters
Functional Acronym: PPDA (Power-Distribution-Pack Diagnostics & Acquisition)
Analog Inputs: Five dedicated channels for power-distribution feedback signals
LED Indicators: Eight status LEDs for board-ID and channel health
Ethernet Interfaces: Dual redundant 10/100 Base-T IONet ports for data output
Feedback Channels: Up to six PDM sources, identified via plug-and-play electronic IDs
Protection Actions: Diagnostic only—does not execute protective trip functions
PCB Coating: Conformal for industrial and hazardous-location resistance
GE IS220PPDAH1A Environmental Ratings:
Operating: -30 °C to +65 °C
Storage: -40 °C to +85 °C
Humidity: ≤ 95 % RH, non-condensing
Product function
GE IS220PPDAH1A Power Distribution System Feedback passively aggregates health and status signals from the power-distribution system and formats them onto the IONet control Ethernet. The board’s onboard processing tags each feedback group with an electronic ID, ensuring the Mark VIe controller receives accurate, automated mapping of up to six distribution sources without manual configuration.
Core supporting modules
Host PDM Boards: JPDS, JPDM, JPDG, JPDC (28 V DC control-power distribution modules)
I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly providing backplane power and Ethernet backhaul
GE IS220PPDAH1A Controller Module: Mark VIe CPU (e.g., IS200TPROH1C) for data aggregation and diagnostics
Diagnostic HMI: GE ControlST™ or CIMPLICITY panels displaying power-distribution health
Extension components
Ribbon-Cable Jumpers: 50-pin, keyed jumpers for board-to-board feedback connections
Mounting Hardware: Two screw-standoff brackets for PCB chassis installation
Backplane Assemblies: VME-style rack backplanes to host multiple I/O packs
Spare LED Kits: Replacement LED assemblies for channel-status indicators
Software support
Configuration & Mapping: Fully automatic via board-ID electronics; no manual setup required
Monitoring & Diagnostics: Real-time channel-health and bus-voltage data available in GE ControlST™/ToolboxST™ and via OPC tags
Firmware Updates: Delivered as part of Mark VIe system software; applied through ToolboxST™
Documentation: Detailed in GEH-6721L Mark VIe Power-Distribution Feedback Module manual and general I/O Installation Guide
