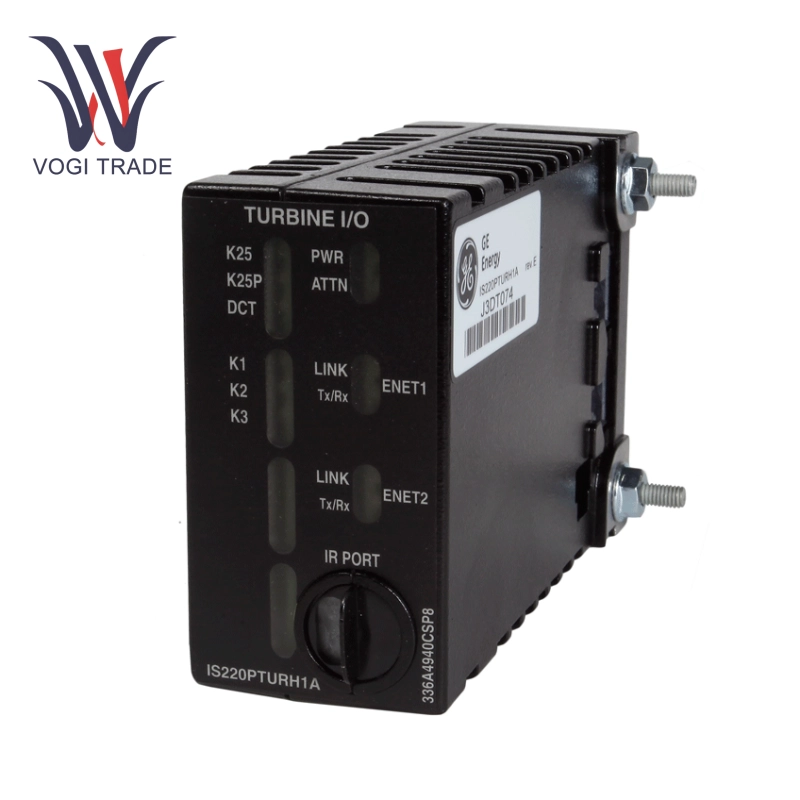

Brand: GE Description: Primary Turbine Protection Pack Condition: Brand New Certificate：COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: ShenZhen GE IS220PTURH1A is a turbine-specific master trip module. It is a gas/steam turbine control system component that implements turbine overspeed protection, speed monitoring and emergency tripping functions through high-precision signal processing and redundant design.
|
Manufacture |
GE |
|
Model Number |
IS220PTURH1A |
|
Ordering Number |
IS220PTURH1A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8517795000 |
|
Dimension |
25cm*12cm*6cm |
|
Packing Dimension |
27cm*15cm*8cm |
|
Weight |
1kg |
Technical Parameters
Operating temperature: -30°C to +65°C.
Input voltage: 24 VDC (nominal), compatible with 27.4–28.6 VDC range, power consumption is about 25 watts.
Installation and Precautions
Physical installation: Need to be fixed on the TTURH1C terminal board, use a DC-62 pin connector to ensure the stability of the electrical interface and avoid applying right-angle force to the pins.
Wiring specifications: Use shielded wire, wire diameter recommended 0.2–2.5 mm², strictly distinguish positive and negative poles, and the grounding distance does not exceed 50 meters.
Operation Precautions
Power management: Ensure that the input voltage is within the range of 27.4–28.6 VDC to avoid voltage fluctuations causing module failure.
Environmental restrictions: Avoid use in areas with humidity >85% or strong electromagnetic interference.
Module maintenance: Clean the heat dissipation holes regularly, check the LED status and network connection.
When replacing GE IS220PTURH1A, enable the automatic reconfiguration function through Toolbox ST to avoid manual operation causing system errors.
