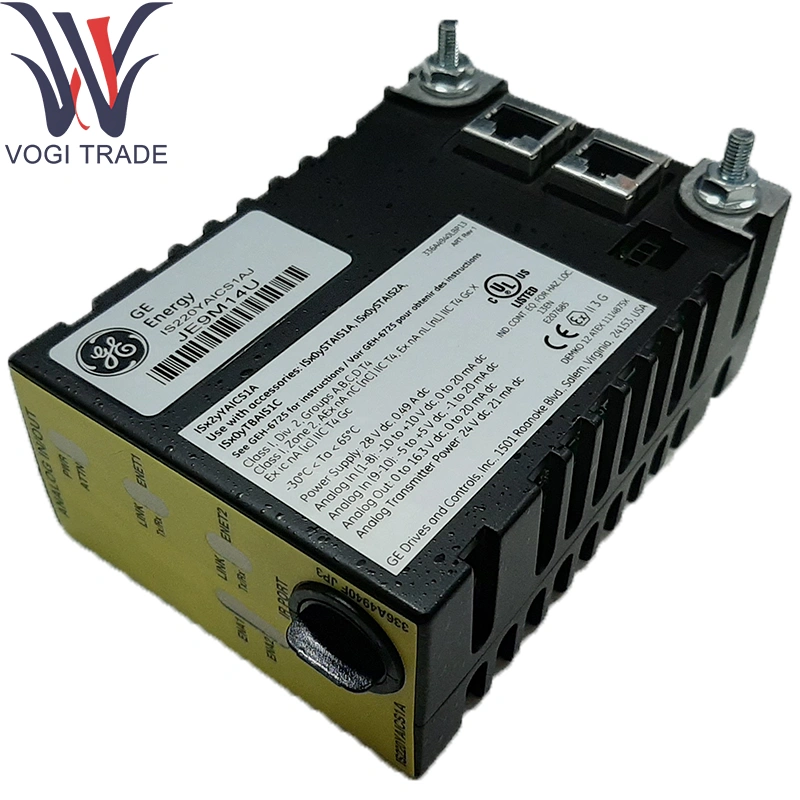

Brand: GE Description: IS220YAICS1A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: Shenzhen GE IS220YAICS1A INPUT/OUTPUT PACK ANALOG SAFETY INTEGRITY The IS220YAICS1A provides high-integrity analog current-loop sensing for safety-instrumented functions in gas-turbine control
|
Manufacture |
GE |
|
Model Number |
IS220YAICS1A |
|
Ordering Number |
IS220YAICS1A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
7326909000 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.8 kg |
Technical Parameters
Channels: 8 isolated current-input channels
Input Range: 4-20 mA (passive loop power provided externally)
Resolution & Accuracy: 16 bit; ± 0.1 % of full scale
Sampling Rate: 100 samples/sec per channel
Isolation: Reinforced channel-to-channel and channel-to-ground (>1 kV)
Filtering: Programmable digital low-pass filter (up to 50 Hz)
Protection: Overcurrent clamp to 30 mA; reverse-polarity protection
Connector: Right-angle 52-position header for pluggable terminal block
GE IS220YAICS1A Environmental:
Operating Temp: -30 °C to +65 °C
Storage Temp: -40 °C to +85 °C
Humidity: ≤ 95 % RH, non-condensing
Safety Certification: Designed for SIL 3 use in YSIL loops
Product function
GE IS220YAICS1A INPUT/OUTPUT PACK ANALOG SAFETY INTEGRITY Converts and digitizes multiple 4-20 mA safety-loop signals to Ethernet-ready data for the Mark VIeS core safety controller. Ensures deterministic, low-latency delivery of analog measurements to shutdown logic, with built-in diagnostics for open-loop and out-of-range conditions.
Core supporting modules
Core Safety Controller: IS220YSILS1B YSIL safety-I/O pack
Power Supply Board: IS210AEPSG1A for loop excitation and module power
Safety Logic Processor: IS200TCSAS1A for shutdown decision logic
Snubber & Suppression: IS400SSUPS1A for solenoid and transient suppression
Extension components
Pluggable Terminal Blocks: 8-way screw-clamp blocks keyed to prevent mis-insertion
DIN-Rail & Panel Mount Kits: Adapter clips and brackets for 35 mm rail or enclosure door
Shielding Accessories: Cable-shield termination clamps and ferrite cores for EMI protection
Spare Loop-Power Modules: External 24 V DC exciters with diagnostic outputs
Software support
GE IS220YAICS1A Configuration & Calibration:
Pre-configured loop templates in GE ControlST™/ToolboxST™
On-line zero/span calibration wizard for each channel
GE IS220YAICS1A Diagnostics & Monitoring:
Open-circuit, overcurrent, and loop-fault alarms reported via controller diagnostics and HMI
Real-time status tags accessible through OPC and Modbus gateways
Firmware: Board-level firmware maintained via Mark VIeS software updates; applied through ToolboxST™
Documentation: Covered in GE Mark VIeS System Manuals (GEH-6725R) and the YSIL I/O Installation Guide
