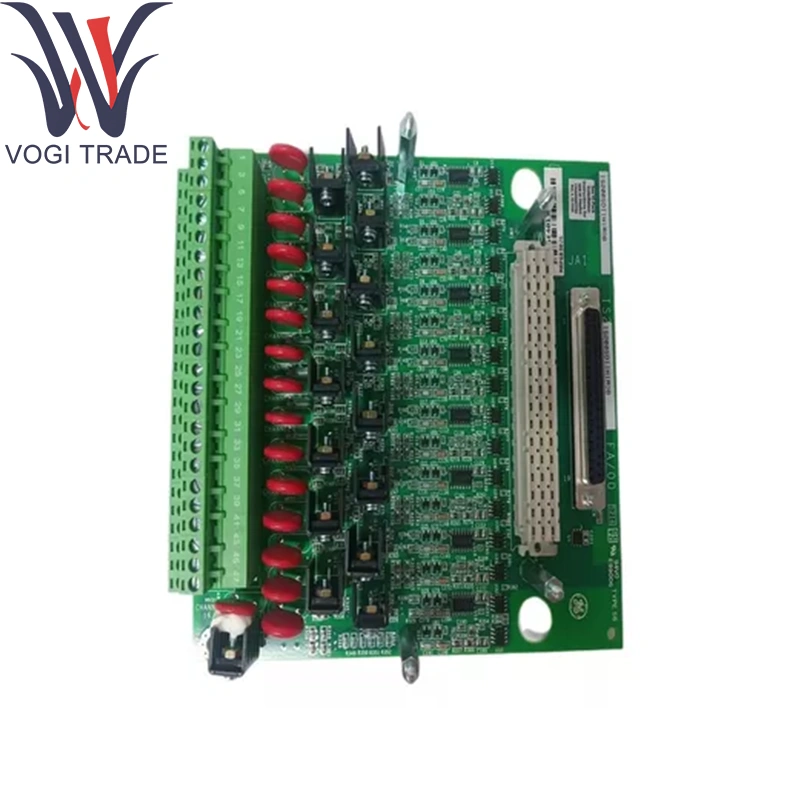

Brand: GE Description: IS230SDIIH1A (IS200SDIIH1ADB) Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 22 Payment Term: T/T Shipping Port: Shenzhen GE IS230SDIIH1A MKVIe Isolated Contact Input Assembly Simplex Designed for high-speed discrete data acquisition in gas-turbine control loops, the IS200SDIIH1ADB provides time-synchronized sampling of contact inputs (e.g., speed sensors, blade-tip probes, limit switches) with microsecond accuracy.
|
Manufacture |
GE |
|
Model Number |
IS230SDIIH1A (IS200SDIIH1ADB) |
|
Ordering Number |
IS230SDIIH1A (IS200SDIIH1ADB) |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.38 kg |
Technical Parameters
Channels: 16 isolated digital inputs
Input Type: TTL/CMOS compatible, high-speed contact sensing
Sampling Rate: Up to 10 kHz per channel; synchronized across all channels
Input Voltage Range: 0-32 V DC (nominal 24 V wetting)
Input Current: 5 mA per active channel
Debounce & Filtering: User-configurable digital filtering (0-5 ms)
Isolation: Reinforced channel-to-channel and channel-to-ground
Connector: Right-angle PCB header for 52-position pluggable terminal block
LED Indicators: Per-channel status LEDs for activity and error
GE IS230SDIIH1A Environmental:
Operating Temp: -30 °C to +65 °C
Storage Temp: -40 °C to +85 °C
Humidity: Up to 95 % RH, non-condensing
Product function
GE IS230SDIIH1A IS200SDIIH1ADB Captures and time-stamps fast discrete events, delivering deterministic digital input data over the IONet Ethernet bus to the Mark VIe CPU. Ensures precise alignment of input snapshots to support advanced control algorithms, safety interlocks, and sequence-of-events recording without software-level polling delays.
Core supporting modules
GE IS230SDIIH1A MKVIe Isolated Contact Input Assembly Simplex
I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly
Controller Modules: Mark VIe CPU family (e.g., IS200TPROH1C)
GE IS230SDIIH1A Complementary I/O Boards:
High-speed relay outputs (IS400TRLYS1B)
Analog-input modules (IS220PTCCH1B, IS230STTCH2A)
Safety-critical I/O packs (IS220YSILS1B)
Extension components
Pluggable Terminal Blocks: Screw-clamp, keyed to prevent mis-insertion
DIN-Rail & Panel Mount Kits: Adapter clips and angle brackets for 35 mm rails or control-cabinet panels
Shielding Accessories: Cable-shield clamps and ferrite cores for EMI suppression
Spare LED Assemblies: Replacement channel-status LED kits
Software support
Configuration:
Channel-sampling rates and debounce settings programmed via GE ControlST™/ToolboxST™ templates
Automatic channel mapping through backplane ID recognition
Diagnostics & Monitoring:
Real-time input-event counters and error flags accessible in HMI displays and OPC-DA tags
Sequence-of-events recording and timestamp validation via controller diagnostics
Firmware Updates: Delivered as part of Mark VIe system software; applied through ToolboxST™
Documentation: Detailed in GE Mark VIe/VIeS I/O Installation Guide and the “Synchronous Digital Input Interface” section of the I/O-Pack Reference Manual
