GE IS230TDBTH6A IS200TDBTH6ABC

Technical parameters

Input voltage: 125V DC.

Installation method: basically rail mounting.

Number of input channels: 24 sets of isolated contact inputs

Output signal type: output switch signal, drive the controlled device to work, and receive the device feedback signal to report to the host.

Protection: Each input has a filter for surge suppression and high-frequency noise reduction to ensure the stability and reliability of the equipment under voltage-intensive use.

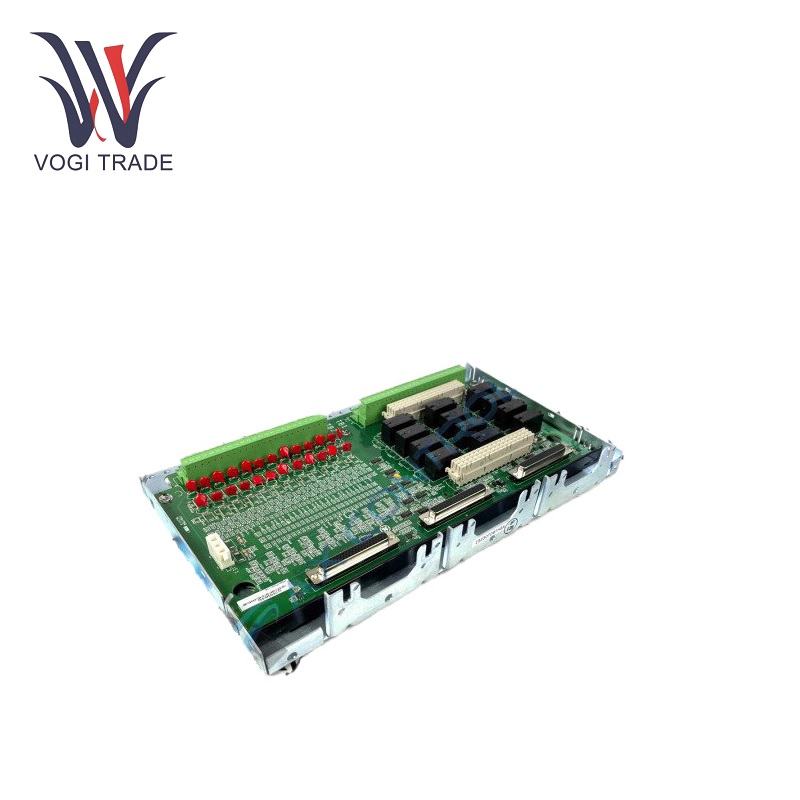

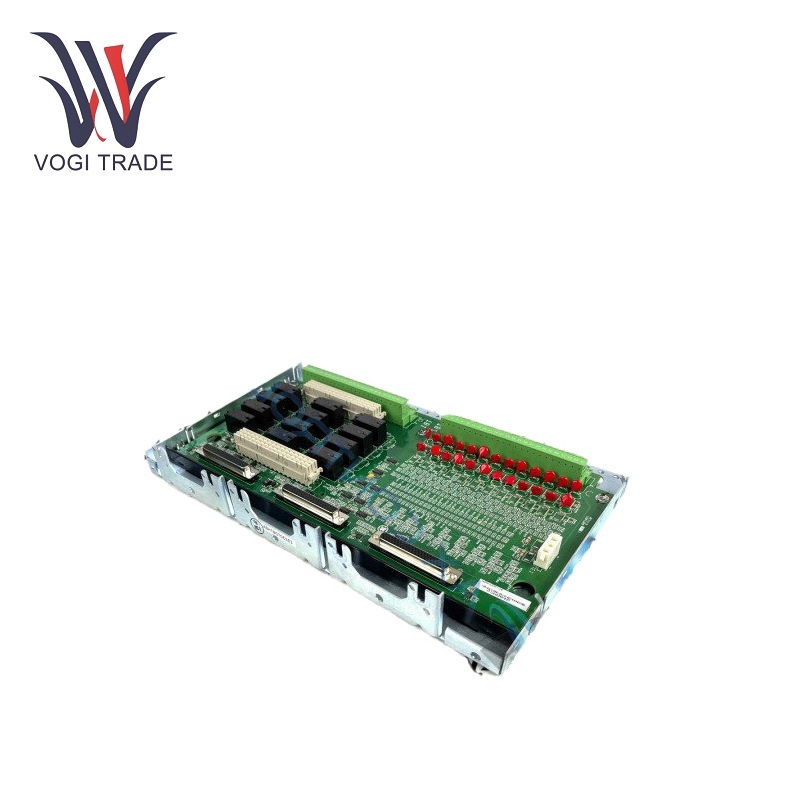

Structural composition: TB1/TB2 are two terminal blocks located on both sides of the long board. There are also three rows and four columns of twelve relays, forty-nine metal oxide varistors, three female connectors, and other resistors, diodes, capacitors and integrated circuits on the circuit board.

Features

High reliability and redundancy: GE IS230TDBTH6A IS200TDBTH6ABC  has been adjusted through rigorous testing procedures to ensure long-term high performance under harsh conditions in industrial geography. In other configurations, it may also include redundancy functions. This lack of single point failure realizes redundancy, and the connected system can continue to operate even if a component does not work or cannot communicate.

Intelligent Control and Monitoring: GE IS230TDBTH6A IS200TDBTH6ABC is able to make intelligent decisions based on input signals received from various sensors and other connected devices, and generate corresponding output signals to effectively control industrial processes. It can change the speed of the motor according to the detected load, or open the valve to the correct position to flow a certain amount of fluid according to the given process parameters.

Diagnostic and Monitoring Functions: GE IS230TDBTH6A IS200TDBTH6ABC constantly monitors its own internal environment and the status of the equipment connected to it. Therefore, when an abnormal situation occurs, it can immediately issue an alarm or send a message to the operator or maintenance personnel so that they can take timely intervention measures and implement preventive maintenance.

Data Logging and Analysis: Products with data logging functions record important information over a period of time. This data can then be accessed and analyzed later to observe trends, diagnose potential problems, and optimize the performance of the entire system.

Ease of Use: GE IS230TDBTH6A IS200TDBTH6ABC ensures simple parameter settings. Operators and technicians can access input/output mapping, control logic, communication parameters, and other settings through an easy-to-use software interface or device controls. For example, this simplified configuration can be completed in a shorter time and can be placed and designed in the required application.
