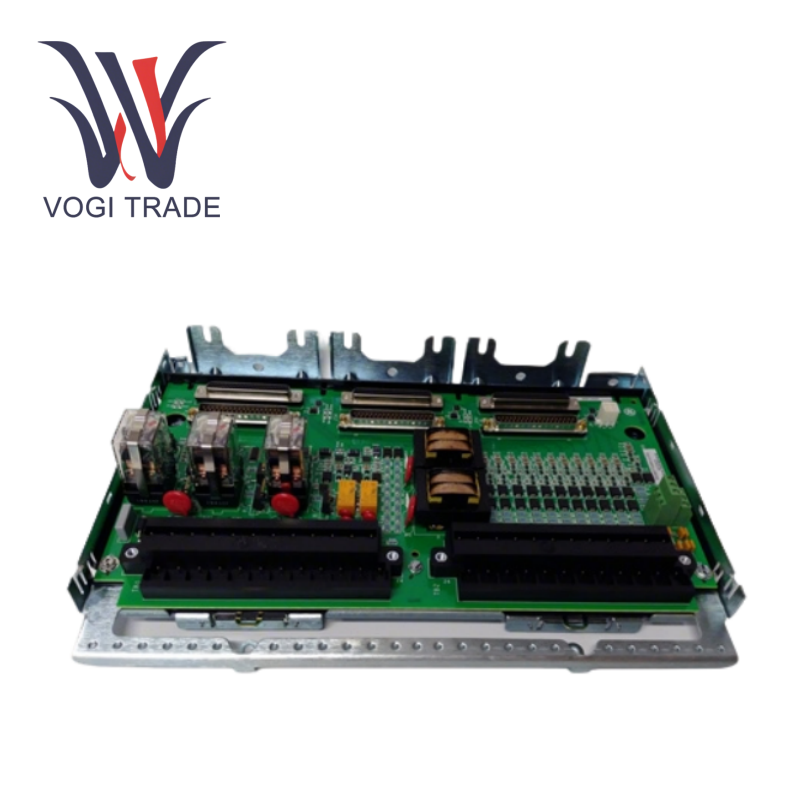

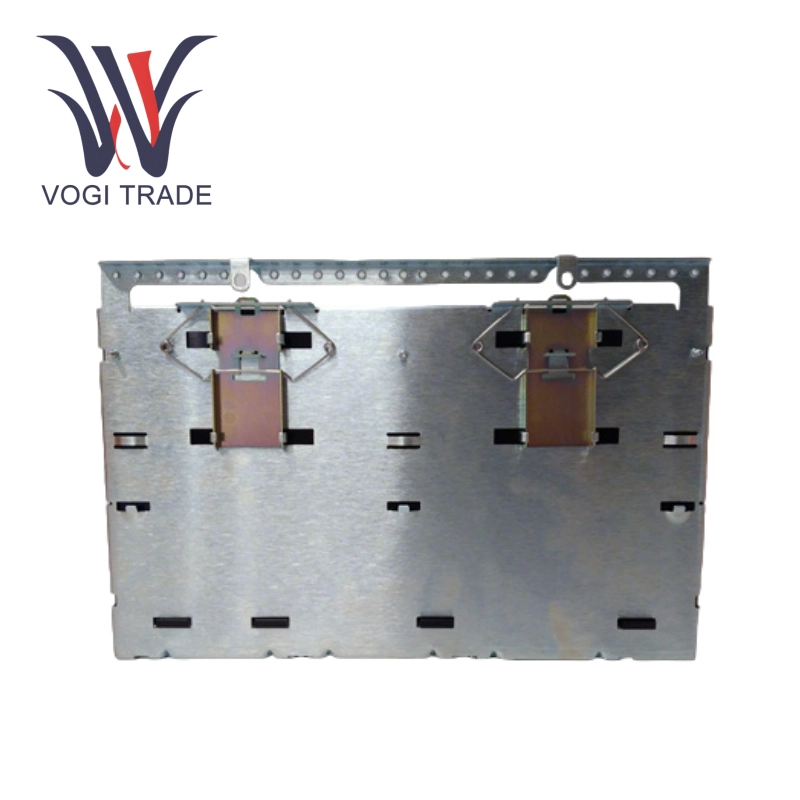

GE IS230TNRLH1B

Technical parameters

Number of outputs: 16 independent channels

Output rating: Supports 24V DC, 120V AC, 240V AC (configurable)

Isolation method: Optically isolated output, enhanced anti-interference capability

Communication protocol: Tricon Communication Module interface

Operating temperature: -40°C to 70°C (-40°F to 158°F)

Power consumption: <10W

Certification: IEC 61508 c

ompatible, SIL 2/SIL 3 capability certification

Functional features

1. High reliability and fault-tolerant design: GE IS230TNRLH1B adopts redundant architecture and harsh environment adaptability design to ensure stable operation under extreme temperature and vibration conditions, reducing the risk of system failure

2. Flexible configuration and strong compatibility: Supports multi-voltage output configuration (24V DC to 240V AC), and seamlessly integrates into Mark VIe SIS and other safety systems through TCM interface to simplify expansion and maintenance

3. Real-time diagnosis and status monitoring: The built-in diagnostic function provides real-time feedback on the health status of the module, and the optical isolation technology is combined to improve signal safety, ensuring that the GE IS230TNRLH1B responds quickly in scenarios such as fire alarms and gas leaks.

4. Safety compliance and low power consumption: Strictly follow the IEC 61508 standard to meet SIL 3 safety requirements, while <10W power consumption optimizes energy efficiency, suitable for long-term continuous operation in industrial environments.

Application scenarios

Emergency shutdown system : Rapid and safe shutdown of key equipment on oil and gas platforms.

Fire alarm and gas detection system: Linkage control of combustible gas leaks in chemical plants.

Burner management system: Safe ignition and flameout protection of boilers in power plants.

Safety interlock and trip system: Fault isolation of high-voltage equipment in nuclear power plants
