Brand: GE Description: IS230TNSVH3A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen GE IS230TNSVH3A Designed for applications requiring exceptionally high counts of discrete inputs and outputs—such as large gas-turbine plants, combined-cycle units, or skid-mounted control systems—where dense local monitoring and actuation are needed.
|
Manufacture |
GE |
|
Model Number |
IS230TNSVH3A |
|
Ordering Number |
IS230TNSVH3A |
|
Catalog |
Mark VI |
|
Description |

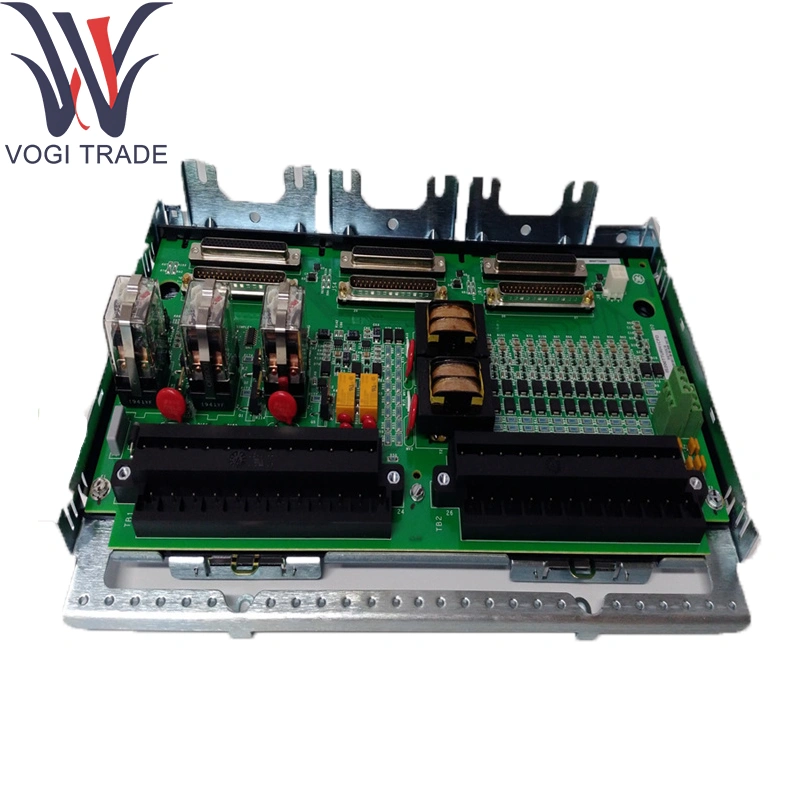

GE IS230TNSVH3A (IS200TSVCH1A) Servo Terminal Board |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
160 × 160 × 120 mm |
|
Weight |
1.2 kg |
Technical Parameters
Discrete Channels: 64 total (32 inputs + 32 outputs)
Input Type & Ratings:
Dry-contact closure detection, 24 V DC wetting (18–32 V DC range)
Nominal input current: 2.5 mA per channel
Hardware debounce: 4 ms
Output Type & Ratings:
Open-collector transistor outputs, 24 V DC nominal (18–32 V DC)
Max drive current: 0.5 A per channel
Protection: overcurrent shut-off and auto-reset
Isolation: Reinforced channel-to-channel and channel-to-ground (> 1 kV)
Diagnostics: Per-channel status LEDs for input-closed and output-on signals; fault-reporting for overload/open-load
Backplane Interface: Dual 50-pin connectors to I/O-pack carrier
Environmental:
Operating Temp: –30 °C to +65 °C
Storage Temp: –40 °C to +85 °C
Humidity: up to 95 % RH, non-condensing
GE IS230TNSVH3A meets these environmental ratings.
Product function
GE IS230TNSVH3A consolidates a large number of discrete field signals into a single, compact I/O module. Provides reliable isolation, conditioning, and diagnostics for both inputs and outputs, and communicates status and commands over the IONet Ethernet bus to the Mark VIe CPU, enabling high-density discrete control in a minimal rack footprint.
Core supporting modules
I/O Pack Carrier: IS42xPSCAH1B power/carrier assembly
Controller Module: Mark VIe CPU (e.g., IS200TPROH1C) for processing and logic
Ethernet Switch: IS420ESWB series for IONet backbone connectivity
This carrier assembly hosts the GE IS230TNSVH3A.
Extension components
Pluggable Terminal Blocks: 64-way screw-clamp blocks, keyed to prevent mis-insertion
Mounting Hardware: DIN-rail or panel-mount adapters for rack or skid installation
Shielding & Grounding: Cable-shield clamps and ferrite cores for EMI suppression
Spare Transistor Drivers: Field-replaceable driver cartridges for maintenance
These components interface with the GE IS230TNSVH3A.
Software support
Configuration: Simple channel mapping via GE ControlST™/ToolboxST™ without per-channel parameters
Diagnostics & Monitoring:
Real-time input/output status and fault counters accessible in HMI, OPC-DA tags, and controller diagnostics
Automated self-test on power-up with diagnostic reporting
Firmware Updates: Delivered as part of Mark VIe system releases; applied via ToolboxST™
Documentation: Detailed in the GE Mark VIe/VIeS I/O Installation Guide and the High-Density Discrete I/O Module Reference Manual
This software support covers the GE IS230TNSVH3A.
