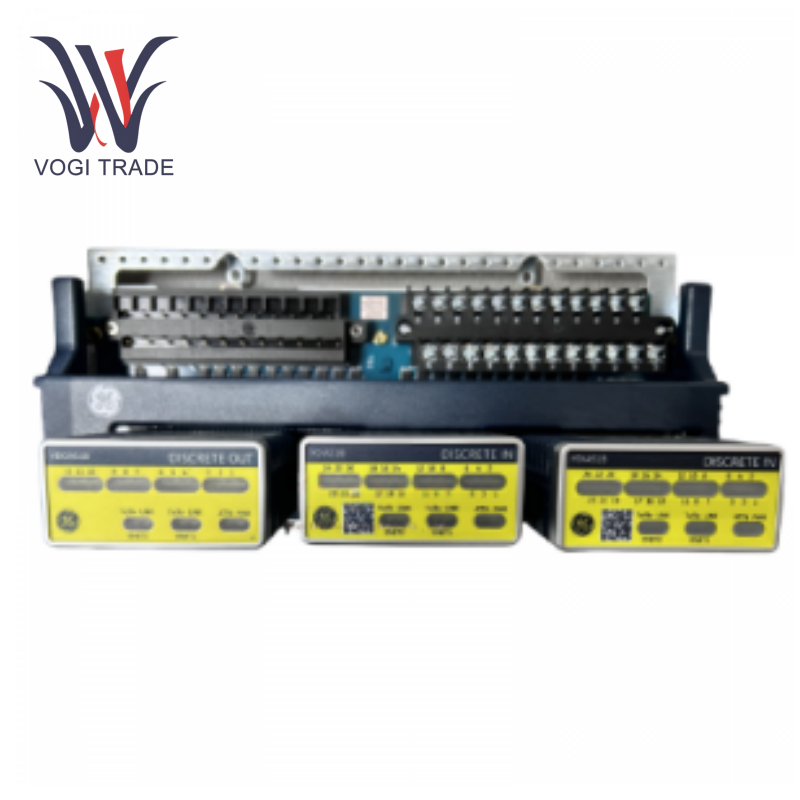

Brand: GE Description: Terminal Board Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen GE IS400TBCIS2C is designed for industrial equipment signal processing and system integration. It supports multiple signal types (such as analog, digital, thermocouple, etc.) and has electrical isolation function. It is suitable for real-time monitoring and control of key equipment such as gas turbines, steam turbines, compressors, etc.
|
Manufacture |
General Electric |
|
Model Number |
IS400TBCIS2C |
|
Country Of Origin |
USA |
|
HS CODE |
9031809090 |
|
Dimension |
20*20*6CM |
|
Packing Dimension |
25*25*10CM |
|
Weight |
1.5kg |
Technical parameters
Input voltage: 24V DC
Power consumption: ≤5W
Isolation voltage: 1500V AC
Channel type: Supports 16-channel digital input or 8-channel analog input
Sampling rate: 10 kHz
Communication protocol: Ethernet (IEEE 802.3), Modbus TCP/IP, OPC UA
Working temperature: -40℃~+70℃
Protection level: IP40
Seismic performance: Meets IEC 60068-2-6 standard
Functional features and principles
Modular expansion: GE IS400TBCIS2C supports seamless integration with 1756 series racks and XIO16T expansion modules, and flexibly expands input/output channels.
The module can be replaced without interrupting system operation through the hot-swap function.
Signal processing and redundant design: GE IS400TBCIS2C has built-in Signal conditioning circuit supports filtering, amplification and linearization of sensor signals, reduces noise interference, supports dual-machine hot standby configuration, and the main and standby switching time is ≤50ms to ensure the continuity of the control system.
Diagnosis and maintenance: The front panel integrates LED status indicators to display channel faults, communication status and power status in real time.
Compatibility and supporting products
Controller: GE Mark VIe series (such as IS410STCIS2A).
Communication module: 1756-EN2TR (Ethernet), 1756-CNBR (ControlNet).
Expansion module: VM600 XIO16T (16-channel digital input), VM600 XMV16 (vibration monitoring module).
Software support
Configuration tool: GE Proficy Machine Edition, Studio 5000 Logix Designer.
Protocol compatibility: Supports GSD file import of Bently Nevada 3500 series monitoring instruments.
