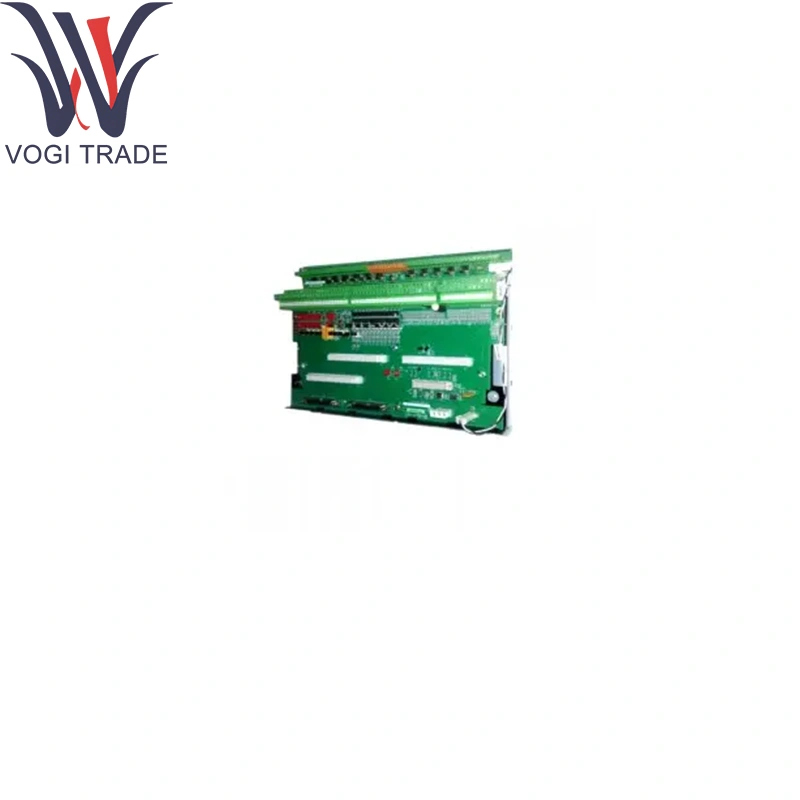

Brand: GE Description: IS400TCASH1AGD Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 10 Payment Term: T/T Shipping Port: Shenzhen GE IS400TCASH1AGD Integrates both thermocouple and analog current-loop measurements into YSIL safety loops for turbine overspeed, flame-failure, and lube-oil system trips.
|
Manufacture |
GE |
|
Model Number |
IS400TCASH1AGD |
|
Ordering Number |
IS400TCASH1AGD |
|
Catalog |
Mark VI |
|
Description |
GE IS400TCASH1AGD Core Analog Module Terminal Board |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.42 kg |
Technical Parameters
Input Channels:
6 × thermocouple inputs (J, K, T, E selectable)
6 × 4–20 mA current-loop inputs (passive)
Thermocouple Specs:
Range per type: see standard thermocouple tables (–270 °C to +1820 °C)
Accuracy: ± 0.25 °C or ± 0.1 % of reading
Resolution: 0.1 °C; Sampling: 20 samples/s
Cold-junction compensation per channel (GE IS400TCASH1AGD)
Current-Loop Specs:
Range: 4–20 mA; ± 0.1 % full-scale accuracy
Resolution: 16 bit; Sampling: 100 samples/s
Overcurrent clamp to 30 mA; reverse-polarity protection
Isolation: ≥ 1 kV reinforced channel-to-channel and channel-to-ground
Filtering: Programmable digital low-pass filters (up to 50 Hz)
Coating: Class D conformal for moisture and chemical resistance
Product function
GE IS400TCASH1AGD conditions, linearizes, and digitizes mixed thermocouple and analog-current signals within a single safety-rated I/O module. Continuously monitors sensor loops for out-of-range, open-circuit, or overcurrent faults and reports diagnostics to the core safety controller for immediate trip logic.
Core supporting modules
Core Safety Controller: IS220YSILS1B YSIL safety-I/O pack
Power Supply Module: IS210AEPSG1A for loop excitation and board power
Safety Logic Processor: IS200TCSAS1A for executing shutdown decisions (interfaced with GE IS400TCASH1AGD)
Extension components
Pluggable Terminal Blocks: 12-way screw-clamp blocks keyed to prevent mis-insertion (GE IS400TCASH1AGD)
DIN-Rail/Panel Mount Kits: Adapter clips and angle brackets for 35 mm rail or panel mounting
Shielding Accessories: Cable-shield clamps and ferrite cores for EMI/RFI suppression
Calibration Fixtures: External zero/span calibrators for field verification of both thermocouple and current loops
Software support
Configuration & Calibration:
Pre-defined safety-loop templates in GE ControlST™/ToolboxST™
On-line calibration wizards for each channel’s zero/span or cold-junction offset (applied to GE IS400TCASH1AGD)
Diagnostics & Monitoring:
Real-time loop-fault, open-circuit, and out-of-range alarms accessible via HMI, OPC-DA tags, and controller diagnostics
Self-test at power-up with fault logging in safety controller
Firmware: Board-level firmware updated through ToolboxST™ as part of Mark VIeS software releases
Documentation: Detailed procedures in the GE Mark VIeS Safety-I/O Installation Guide and the Thermocouple & Analog Safety I/O Module Reference Manual
