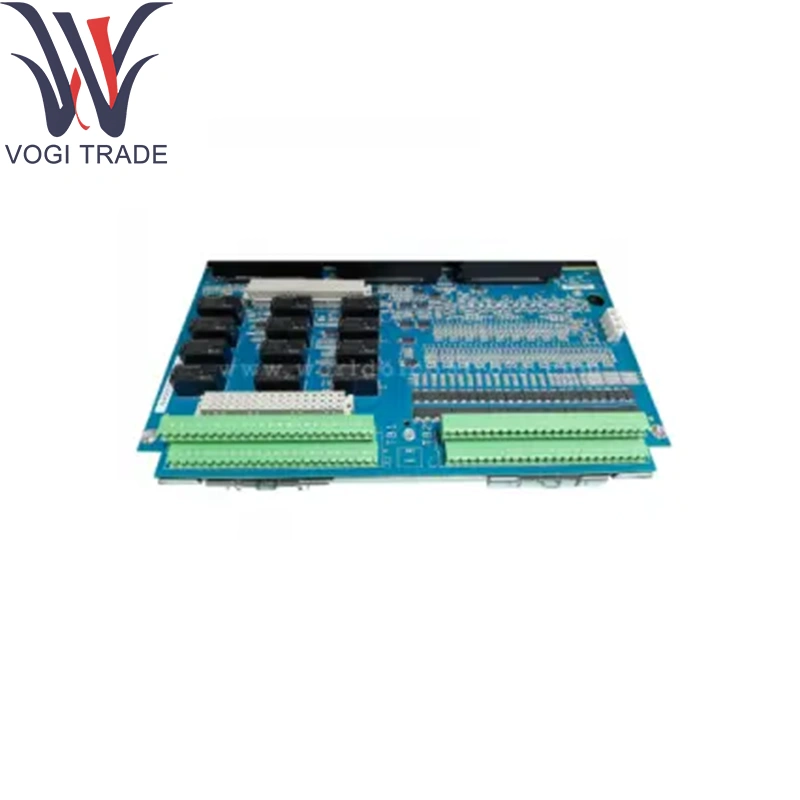

Brand: GE Description: IS400TRLYS1B IS400TRLYS1BJJ Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 12 Payment Term: T/T Shipping Port: Shenzhen GE IS400TRLYS1B Terminal Board Provides isolated, dry contact relay outputs for driving external loads—such as alarms, solenoids, lamps, and interlock devices—under control of GE Speedtronic Mark VIe/VIeS systems. It converts digital command signals on the IONet bus into reliable mechanical switching with high noise immunity.
|
Manufacture |
GE |
|
Model Number |
IS400TRLYS1B IS400TRLYS1BJJ |
|
Ordering Number |
IS400TRLYS1B IS400TRLYS1BJJ |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8479909090 |
|
Dimension |
178 × 330 × 160 mm |
|
Weight |
0.40 kg |
Output Channels: 16 Form C (changeover) relay contacts
GE IS400TRLYS1B Contact Ratings:
Maximum Switching Voltage: 250 V AC / 30 V DC
Maximum Switching Current: 2 A (AC or DC) per contact
Minimum Load: 5 V DC at 1 mA
GE IS400TRLYS1B Operate & Release Times:
Pick-Up (Operate): ≤ 10 ms
Drop-Out (Release): ≤ 5 ms
Excitation Voltage: 24 V DC nominal (operational range 18–32 V DC)
Isolation: Reinforced channel-to-channel and channel-to-ground isolation
GE IS400TRLYS1B Environmental:
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Connectors: Right-angle header for pluggable terminal blocks (48 positions)
Product function
GE IS400TRLYS1B Terminal Board Provides isolated, dry-contact relay outputs for driving external loads—such as alarms, solenoids, lamps, and interlock devices—under control of GE Speedtronic Mark VIe/VIeS systems. It converts digital command signals on the IONet bus into reliable mechanical switching with high noise immunity.
Core supporting modules
Controllers: GE Mark VIe CPU/logic modules (e.g., IS200TPROH1C family)
I/O Backplanes: Standard Mark VIe I/O pack chassis for mixed I/O module mounting
Complementary I/O Boards:
Discrete-input (contact and analog) modules
Thermocouple and RTD input boards
Digital input/output modules
Extension components
Pluggable Terminal Blocks: Screw-clamp blocks keyed for error-proof field wiring
Mounting Hardware:
DIN-rail brackets for 35 mm rail installation
Panel-mount angles with insulating spacers
Shielding Accessories: Cable-shield termination clamps for enhanced EMI protection
Spare Relays & Kits: Replacement relay cartridges and maintenance kits
Software support
Configuration: Fully passive hardware; no on-board configuration required
Diagnostics: Relay status and health reported through controller self-test and diagnostics tools
Integration: Transparent interface with GE ControlST™/ToolboxST™ and Mark VIeS application software
Documentation: Detailed in GE Mark VIe/VIeS System Manuals and I/O Installation Guide
