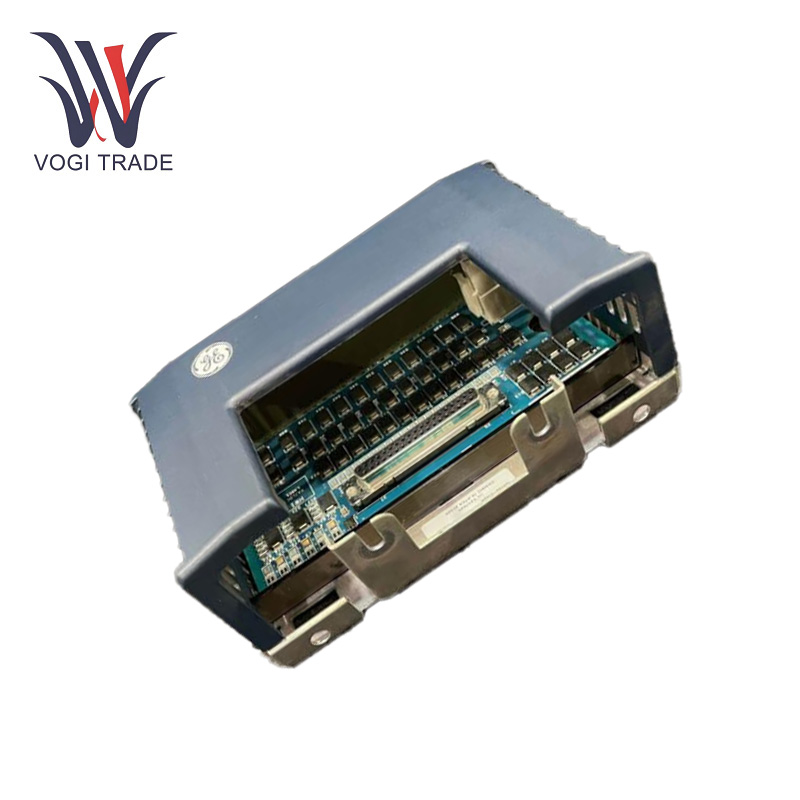

GE IS410STAIS2A

Operating Parameters

Input Voltage: 24V DC

Operating Temperature: -40°C to +85°C

Analog Inputs: The module supports 10 analog inputs, accommodating two-wire, three-wire, four-wire, or externally powered transmitters.

Analog Outputs: It provides 2 analog outputs, configurable within a 0 to 20 mA range.

Noise Suppression: Both inputs and outputs are equipped with noise suppression circuitry to prevent surges and high-frequency noise, enhancing signal integrity.

Product Features

Analog I/O Function: GE IS410STAIS2A is a simplex analog I/O terminal board and widely used in data acquisition and control. Industrial-grade sensors connected to 10 analog inputs provide real-time data from sources such as temperature sensors, pressure sensors, and flow sensors. From the processed data, two analog outputs can provide control signals to physical actuators.

System Identification: GE IS410STAIS2A has an onboard system ID chip from which it can identify itself to the system pack. This greatly simplifies diagnostics and maintenance of the system as a technician can easily find and service the board from a tightly packed industrial control system.

Signal Acquisition: The GE IS410STAIS2A obtains analog signals from transmitters and different sensors; the latter are then converted into data utilized by the control system.

Signal Equipment: GE IS410STAIS2A Provides analog output signals to actuators or other devices for precise control action.

Noise Filtering: Built in circuitry to suppress electrical noise to ensure accurate signal transmission and reduced risk of transmitting erroneous data.

Application range

Power Generation: GE IS410STAIS2A Controlling and monitoring turbine parameters in power plants.

Chemical Processing: Output of critical process variables in chemical manufacture.

Water Treatment: To monitor the quality of water treatment processes

Oil & Gas: Management of extraction and refining processes.

Troubleshooting

Input/Output Issues: If the analog inputs aren't getting data, or the analog outputs aren't producing the signals you expect, first verify your connections. This will help you make sure that there is no signal loss or wrong reading caused by loose or damaged wires. Similarly, ensure that the sensors and actuators are operating correctly. If they are defective, they may fail to send or receive the correct signals.

System Identification Problems: In case the ID chip onboard cannot identify the board to the system pack, try to reset the board. A simple power - cycle fixes them up most of the time. If the issue continues, there might be a hardware fault with the ID chip, and you might need an ID replacement.

Power - Related Glitches: related glitches such as the board showing no power, or even intermittent power - related problems, the first step is to check the power supply unit. Check voltage supply.

Signal Validation: Ensure that input and output signals are consistent and accurate.

Noise Inspection: Ensure that noise suppression features are functioning correctly to prevent signal interference.

Connection Integrity: Regularly check all connections for damage or corrosion and tighten any loose wiring.
