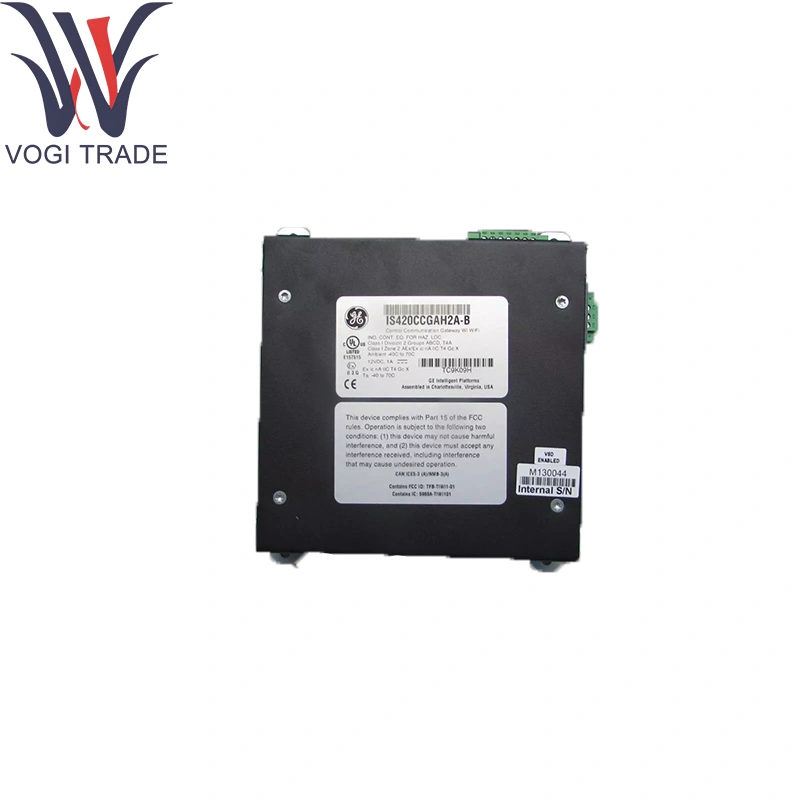

Brand: GE Description: IS420CCGAH2A IS420CCGAH2AB Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen GE IS420CCGAH2A Control Communication Gateway Module Acts as a Remote Terminal Unit (RTU) gateway, bridging GE’s IONet control bus to various fieldbus/industrial protocols (Modbus, PROFIBUS, CANopen, Foundation Fieldbus). Runs Linux to manage communications, serve web based status pages, and route data between controllers, HMIs, and field devices.
|
Manufacture |
GE |
|
Model Number |
IS420CCGAH2A IS420CCGAH2AB |
|
Ordering Number |
IS420CCGAH2A IS420CCGAH2AB |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
8471800000 |
|
Dimension |
120 mm × 85 mm × 65 mm |
|
Weight |
0.6kg |

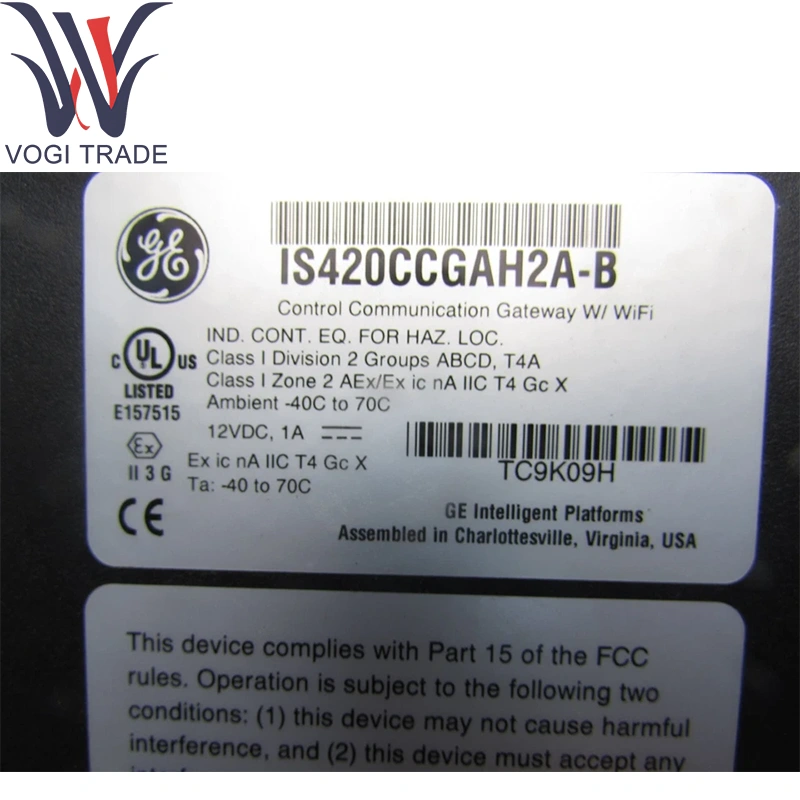

Technical Parameters
Part Number: IS420CCGAH2A (conformal-coated PCB)
Series: Mark VIe & VIeS
Description: Control Communication Gateway (CCGA)
Revision: 1 A
Operating System: Embedded Linux
GE IS420CCGAH2A Interfaces:

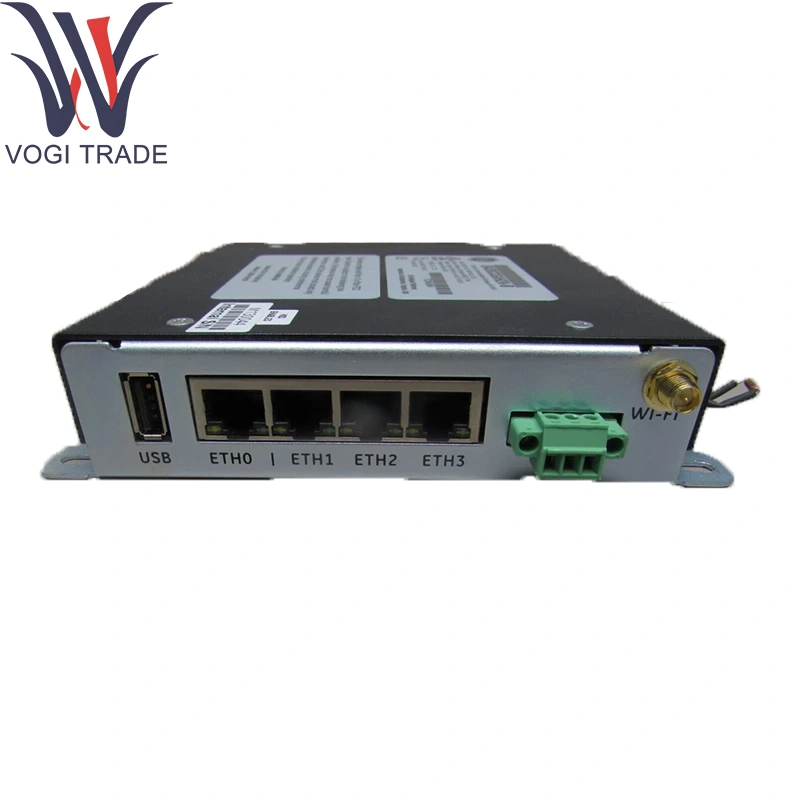

Ethernet: 4 × RJ-45 ports (labeled ETH0–ETH3)
Serial: 1 × RS-232 port; 1 × RS-485 port
USB: 1 × Type-A port
Storage: 1 × Micro-SD card slot
Wireless: Built-in Wi-Fi with external antenna connector
Power: 24 V DC nominal (via enclosure backplane)
GE IS420CCGAH2A Environmental Ratings:
Electronics: –30 °C to +65 °C (–22 °F to +149 °F)
GE IS420CCGAH2A Fieldbus Modes:
PROFIBUS Master: –20 °C to +55 °C
CANopen Master: –20 °C to +55 °C
FOUNDATION Fieldbus Linking Device: 0 °C to +55 °C
Storage: –40 °C to +85 °C (–40 °F to +185 °F)
Humidity: Up to 95% RH, non-condensing
Product function
GE IS420CCGAH2A Control Communication Gateway Module Acts as a Remote Terminal Unit (RTU) gateway, bridging GE’s IONet control bus to various fieldbus/industrial protocols (Modbus, PROFIBUS, CANopen, Foundation Fieldbus). Runs Linux to manage communications, serve web-based status pages, and route data between controllers, HMIs, and field devices.
Core supporting modules
UCPA Controller Module: Mark VIe CPU (e.g., IS420UCPAH2A)
HMI Module: Operator interface panel for local control/monitoring
Terminal Blocks & Power Supplies: Enclosure backplane providing power and I/O connections
Extension components
External Antenna: Required for Wi-Fi operation (micro BNC connector)
Cellular Modem Kit: Telit modem and SIM slot for remote 3G/4G connectivity
Door-Mounting Hardware: Brackets and screws to install CCGA on enclosure door
DIN-Rail Adapter: Optional for retrofit mounting in instrument racks
Software support
Configuration Tool: GE ToolboxST User Guide for CCGA (GEI-100848)
Control Software: Integrated with GE ControlST/Mark VIeS application suite
Network Setup: Factory-default IP on ENET0 (to controller) and ENET1 (to engineering workstation), configurable via web UI or ToolboxST
Firmware Management: Downloadable image via ToolboxST; Linux-based update mechanism
Documentation: CCGA Communication Gateway Instructions (GE Document GEK-SA-1045)
