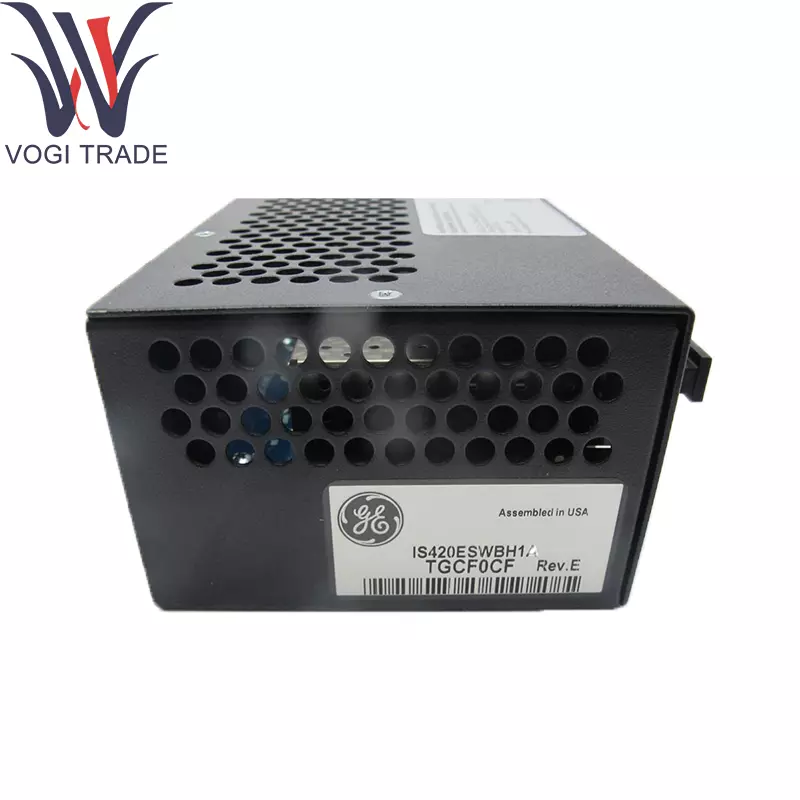

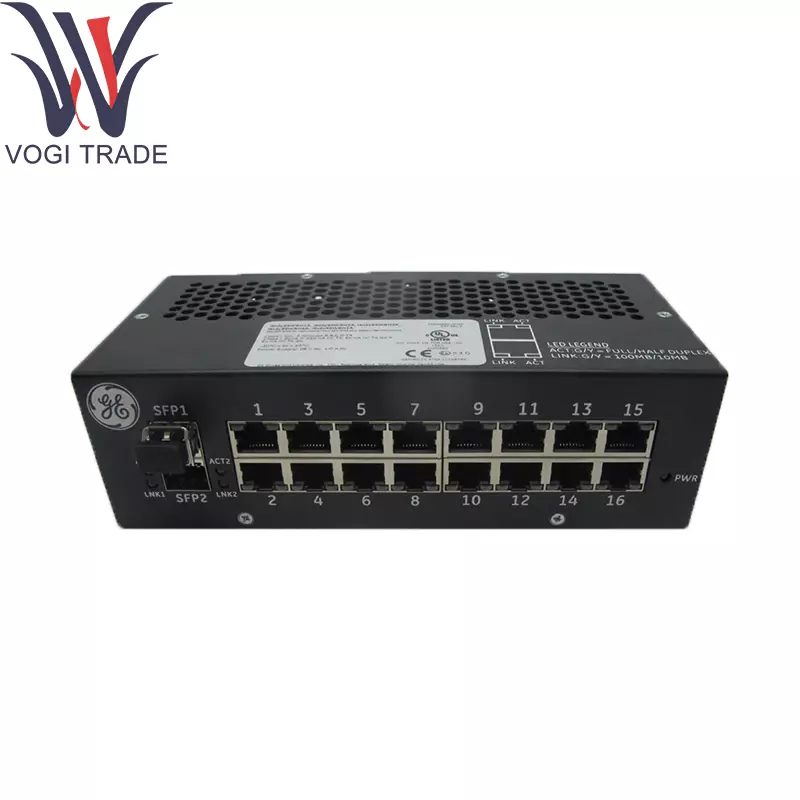

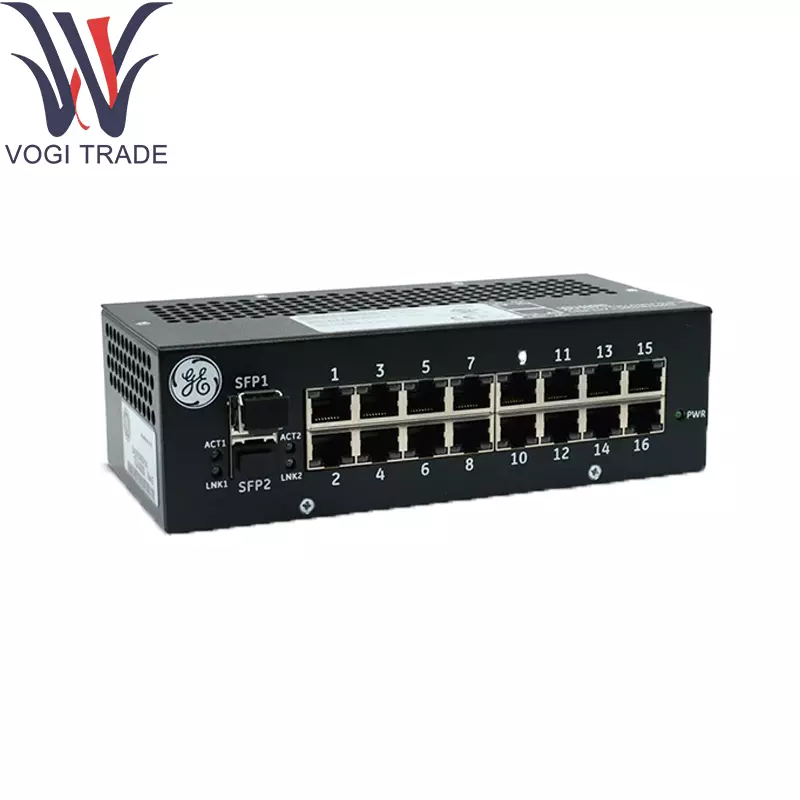

Brand: GE Description: IS420ESWBH1A Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 14 Payment Term: T/T Shipping Port: Shenzhen GE IS420ESWBH1A 16 ports Ethernet IONet Switch as an unmanaged industrial Ethernet switch in GE Speedtronic Mark VIe/VIeS control systems.
|
Manufacture |
GE |
|
Model Number |
IS420ESWBH1A |
|
Ordering Number |
IS420ESWBH1A |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
85389091 |
|
Dimension |
18.8 × 8.6 × 5.6 cm |
|
Weight |
1.6kg |
Technical Parameters
Copper Ports: 16 × 10/100Base—TX, RJ—45
Fiber Port: 1 × 100Base—FX multi—mode fiber, LC—type connector
GE IS420ESWBH1A Standards & Features:
IEEE 802.3/802.3u/802.3x compatibility
Full—/half—duplex auto—negotiation, HP—MDIX auto—sensing
256 KB packet buffer; supports up to 4 K MAC addresses
Per—port LEDs: Link, Activity, Duplex, Speed; Power status LED
GE IS420ESWBH1A Power:
24 / 28 V DC input, 1 A max (dual inputs for redundant supply)
Phoenix MC 1.5/S—STF—3.81 connectors (2 qty)
GE IS420ESWBH1A Environmental & Safety:
Operating Temp: –40 °C to +70 °C (–40 °F to +158 °F)
Storage Temp: –40 °C to +85 °C (–40 °F to +185 °F)
Hazardous Locations Rated: Class 1 Div 2 / Class 2 Zone 2 / ATEX
IEEE 1613 (G3) compliant; convection—cooled
Cabling & Mounting:
Use Cat 5e UTP with 8P8C (RJ—45) connectors
DIN—rail or panel mount (separate clips required)
Product function
GE IS420ESWBH1A 16 ports Ethernet IONet Switch Serves as an unmanaged industrial Ethernet switch in GE Speedtronic Mark VIe/VIeS control systems. Provides deterministic, low—latency packet forwarding and buffering across up to sixteen copper ports and a fiber uplink, forming the backbone of IONet communication between controllers, I/O racks, and safety modules—without on—board configuration.
Core supporting modules
Commonly integrated within a Mark VIe installation alongside:
GE IS420ESWBH1A Controllers: Mark VIe CPU and terminal modules for primary/backup control
I/O: Analog and digital I/O modules (e.g., IS230TAISH2C, IS232TBH series)
Safety: Functional safety processors and remote I/O in Mark VIeS architectures
Extension components
DIN—Rail Mounting Clips (order separately):
— 259B2451BVP1 – ESWB long—edge parallel to rail
— 259B2451BVP4 – ESWB long—edge perpendicular to rail
Alternate Fiber Variants: Other H—series models offer 0, 2 or single—mode fiber ports
Software support
Configuration: None (fully unmanaged)
Monitoring: Local LEDs only
Protocols: Transparent Layer 1/2 forwarding (no VLANs or management)
Firmware: Factory—loaded; no user updates
Documentation: GEI—100869 Mark VIe Industrial Ethernet/IONet Switches Summary Sheet and Mark VIeS System Guides available
