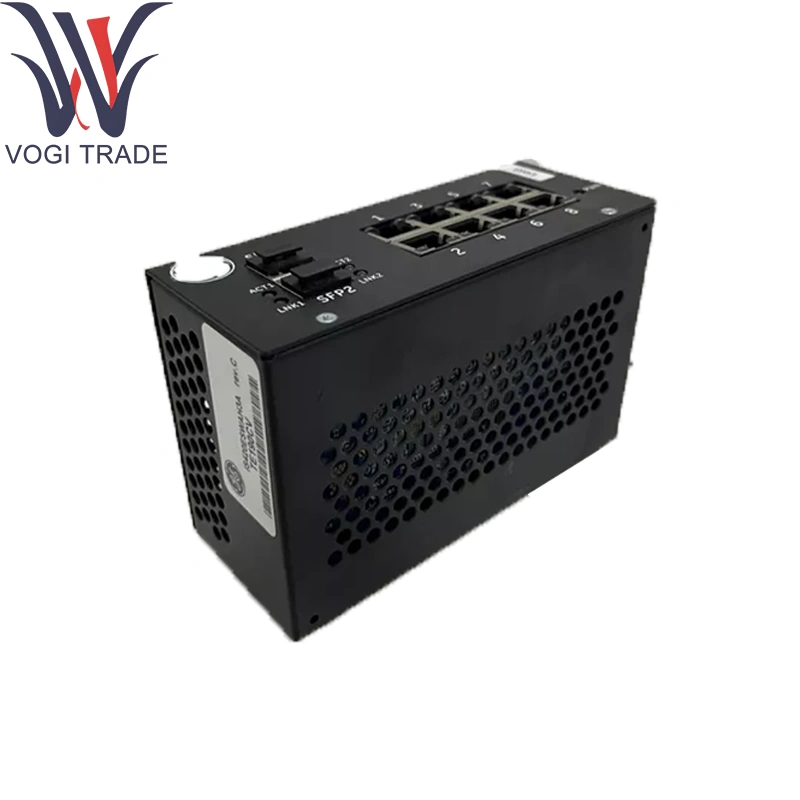

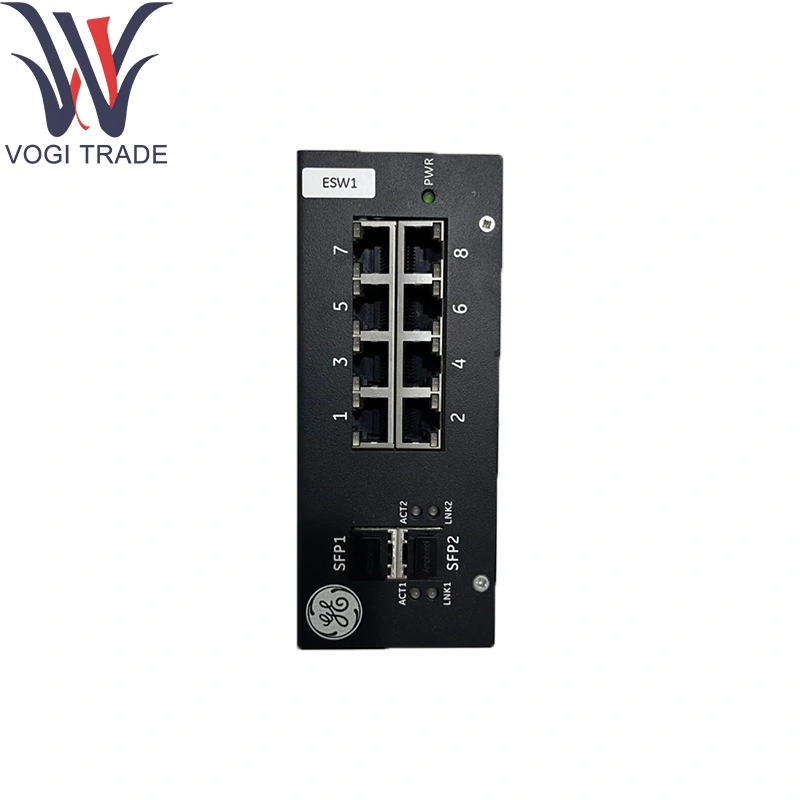

Brand: GE Description: IS420ESWBH3AE Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 15 Payment Term: T/T Shipping Port: Shenzhen GE IS420ESWBH3AE Industrial Ethernet Switch Designed for real time control networks in gas turbine and power generation plants, the IS420ESWBH3AE delivers high density copper connectivity without fiber uplinks.
|
Manufacture |
GE |
|
Model Number |
IS420ESWBH3AE |
|
Ordering Number |
IS420ESWBH3AE |
|
Catalog |
Mark VIe |
|
Country Of Origin |
USA |
|
HS CODE |
Mark VIe |
|
Dimension |
188 × 86 × 56 mm |
|
Weight |
0.77 kg |
Technical Parameters
Ports: 16 × 10/100Base-TX RJ-45 copper
Uplinks: None (H3AE variant)
Buffering: 256 KB packet buffer; supports up to 4 K MAC addresses
Auto-Negotiation & HP-MDIX: Yes (full/half-duplex)
LED Indicators: Per-port Link/Activity/Duplex/Speed; Power status

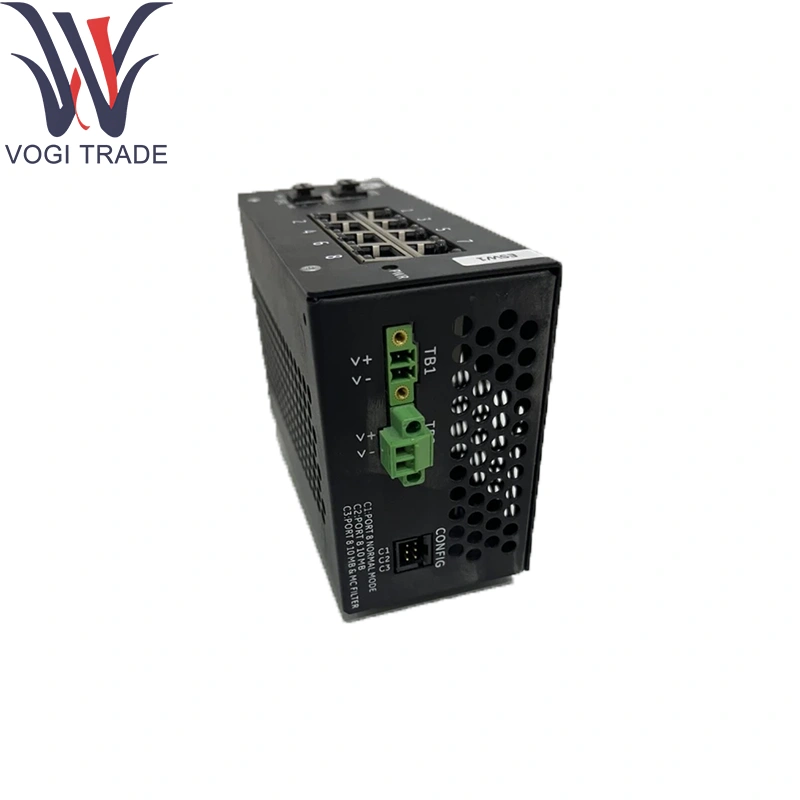

Power Input: 24/28 V DC (18-32 V DC), 1 A max; dual-input redundancy via Phoenix MC connectors
GE IS420ESWBH3AE Environmental:
Operating Temp: -40 °C to +70 °C
Storage Temp: -40 °C to +85 °C
Certified Class 1 Div 2/Zone 2/ATEX; meets IEEE 1613 G3
GE IS420ESWBH3AE Mechanical:
Conformal-coated PCB for moisture and contaminant resistance
Fanless, convection-cooled design
DIN-rail or panel mount (clips sold separately)
Product function
GE IS420ESWBH3AE Industrial Ethernet Switch Acts as a fully unmanaged Layer 1/2 switch, providing deterministic, low-latency forwarding and buffering of Ethernet packets. Enables plug-and-play deployment for critical control loops without any user configuration or management overhead.
Core supporting modules
Controller Boards: Mark VIe CPU and terminal modules (e.g., IS200TPROH1C, IS200TTURH1C)
I/O Packs: Analog, discrete, relay, and safety I/O modules (e.g., IS230TAISH2C, IS400TRLYS1B, IS220YSILS1B)
Safety Devices: Functional safety interface modules in Mark VIeS configurations
Extension components
Mounting Clips:
259B2451BVP1 (long-edge parallel)
259B2451BVP4 (long-edge perpendicular)
Alternate Variants: ESWB H-series models (H1A-H5A) offering up to two fiber uplinks
Spare Parts: Replacement connectors, conformal-coating kits, and enclosure accessories
Software support
Configuration: None (unmanaged)
Monitoring: Local status LEDs only
Protocols: Transparent Ethernet forwarding; no VLAN, SNMP, or CLI support
Firmware: Factory-loaded; no field upgrades
Documentation: GE Mark VIe Industrial Ethernet/IONet Switches summary sheet and Mark VIeS system manuals
