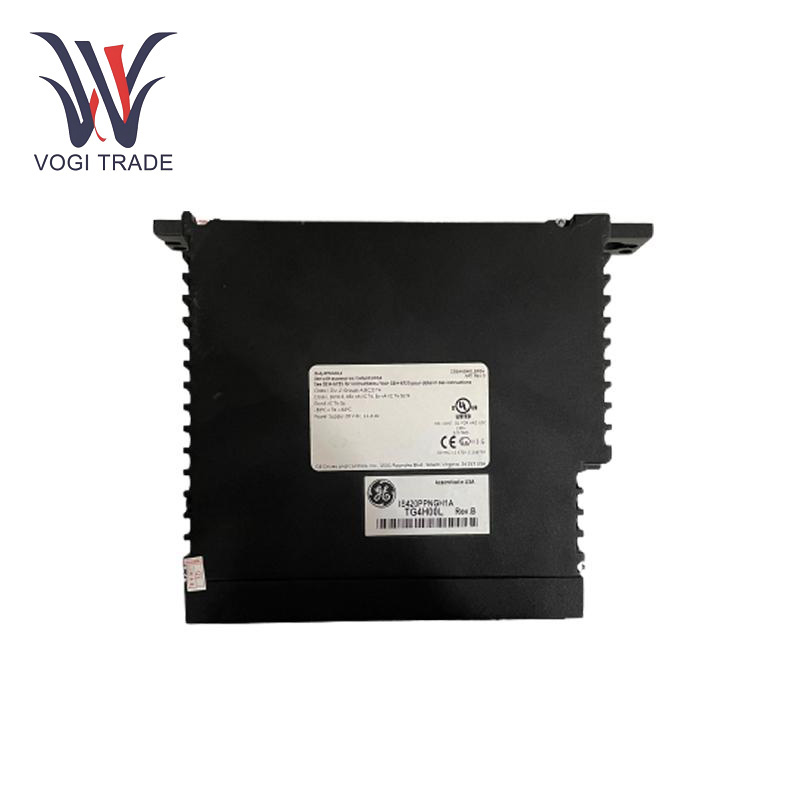

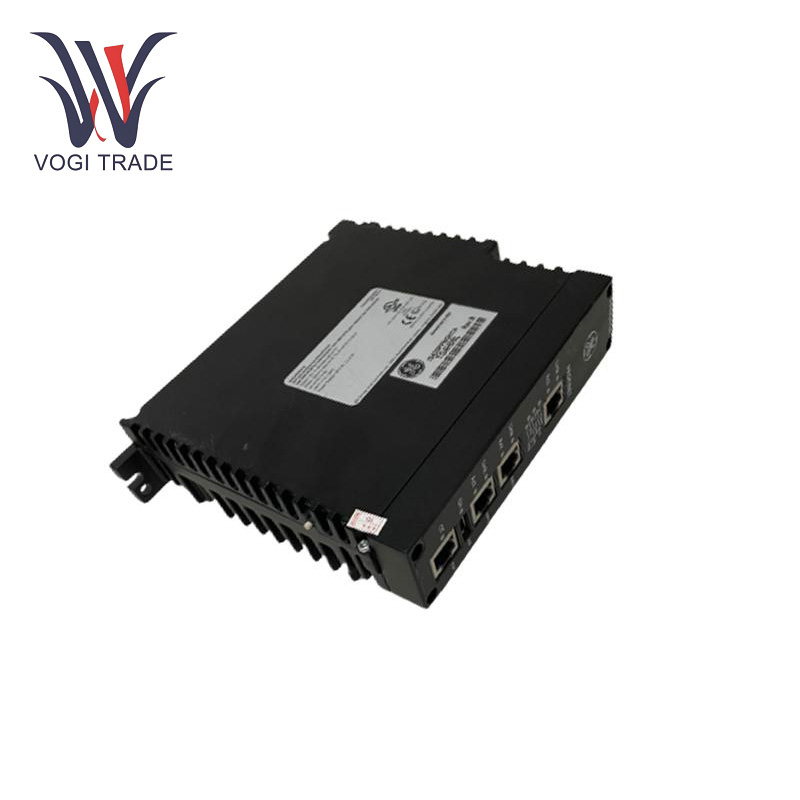

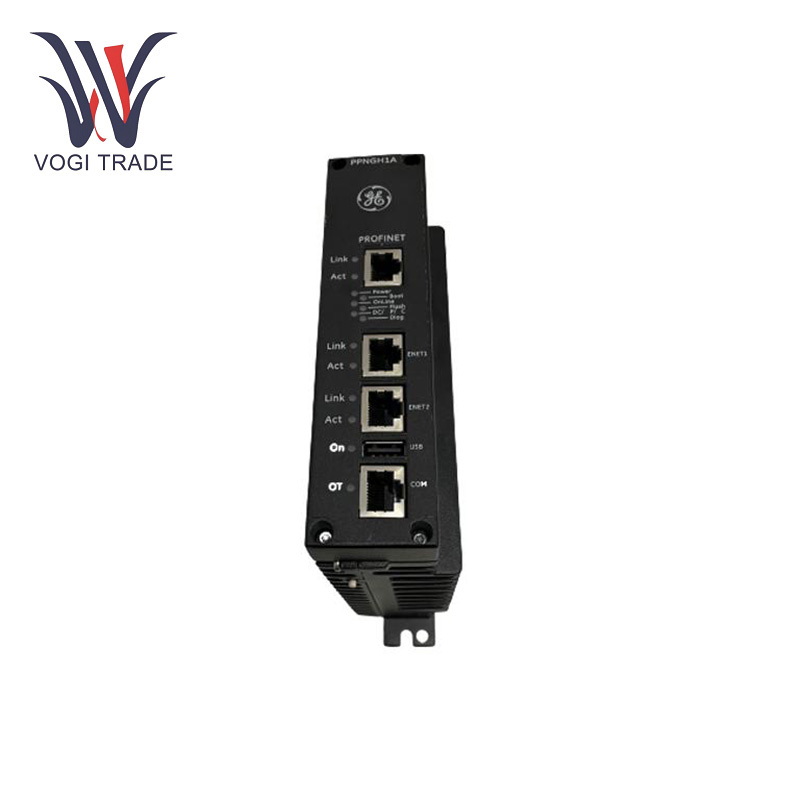

GE IS420PPNGH1A

Operating Parameters

Processor: 1066 MHz EP80579 Intel processor.

Memory: 256 MB DDR2 SDRAM.

Operating System: QNX Neutrino.

Power Supply: 24 V DC.

Operating Temperature: -20°C to +60°C.

Power Consumption: Low power consumption design to ensure energy efficiency and reduce heat generation.

Product Features

Communication Interface:The GE IS420PPNGH1A is a system that connects Mark VIe controllers to PROFINET I/O devices for high-speed data sharing.

Protocol Conversion: Convert data between various communication protocols to gain interoperability within heterogeneous industrial networks.

System Integration: Expands the functionality of the Mark VIe system by providing integration with almost any industrial automation product.

Profinet Controller: The GE IS420PPNGH1A can act as a Profinet controller, allowing it to connect to and control other Profinet - compatible devices within an industrial network. It is capable of exchanging control commands, status information, and data with sensors, actuators, and other controllers.

Gateway Functionality: One of the primary functions is being a gateway. The new gateway simplifies communication between Profinet and other network/protocol types. This is very useful in industrial setups where integration needs to be done with various legacy systems or equipment using communication standards other than Profinet.

Routing and Processing of Data: The GE IS420PPNGH1A handles the internal and external routing of data. Its job is to look at the destination addresses of data packets coming from Profinet devices and route the packets accordingly. Moreover, it supports some basic data filtering tasks.

Installation

Mounting: To mount the GE IS420PPNGH1A, you'll need to panel - mount it vertically. This vertical mount orientation is critical for the air circulation around the module, which is air - cooled. It has no integrated battery or fan, so it gets cooled by the air movement, natural or forced, in the installation environment. All this should be produced in the installation location, being sure that it already does not obstruct the air circulation near the module.

Network Connection: For a Profinet network, use suitable Ethernet cables to connect. A device such as a low-cost, unmanaged switch is generally attached to the module such as ESWA 8 - port unmanaged switch or ESWB 16 - port unmanaged switch. Keep in mind that when both Ionet and Profinet are enabled, they cannot be supported by the same switch.

Power link: Please connect 24V DC power supply to the terminal of the module. Ensure all connections are tight to avoid any loss of power. Make sure to double check all the connections and make sure there are no loose wires or incorrect polarities before powering on the module.

Application range

Power Generation: GE IS420PPNGH1A Monitoring and controlling turbine operations in power plants.

Oil and Gas: Process Management for Extraction and Refining

Chemical Processing: Managing the production of different kinds of chemicals.

Water Treatment: Control of water purification and distribution system

Troubleshooting

Perform User Activity Monitoring: Continuously monitor for unusual behavior.

Connection Checks: Verify the tightness of all wiring connections and look for signs of corrosion or damage.

Software Updates: Regularly update application code and the operating system with the latest patched versions.

Environmental Conditions: Confirm that the environment of the device is within the declared temperature and humidity levels.

Power Supply Check: Power Supply Inspection Make sure input voltage falls within the limits.
