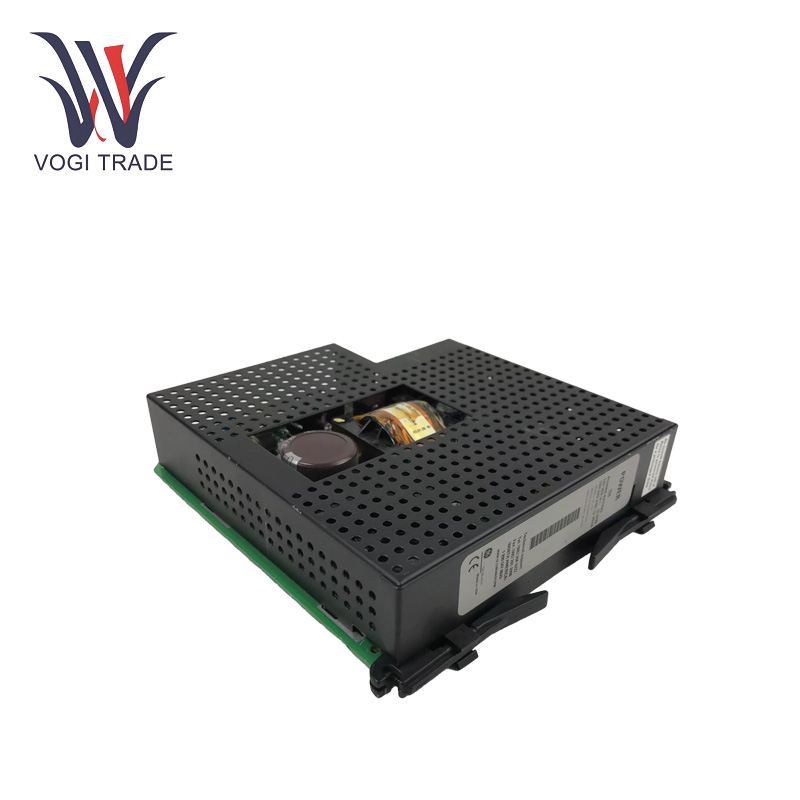

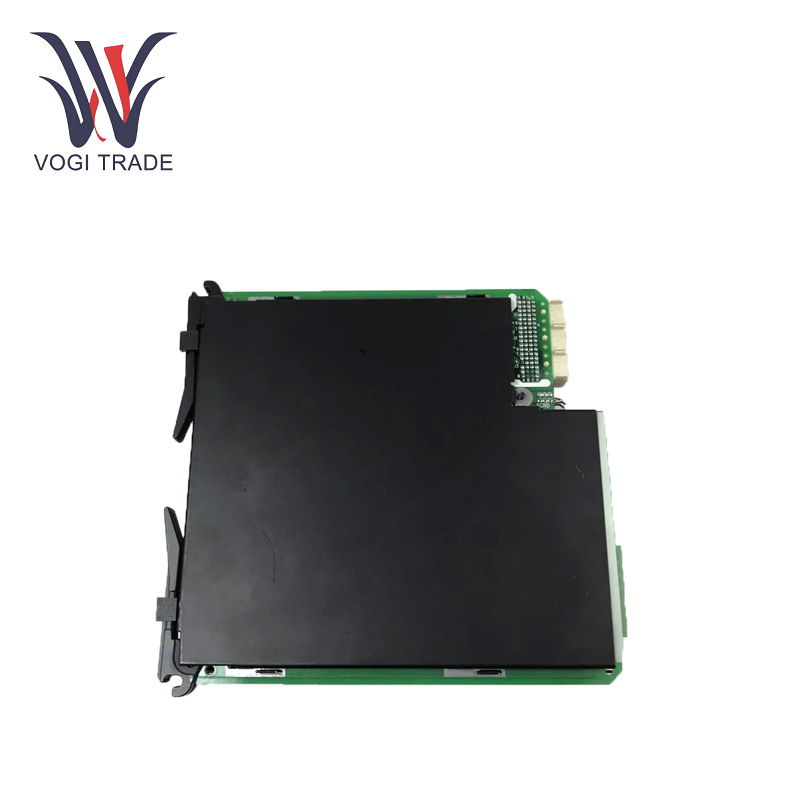

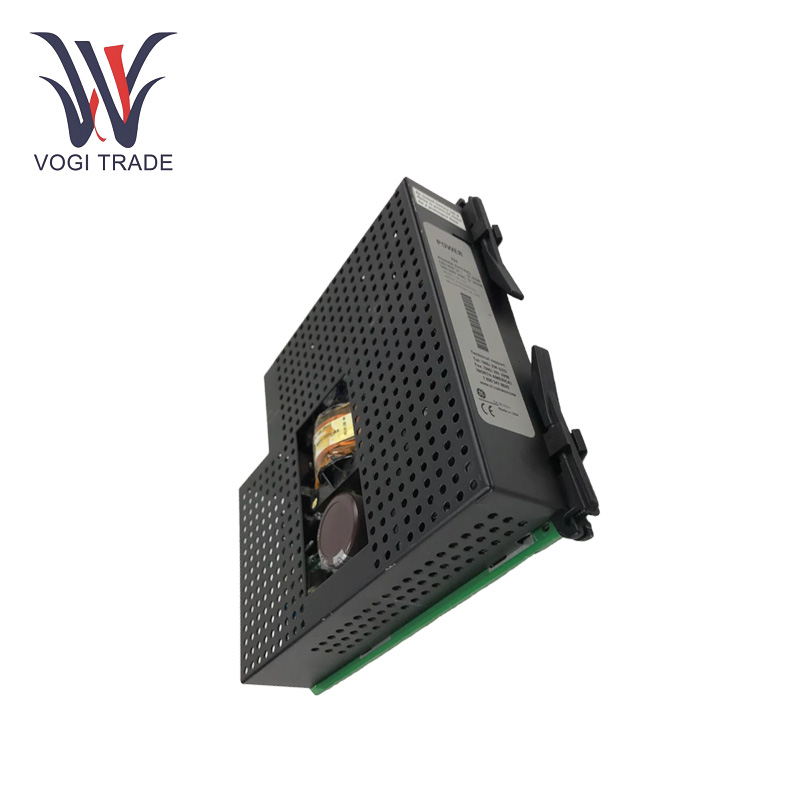

GE UR1HH

Rated Power: 125-250V DC; 100-240V/50/60Hz AC.

Input Voltage Range: 88 to 300V DC.

Input/Output Channel Rated Voltage: 24Vdc.

Rated Current: 2A.

Operating Temperature Range: -20 to 65°C.

Digital Input Channels: 8 input channels.

Relay Outputs: 2 relay outputs.

Product Features

Instantaneous Latch Technology: GE UR1HH eliminates the continuous activation of the fan relay, which otherwise causes difficulties in calibrating the fan; this is where the module's 8 digital input channels come into play, allowing GE UR1HH to process digital signals from different sensors, switches or devices. These signals can be analyzed and passed to the controller for evaluation and decision making.

Relay Output Control: Two relay outputs are used to control external devices. These relays are used to switch high-power loads, provide isolation between control and load circuits, and protect the module and other components from voltage spikes or short circuits.

Compatibility: The flexibility to configure each digital input channel as a source or sink also expands the module's compatibility with a wide range of digital devices. Configurable channels can be applied to common types of sensors or switches connected when the device is implemented to further simplify system design and installation.

DIN Rail Mounting: The GE UR1HH is specifically designed to be easily mounted in a DIN rail and is removable from the control panel. This simple installation process reduces installation time and space requirements and facilitates expansion and maintenance of the control system.

Application Scope

Company: The GE UR1HH is used to process information related to serialization and other verification. It is designed to monitor the status of equipment such as motors, pumps, and conveyors to determine whether they are on or off, and use relay outputs to turn equipment on or off. It can also be used in applications in the chemical, pharmaceutical, food and beverage, and automotive markets.

Building Automation: In building automation systems, the GE UR1HH can be used to control lighting, HVAC systems, and access control systems. Occupancy sensors, light switches, and temperature sensors are connected to digital input channels, and relay outputs turn lights on or off, start air conditioning units, and open and close doors.

Safety and Security: The GE UR1HH can be used in safety and security systems to monitor the status of safety devices such as emergency stop buttons, fire alarms, and intrusion detectors. It is used to output alarm relays, which can trigger alarms, shutdown equipment, emergency response systems, etc. to protect the safety of people and property.

Power Generation and Distribution: In the field of power generation and distribution systems, the GE UR1HH can be used to monitor the status of power equipment such as generators, transformers, and circuit breakers. The relay output can provide control signals to external devices such as switches and relays, allowing the system to operate as a complete data acquisition and control device.
