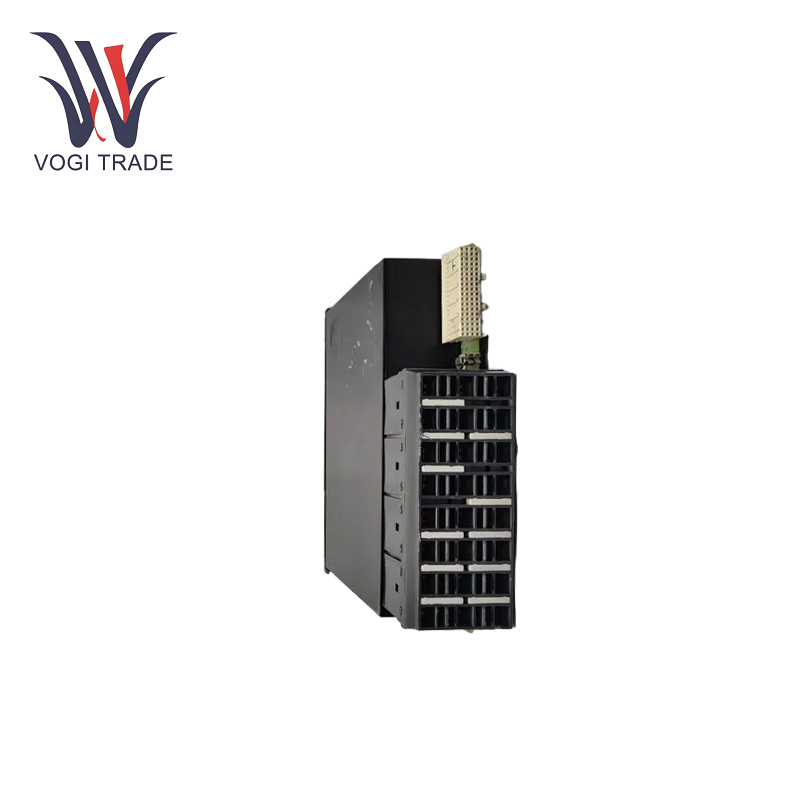

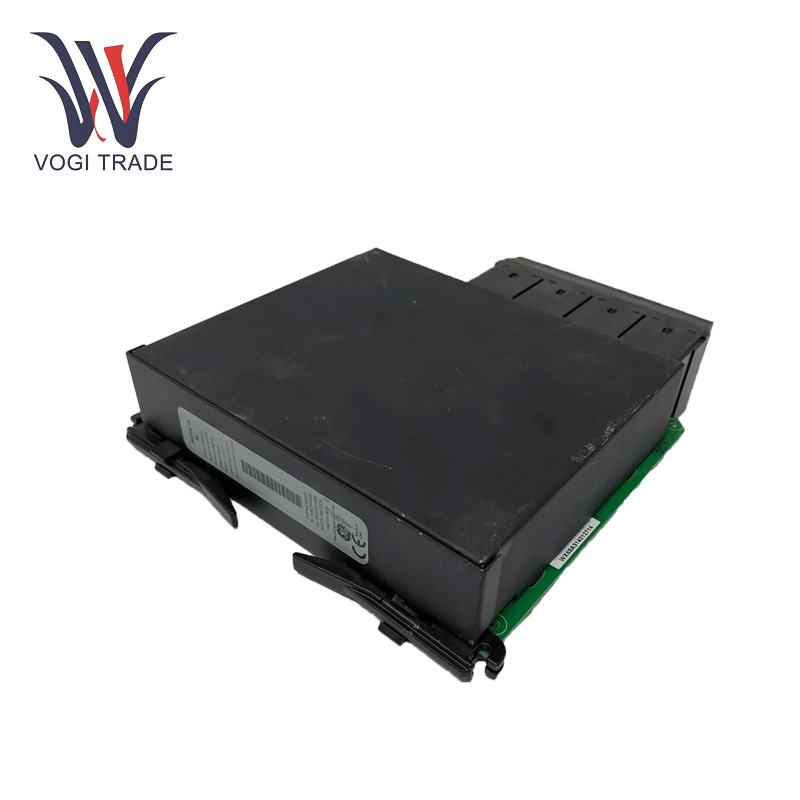

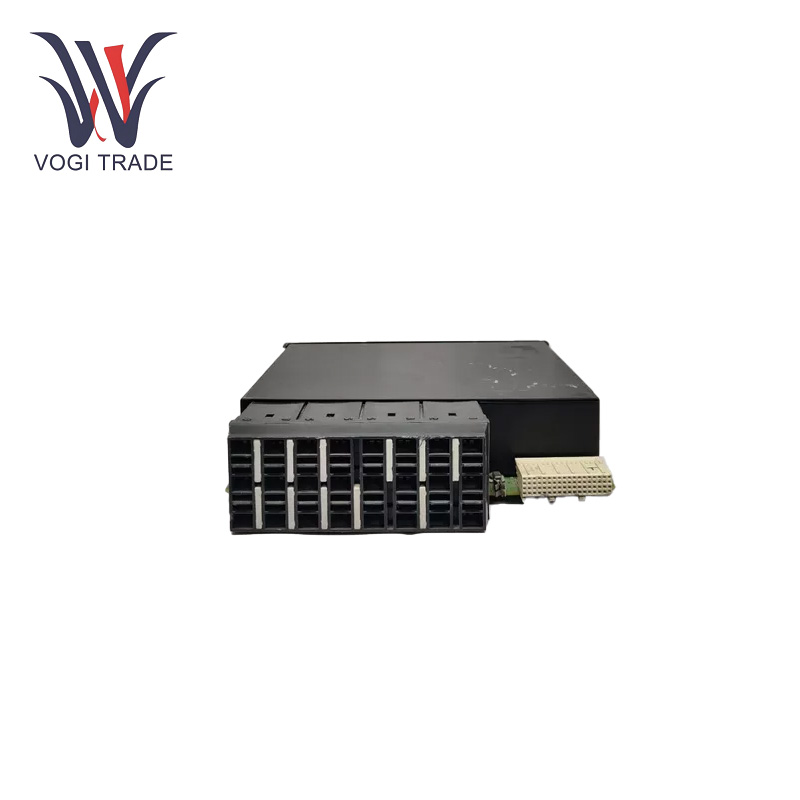

GE UR6LH

Working Parameters

Working Voltage: 100-240V AC (50/60Hz) or 125-250V DC input.

Output: The output can accept voltages up to 10 volts or currents up to 20mA.

Operating Temperature Range: -20°C to 65°C.

Sampling Rate: 1kHz to 10kHz.

Response Time: Within 10ms to 20ms.

Product Features

Digital I/O Function: The GE UR6LH has two Type A (current, voltage optional) and two Type C outputs and eight contact inputs. This diverse connection method enhances the overall versatility of the UR system, making it easy to connect with other devices and systems. The module contacts can be wet or dry, and they work with the overall relay function to provide the correct data, which the relay can later use to record parameters and initiate protection sequences.

Protection and Monitoring: The GE UR6LH continuously monitors the electrical parameters of the system and triggers corresponding protection actions when abnormal conditions are reached to prevent equipment damage and system failure. Capable of monitoring parameters: overcurrent, overvoltage, undervoltage, phase sequence, alarm signal, trip output.

Communication function: GE UR6LH supports communication interfaces such as RS485 and Ethernet, enabling it to communicate with other devices in the system, such as PLC, HMI and SCADA systems. It is compatible with well-known communication protocols such as Modbus RTU and TCP/IP, allowing integration into industrial networks and remote monitoring and control.

Data acquisition and recording: GE UR6LH is able to accurately collect and record various electrical parameters and system status information, such as voltage, current, power, energy consumption, event logs, etc.

Automatic retransmission: GE UR6LH models can optimize control logic in user-programmable logic. The software interface allows users to configure various operating conditions, protection limits and control sequences, making this module suitable for a variety of applications.

Application Range

Power generation and distribution: GE UR6LH is commonly used in power plants and substations to monitor and protect power equipment, including generators, transformers and switchgear. Real-time monitoring of the electrical parameters of the equipment, through fault monitoring and abnormal monitoring, can take timely protection measures to ensure the safe and stable operation of the power grid.

Programming PLC: GE UR6LH is used to program PLC (Programmable Logic Controller) for factory automation. Through high-speed catch-up sampling and precise control, the production line operates normally, improves production efficiency, and improves production quality and productivity.

In building automation: GE UR6LH can be used for the control and monitoring of lighting systems, HVAC systems, and elevator systems in building management systems. Automatic adjustment of lighting intensity and temperature is based on actual needs, improving energy efficiency and indoor comfort.

System Overview: GE UR6LH is used in inverters, converters, and other power delivery systems in solar power plants, wind farms, etc. It ensures efficient energy conversion and transmission of decentralized renewable energy and promotes the stability and reliability of power generation systems.
