Brand: Vibro-Meter Description:Galvanic Separation Unit Condition: New Warranty: 1 year Inventory Qty: 50 Payment term: T/T Shipping Port: Xiamen The GSI127-021 244-127-000-021-A2-B01 is also compatible with industry-standard IEPE sensors such as the CE620, CE630 and PV660 vibration sensors, and 4 to 20 mA loop-powered sensors such as the CE687 and PV685 vibration sensors.
|
Manufacture |
Vibro-Meter |
|
Model Number |
GSI127-021 |
|
Ordering Number |
244-127-000-021-A2-B01, 244-127-000-021-A2-B05 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8537109090 |
|
Dimension |
10cm*10cm*8cm |
|
Packing Dimension |
12cm*12cm*10cm |
|
Weight |
0.8kg |
Product Specifications and Parameters
Product Model: GSI127-021 244-127-000-021-A2-B01 and 244-127-000-021-A2-B05
Brand: Meggitt (Vibro-Meter)
Power Supply: 18 to 30 VDC
Power Consumption: ≤80 mA under no load; 20 mA on sensor side; ≤120 mA under load
Isolation Voltage: 4 kV RMS between sensor and monitoring sides; 50 V RMS between power supply and output signal
Operating Temperature: -40℃ to +70℃ (-40℉ to 158℉)
Storage Temperature: -40℃ to +85℃ (-40℉ to 185℉)
Physical Dimensions: Fits TH 35 DIN rail mounting (EN 50022/IEC 60715 standard)
Housing Material: Polyamide PA 66 GF 30
Weight: Approx. 140 grams
Protection Features: Vibration and shock resistant, compliant with... IEC 60068 standard
Recommended related products
GSI127-021 244-127-000-021-A2-B01 and 244-127-000-021-A2-B05
To build a complete vibration monitoring system, the following products are recommended:
Sensors: CE620 / PV660 (IEPE type), CExxx (piezoelectric type), VE210 (velocity type).
Signal conditioners: IPC707 (charge amplifier), IQS9xx (displacement preamplifier).
Mounting accessories: TH 35 standard DIN rail, explosion-proof junction box (for installation in hazardous areas).
Monitoring system: VM600 mechanical protection system, VibroSight condition monitoring software.

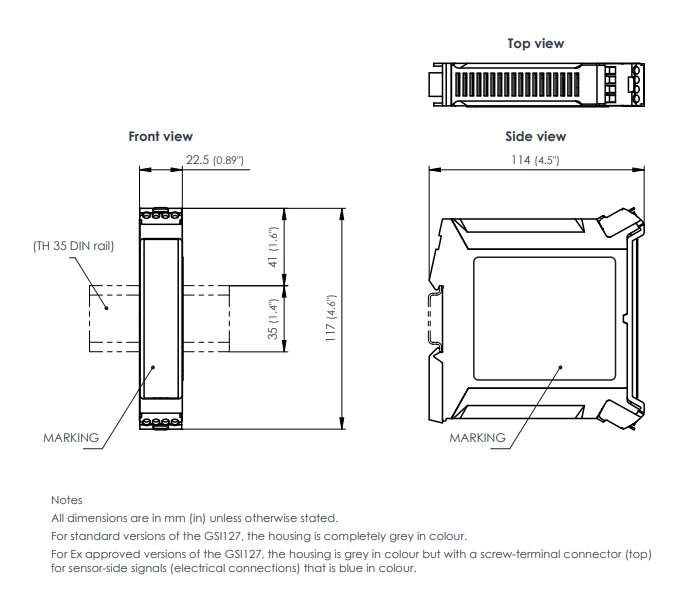

MECHANICAL DRAWINGS
