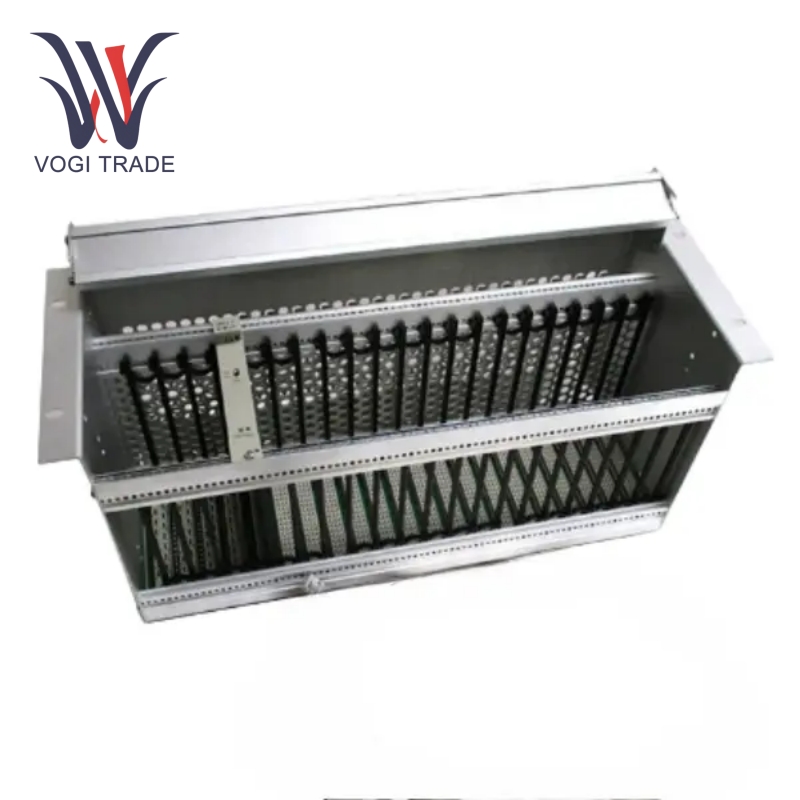

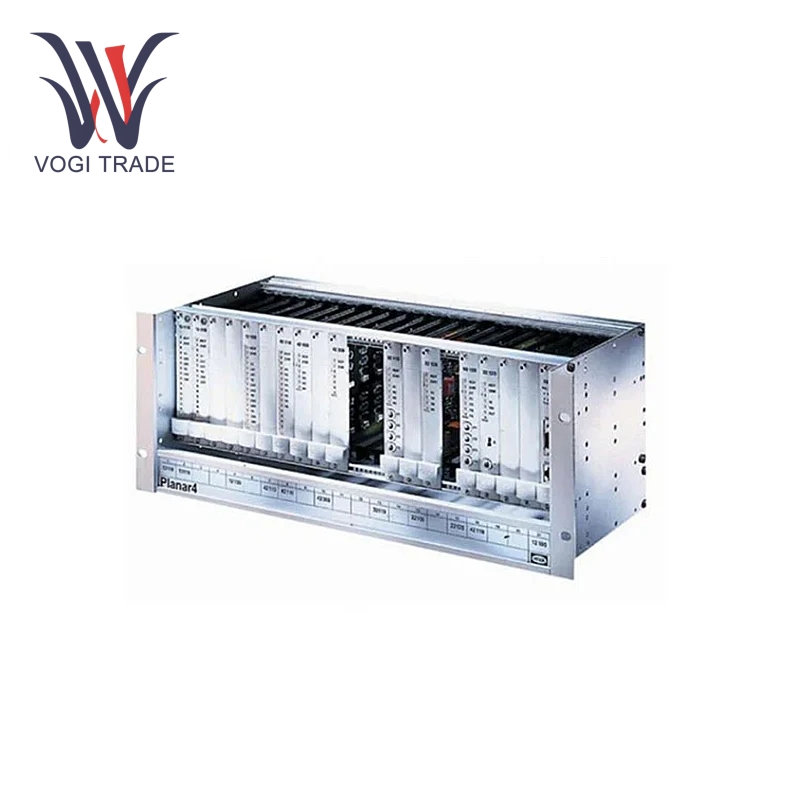

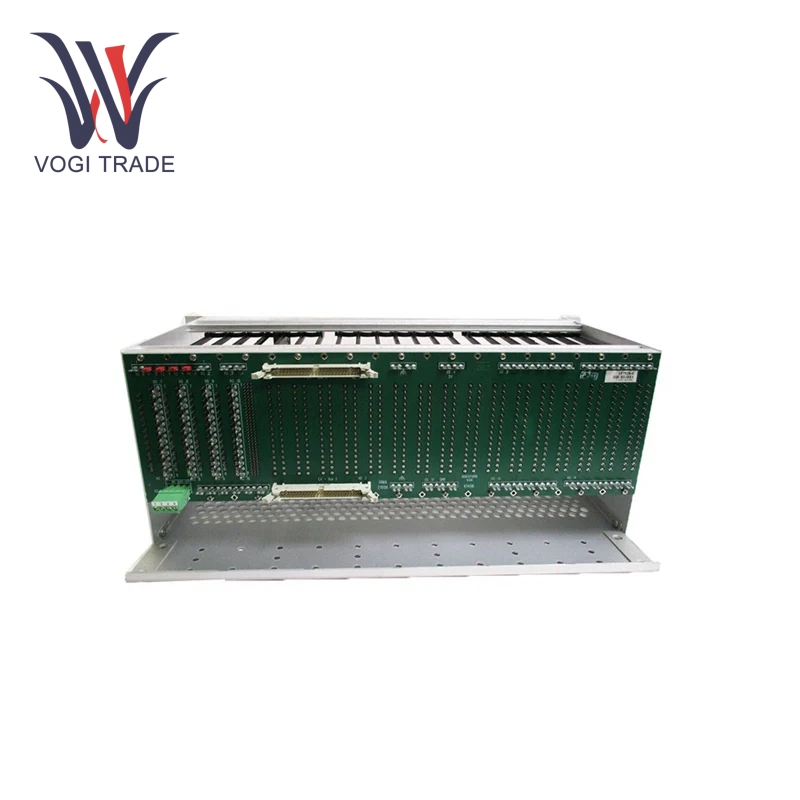

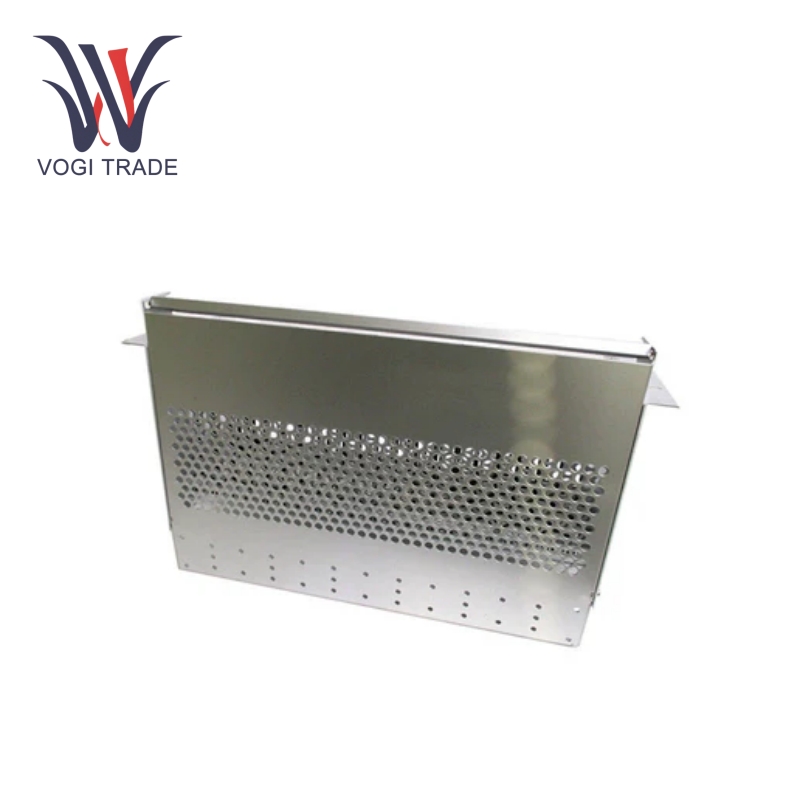

HIMA B5233-2

Usage Parameters

Processor: 32-bit ARM Cortex-A9, with powerful data processing capabilities, can quickly respond to complex control tasks and logical operations required for efficient operation of the system under various operating conditions.

Memory: 1GB RAM and 8GB flash memory. Larger memory helps to store more program code, data and temporary data during operation, while providing system stability, it also leaves room for future capacity expansion and upgrades.

Number of I/O points: 128 digital I/O and 32 analog I/O. Rich I/O interfaces can be easily interconnected with various external devices and sensors for the collection and control of various signals to meet the diverse input/output requirements of different industrial scenarios.

Communication interface: HIMA B5233-2 has 2 Ethernet ports and 1 USB port, supporting multiple communication protocols, and can communicate quickly and securely with other devices/systems. Communicate with PC, PLC, etc. through Ethernet, and realize distributed control and data sharing through USB interface, which is convenient for users to download applications, debug, and interact with storage devices.

Power supply: wide voltage input (24VDC), strong anti-interference ability, meet the harsh environmental requirements of industrial sites, and the system equipment operates stably and reliably.

Operating temperature: The operating temperature range is determined to be -40A~+70A. During operation, the system can adapt to extreme industrial environmental temperature conditions, adjust system operation according to geographical temperature changes and seasonal changes, adapt to a variety of industrial sites, and have stable and reliable operation.

Product function

Very safe: HIMA B5233-2 has passed SIL 3/4 certification and is suitable for safety-critical applications. Based on a fault-tolerant architecture, it ensures that it continues to operate in the event of a component failure. Partial hardware failure will not cause complete loss of control or safety accidents, greatly improving the safety of the industrial production process.

Easy expansion configuration: Modular design, users can choose different functional modules according to actual needs, making system expansion configuration easier, meeting the needs of complex large-scale industrial automation control systems at a lower cost, and reducing system complexity.

Hot swap: Supports module hot swap, and can easily replace or upgrade faulty modules without interrupting the overall system operation, saving a lot of equipment maintenance time, reducing production downtime, and improving production efficiency.

Diagnosis and self-test function: HIMA B5233-2 has powerful diagnosis and self-test functions, which can diagnose all the software and hardware operations of the system within the scanning time, with a diagnosis rate of 99.99%, and can monitor the operation status of the CPU and I/O card in real time. Once a fault occurs, the fault information can be quickly displayed in the form of 4 characters on the CU information window and the system workstation, and the location of the faulty module can be accurately displayed, such as the cabinet number, I/O card rack number, I/O card slot number, etc., so that maintenance personnel can quickly locate and solve the problem, and improve the reliability and maintainability of the entire system.

Basic processing and control functions: The powerful processor and sufficient memory resources can process various input signals quickly and accurately, and output corresponding control signals according to the pre-set control logic, so that the temperature, pressure, flow, liquid level and other parameters in the entire industrial production process can be accurately controlled by the computer, ensuring the steady progress and consistency of product quality in the production process.

Application scope

Chemical industry: In the chemical production process, the temperature, pressure, material flow and other parameters of the reactor are monitored and controlled, so that chemical reactions and product quality can be carried out safely and stably. HIMA B5233-2 can also be used in chemical plant interlocking systems to ensure the safety of operators and equipment in dangerous areas.

Petroleum industry: Applicable to various control and protection systems in the process of oil extraction, refining and transportation, such as remote monitoring of oil wells, production process control of refineries, safety monitoring of oil pipelines, etc., to ensure the safety and efficiency of oil production and transportation processes.
