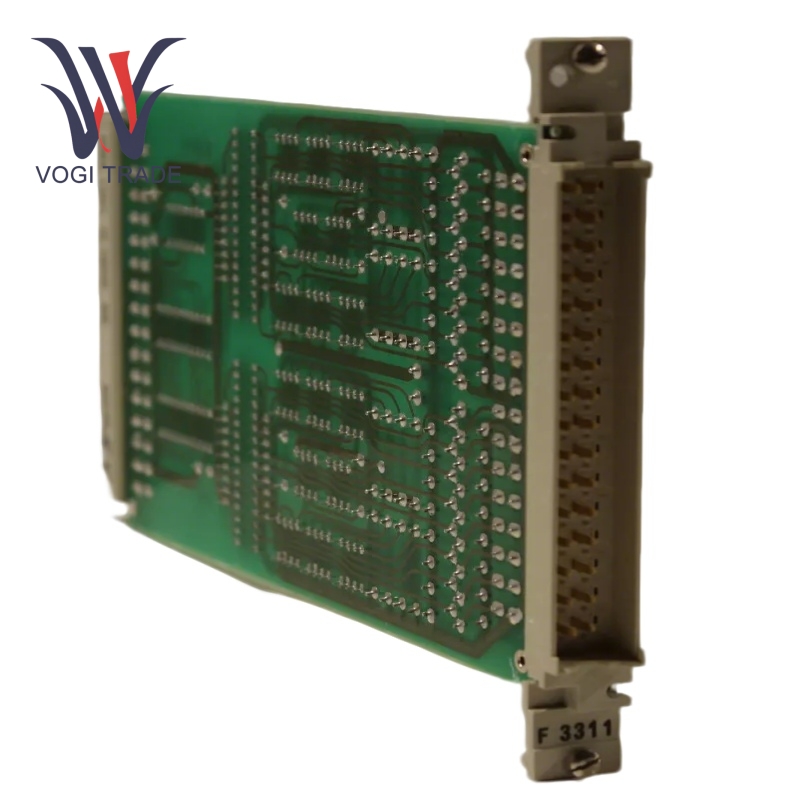

HIMA F3311

Utilization Parameters

Input Channels:  HIMA F3311 accommodates various types of signal inputs, such as digital, analog, voltage or current, etc., with a maximum of 32 input channels.

Output Channels: HIMA F3311 is designed for relay or transistor output, with a maximum of 16 output channels.

Communication Protocol: HIMA F3311 supports mainstream industrial communication protocols like Modbus TCP/IP, Profibus DP, Ethernet/IP, etc., which allows interconnection with third-party devices. Provides redundant communication to assure high reliability in data transmission.

Input voltage: 24V, DC (±20%).

Power consumption: ≤20W.

Operating temperature range: -25°C ÷+70°C.

Vibration resistance: according to IEC 60068-2 standard, suitable for harsh industrial environments.

Product Functions

Real-time Monitoring and Diagnostics: HIMA F3311 uses a high-speed processor to ensure real-time monitoring, accurately collects and analyzes input signals, and possesses powerful self-diagnosis functions. Fault points can be rapidly pinpointed and an alarm issued to prevent production stoppages.

Modular: The modular structure allows easy extension and maintenance. Thus, users may flexibly configure different functional modules according to actual needs so as to achieve better cost-effectiveness and availability of the system.

Redundancy and Uniquely High Reliability: HIMA F3311 hollers for redundant power supply, processor, and communication system configuration effectively avoiding system downtime due to point failure.

Diverse Communication Interface: HIMA F3311 has built-in multiple communication protocols to ensure smooth connection with automation equipment such as PLCs and SCADAs, which further facilitates the assembling of complex industrial control networks.

Rich Safety Functionality: Multi-level safety logic programming is supported; moreover, at various stages of programming, different logic controls can be customized for the needs of diverse processes. From any abnormal circumstance, the hardware and software for F3311 are arranged in a fashion called the "fail-safe" concept, which guarantees that it will be able to protect the safety of equipment and personnel.

Scope of Application

Petrochemical: HIMA F3311 is applied in refineries and chemical plants in the monitoring of the operational state of key equipment like pressure vessels and heating furnaces to prevent dangerous conditions from arising due to over-temperature and over-pressure.

Energy and Power: F3311 is in use in the safety protection system of power plant turbines, ensuring that equipment can quickly be started or shut off in emergencies, permitting stable operation of the entire power system.

Railway Transportation: HIMA F3311 is used in both automatic train control systems and signaling safety systems to assure safety and efficiency during train travel.

Industrial Manufacturing: In automated assembly lines, F3311 executes the inhibiting of normal operations of robots during safe shutdown and handles exceptions to prevent great organizational issues following equipment failures.

Product Advantages

High Safety: The safety concept is certified against SIL 3 under stringent conditions to meet extreme safety conditions against industrial users.

High Flexibility: Modular configuration and support for multiple communication protocols greatly simplify expansion and customized development.

High Reliability: The giant redundancy design with fault diagnosis functions guarantees the long-term and continuous operation.
