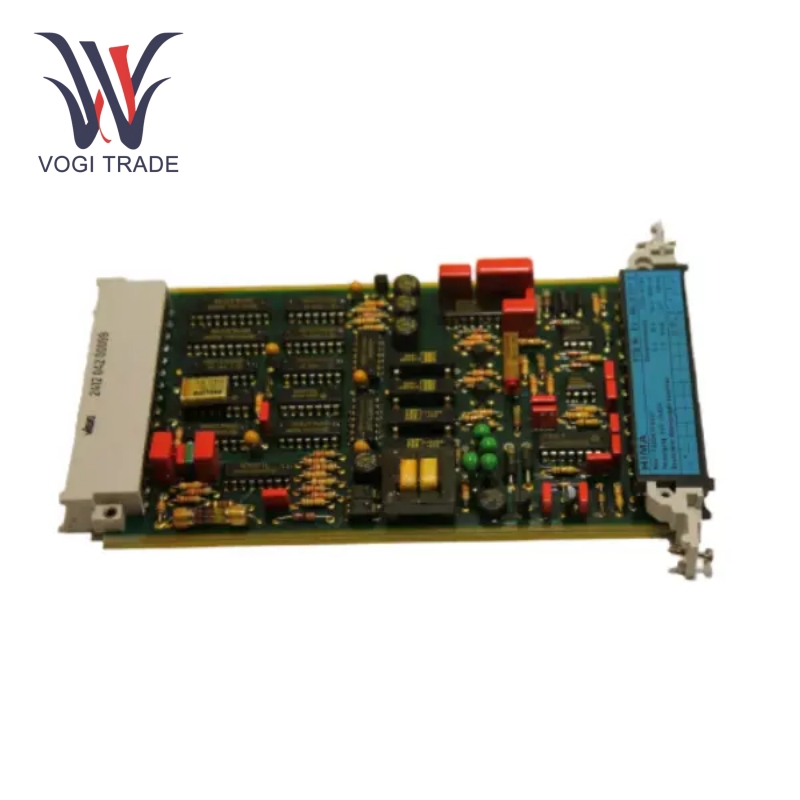

HIMA F6204

Usage Parameters

Input and output type: Example type takes F60MI2401 model as an example, that is, analog input module. Number of channels: This module generally has 24 analog input channels under standard configuration, which can collect multiple analog input signals at the same time to meet the monitoring needs of various signal sources in industrial sites.

Signal range: The signal transmission characteristics of HIMA F6204 include the ability to connect to a variety of common analog signal ranges such as 0-20mA, 4-20mA and other standard signal ranges, and cooperate with sensor output signals to achieve accurate signal transmission and acquisition.

Resolution: F6204 has a digital resolution of more than 12 bits for discrete or continuous signals. The role of high-resolution signals is to detect small changes in input signals, thereby providing higher data support for industrial process control and achieving fine control and monitoring.

Sampling frequency: The sampling time interval for input signals is very fast, generally several times per second, so the module has real-time dynamic response performance, which can successfully capture changes in parameters in industrial processes and quickly transmit them back to the control system for corresponding processing.

Product Function

Signal acquisition and processing: HIMA F6204 can collect analog signals from field sensors, and after filtering, amplification, linearization and other processing, convert the original signal into a standard signal useful for the control system, which greatly improves the quality and reliability of the signal and lays an accurate foundation for industrial process control.

Data transmission: Reliable data transmission, the module transmits the collected and processed data to the central control system or any related machinery through appropriate communication channels such as Profibus DP, Modbus TCP and other industrial communication protocols, ensuring the real-time and integrity of the data, enabling normal interaction between field devices and control units, and enabling operators to easily control and manage potential industrial processes.

Fault diagnosis and alarm: Built-in fault diagnosis function can observe the operating status and abnormal conditions of input signals in real time. If a fault occurs or the signal exceeds a certain threshold range, it will respond immediately and send an alarm signal and fault information to the control system through the communication interface to promptly notify relevant personnel to take action, thereby improving reliability and operational safety, while ensuring the safety of equipment when failure occurs during the process.

Redundant design: Some HIMA F6204 modules support redundant configuration. That is, two or more identical modules can be connected and run simultaneously within the system, and if one of them fails, the other can immediately take over its work. This can not only greatly improve the reliability and availability of the system, but is also very suitable for industrial applications that must comply with very high safety specifications.

Configurability: Supports flexible configuration. Through the corresponding software tools, users can set up, configure channels, and customize functions according to specific industrial application requirements to meet different control tasks and process flows, thereby improving the versatility and adaptability of the product.

Application scope

Petrochemical industry: Collect and monitor various key parameters in the process of petroleum refining and chemical production, such as temperature, pressure, flow rate in the pipeline, liquid level, etc. in the reactor, provide accurate data support for the control of complex chemical processes, maintain the stability of the production process and the consistency of product quality, and help optimize the production process, save energy and reduce greenhouse gas emissions.

Power industry: In power plants, collect and monitor the voltage, current, oil temperature, winding temperature and other operating parameters of generators, transformers and other equipment, monitor and protect power equipment in real time, and ensure safe and stable power supply of the power system. In the substation automation control system, it is also suitable for collecting and processing various electrical and non-electrical signals in the substation, improving the operation management level and automation level of the substation.

Pharmaceutical industry: In the process of drug production, the monitoring and control of temperature, humidity, pressure and other parameters in the drug synthesis, fermentation, drying and other processes are very important, and the requirements for environmental protection are very strict.
