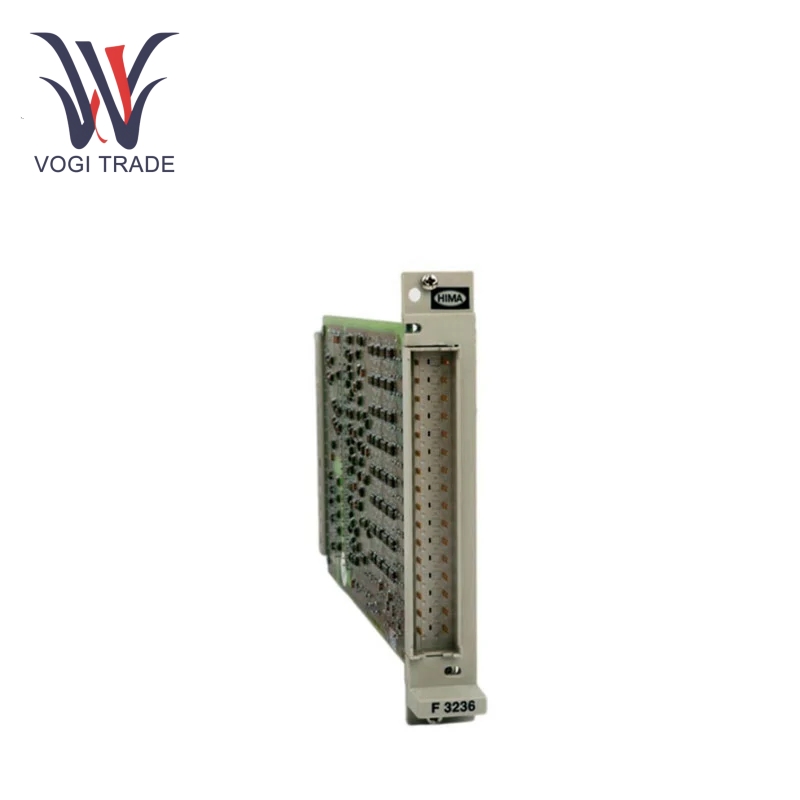

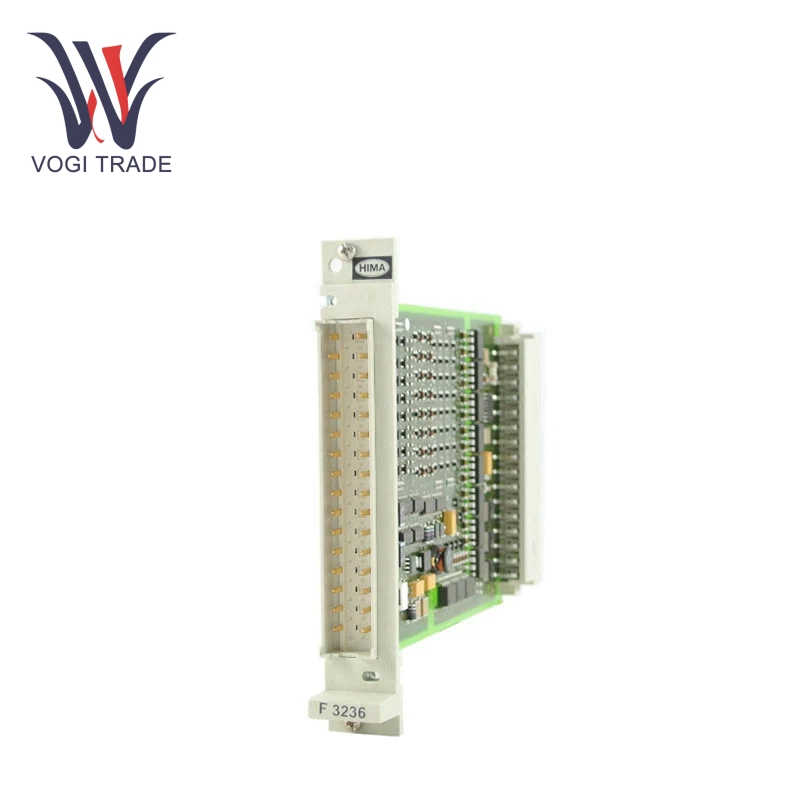

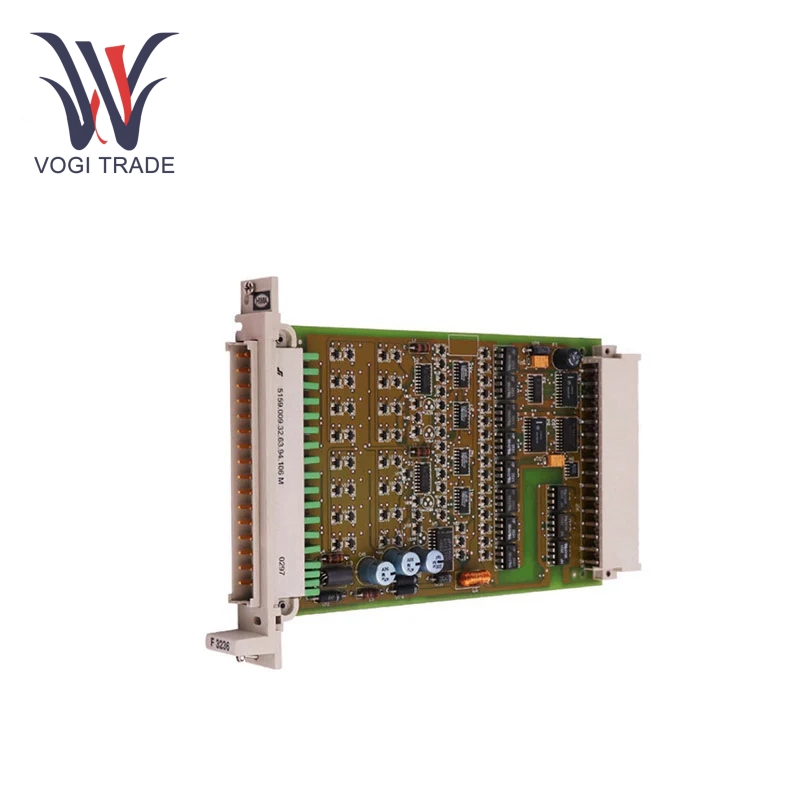

HIMA F3236

Usage Parameters

Input Points: HIMA F3236 is a 16-channel digital input module that can receive and process multiple digital signals simultaneously for proper monitoring of industrial equipment and processes.

Input Type: It is a digital input-based module that can accept and process signals from sensors, switches, buttons and other digital devices for accurate data acquisition.

Operating Temperature Range: The module can operate normally between -20℃ and +60℃, making it flexible to be used in different settings in industrial environments with various temperatures.

Storage Temperature Range: Able to operate between -40℃ and +85℃, it can be stored in sub-zero or high temperature conditions without any damage.

Humidity Range: F3236 works effectively in the relative humidity range of 5%-95%, and has good adaptability to different humidity levels.

Protection Level: With a protection level of IP20 or higher, it can provide a certain degree of protection against dust and foreign objects, ensuring reliable operation in industrial environments.

Power supply: DC 24V input is adopted to provide stable power supply support for normal operation.

Communication interface: Supports multiple communication protocols such as PROFIBUS DP, MODBUS TCP, etc., which can be integrated with different control systems while ensuring fast data transmission.

Product function

Receiving and processing signals: F3236 is used to receive digital input signals from various sources and accurately process them, and convert them into signals that can be analyzed by the system, so as to achieve accurate monitoring and control of industrial processes. Among them, the safety system is crucial. Through this module, the monitoring and processing of safety closure signals and buttons are monitored, so as to ensure the transmission and processing of safety signals in the system and the safety of personnel and equipment.

Self-diagnosis capability: F3236 has excellent self-diagnosis function, which can continuously check the operating status of the module and whether the input signal is normal. Once a fault or abnormal signal occurs, a fault signal is immediately issued; therefore, maintenance personnel can effectively identify and avoid such problems to minimize system downtime.

Configuration flexibility: The F3236 module provides users with flexible configuration possibilities, allowing parameters, channel settings and functions to be customized according to the specific needs of certain industrial processes. This flexibility makes it suitable for a wide range of applications and different control tasks.

Less wiring work: Unlike the usual wired logic, the use of PLC can store real storage logic or reduce wiring work in general, while speeding up the design and construction cycle of the entire control system. This also allows for straightforward installation and maintenance.

Application

The HIMA F3236 assists in production line monitoring and control in the chemical and petrochemical industries, chemical plants, and oil refineries. It accepts signals of measured parameters, including temperature, pressure, and flow, through sensors to ensure safe and stable operation of equipment.

Manufacturing: In the manufacturing industry, it collects data from machines and equipment to control related digital input signals from switches, sensors, etc., thereby improving the production efficiency and product quality of the entire process. In the power industry, in power plants and substations, it provides remote status monitoring and status display functions for generators, transformers, motors, and other electrical equipment by using signals such as voltage, current switch status, etc. It promotes the safe operation of power systems, thereby ensuring a reliable supply of electricity.

Railway: The signaling field involves train detection and level crossing safety-critical applications used in railways, indicating that the system contributes to the safe operation of transportation systems.

Building Automation: In building automation systems, it is used to monitor and control various digital input signals such as door and window status, lighting, HVAC systems, thereby improving the comfort and energy efficiency of the building. This module provides an effective way to monitor and implement energy management systems in energy management automation, ensuring the primacy of energy consumption efficiency and improving energy utilization capabilities.
