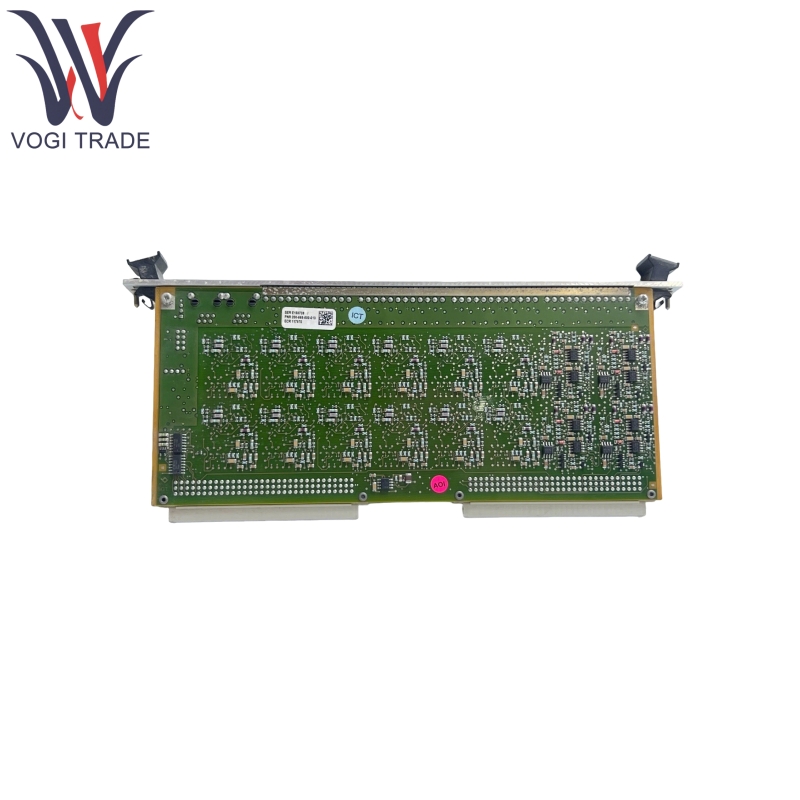

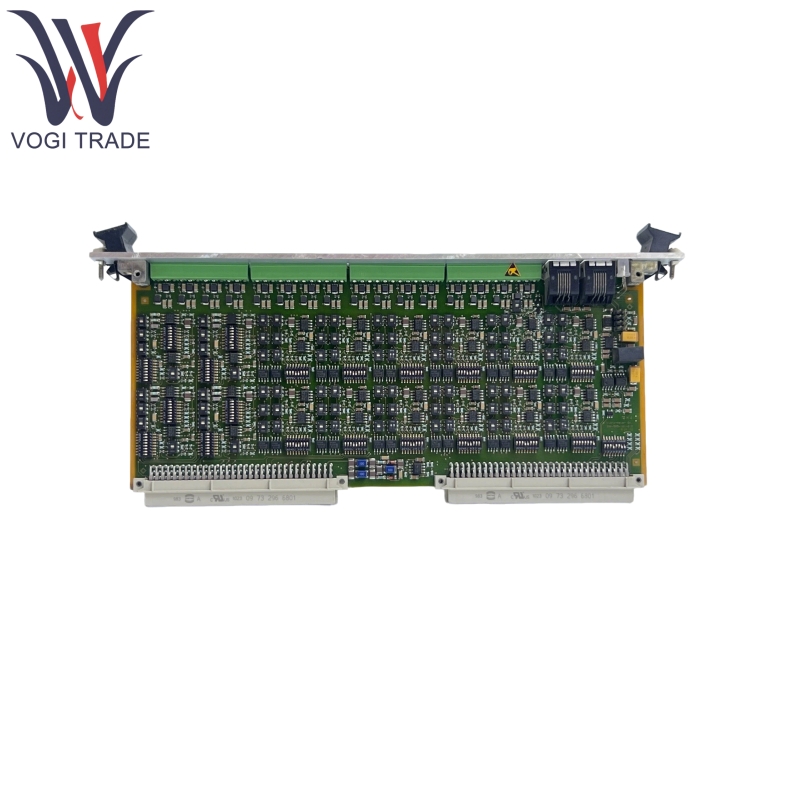

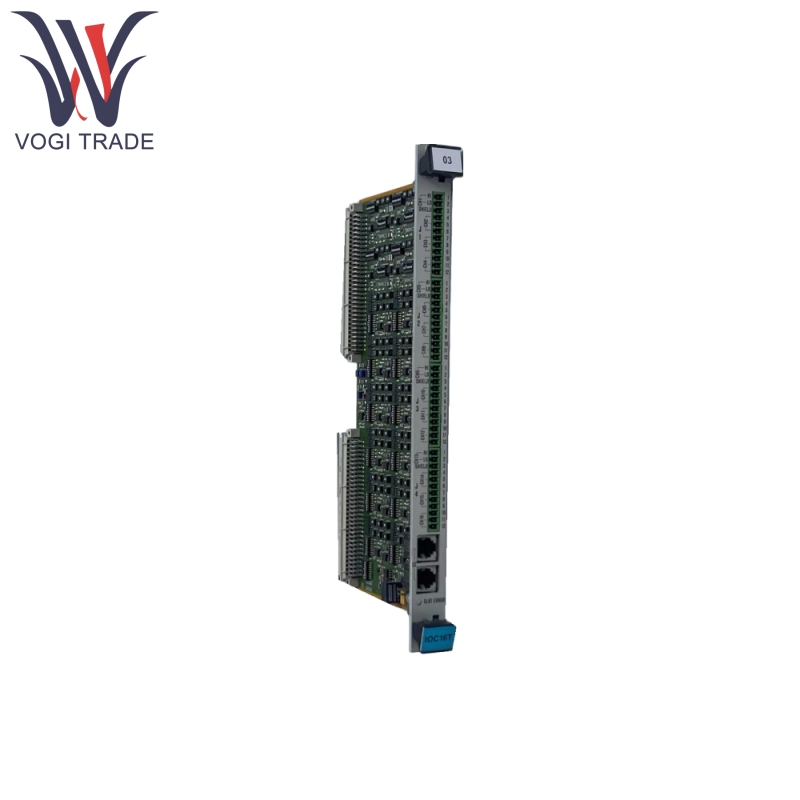

IOC16T 200-565-000-012

Product Features

16 channel interface card and screw 48 terminals strip connectors for VM600 Series CMC 16 (Condition Monitoring Card)

Channel functions can be selected via DIL switches

Ensures EMl protection and Provides signal conditioning

First 4 channels can be selected as tacho or dynamic (i.e. vibration) and Last 12 can be selected as dynamic or process

Inputs can be routed via VM600 Raw Bus and Tacho Bus

On-board isolated serial RS-485 communication option, and live insertion or removal of cards

Product Specification

1. IOC16T 200-565-000-012 each IOC16T is associated with a specific CMC 16 and is mounted directly behind it in the rack, and contains a terminal strip to connect the transmission cables coming from transducers and conditioners. However, if these signals are already available via the VM600 backplane 'Raw Bus' and 'Tacho Bus' lines, then these can be selected directly without any need for additional wiring

2. IOC16T 200-565-000-012 card protects all inputs against electromagnetic interference (EMl) and signal surges and also meets EMC (electromagnetic compatibility) standards. Tacho inputs, signals from accelerometers, velocimeters and proximity probes, or any dynamic or quasi-static signals are conditioned by dedicated circuity which performs tasks such as pulse shaping level adjustment and AC/DC selection.

3. IOC16T 200-565-000-012, micro-switches (DILs)are provided to facilitate selection of conditioner and access method(i.e.screw terminals or backplane). The IOC16T also provides isolation from the plant and ensures feed-through of inputs to the CMC 16.

4. IOC16T 200-565-000-012, two methods of communication are supported; VMEbus connection to a CPU M module in slot 0 of the VM600 rack and subsequent Ethernet link, or direct isolated multi-drop RS-485 serial connection via RJ connectors provided on the IOC16T.

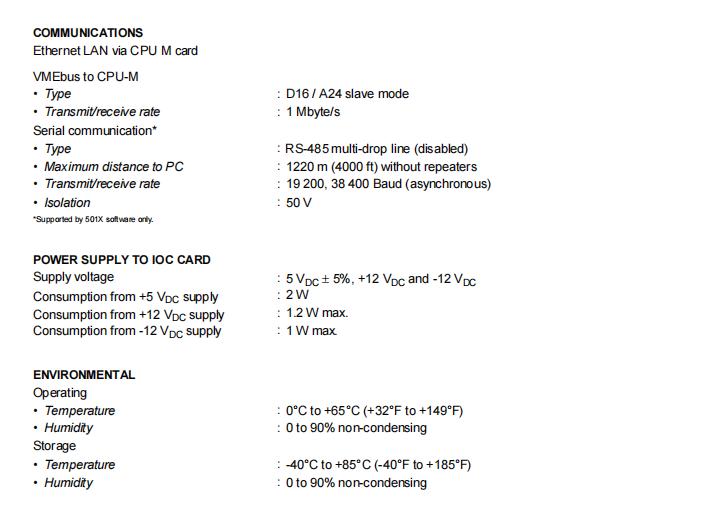

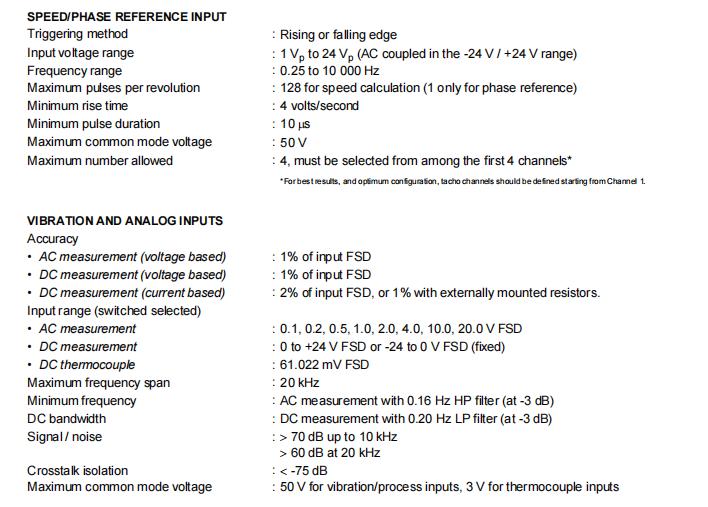

Product Parameters
