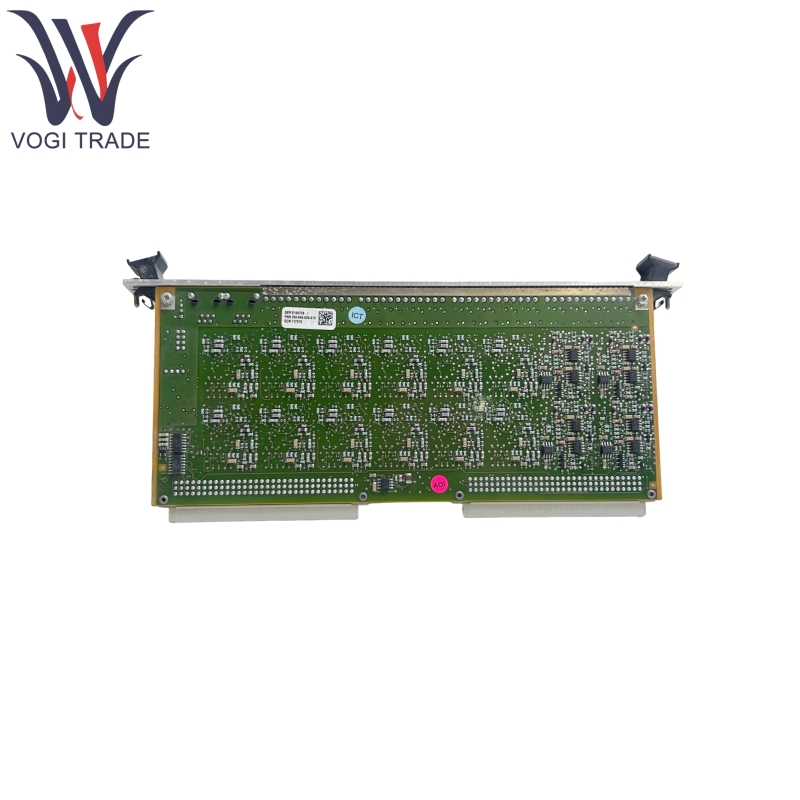

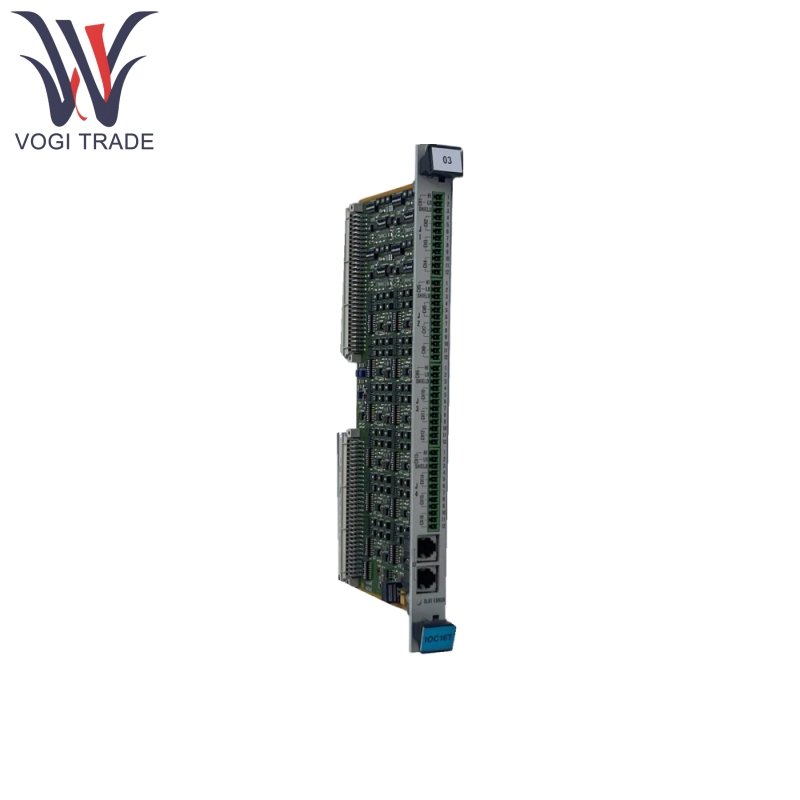

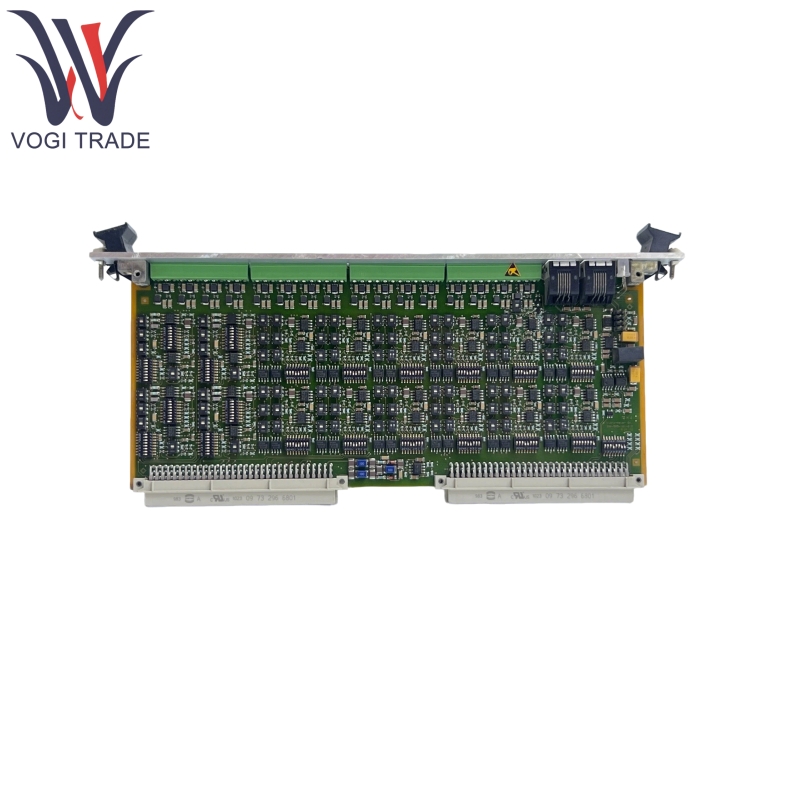

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen IOC16T 200-565-000-013 serves as a signal interface for the VM600 series CMC 16 (Condition Monitoring Card). It is mounted at the back of an ABE04X or ABE055 (Portable CMS) rack and connects directly to the rack's backplane through two connectors.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC16T |
|
Ordering Number |
200-565-000-013 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*2*14cm |
|
Weight |
0.6kg |
Product Features
16 channel interface card and screw 48 terminals strip connectors for VM600 Series CMC 16 (Condition Monitoring Card)
Channel functions can be selected via DIL switches
Ensures EMl protection and Provides signal conditioning
First 4 channels can be selected as tacho or dynamic (i.e. vibration) and Last 12 can be selected as dynamic or process
Inputs can be routed via VM600 Raw Bus and Tacho Bus
On-board isolated serial RS-485 communication option, and live insertion or removal of cards
Product Parameters
Product Applications
Condition monitoring of industrial machinery:
IOC16T 200-565-000-013 used with the VM600 Series CMC 16, it enables the real-time monitoring of vibration, speed and process signals from transducers (e.g. accelerometers and proximity probes) in rotating equipment such as turbines, generators, pumps and compressors.
Manufacturing and production facilities:
IOC16T 200-565-000-013 monitors the health of machines (e.g. CNC machines and conveyor systems) by conditioning dynamic signals (e.g. vibration) and process inputs (e.g. temperature and pressure). This enables predictive maintenance, preventing unplanned downtime.
Power generation:
IOC16T 200-565-000-013 supports tacho and vibration measurements for turbines and generators, ensuring stable operation by detecting anomalies via EMI-protected inputs and isolated communication interfaces.
Industrial automation systems:
IOC16T 200-565-000-013 integrates with VM600 racks (e.g. ABE 04X and ABE 055) for signal routing via Raw Bus and Tacho Bus to facilitate data acquisition for automation control and monitoring systems.
Portable condition monitoring setups:
IOC16T 200-565-000-013, when installed in the ABE 055 (Portable CMS) rack, it is suitable for on-site diagnostics and temporary monitoring in industries such as petrochemicals, where the health of mobile equipment needs to be assessed.
Heavy machinery and equipment maintenance:
IOC16T 200-565-000-013 enables configurable channel functions (via DIL switches) for tacho or dynamic inputs, supporting the maintenance of large-scale machinery by providing precise speed and vibration analysis.
