Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Xiamen IOC4T 200-560-000-013 input/output card main function is to receive the sensor signals and pass them on to the MPC4 for processing, and to transmit the processed signals to an external system via the output interface.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC4T |
|
Ordering Number |
200-560-000-013 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*14cm |
|
Weight |
0.4kg |

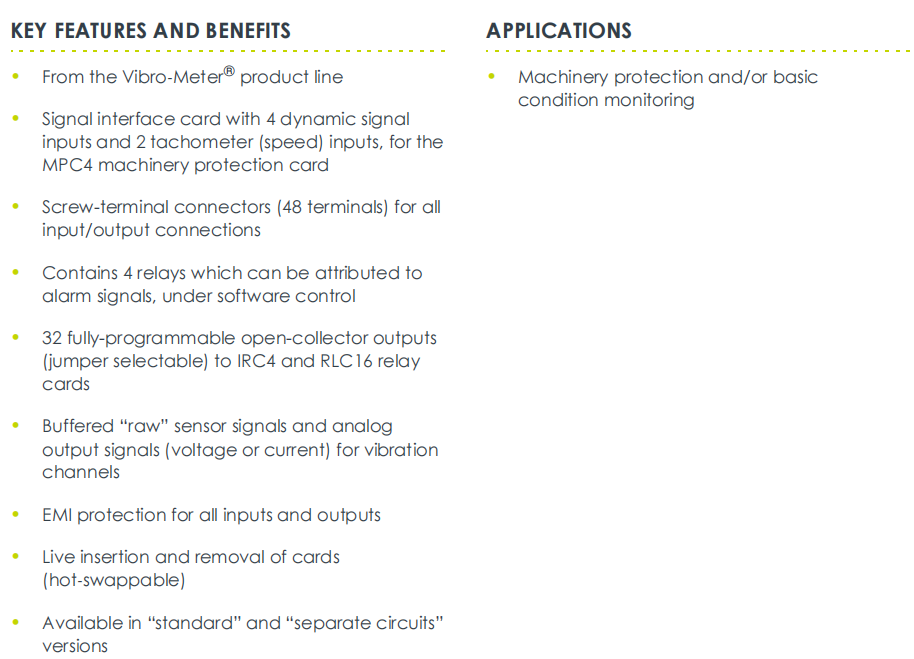

Product Overview

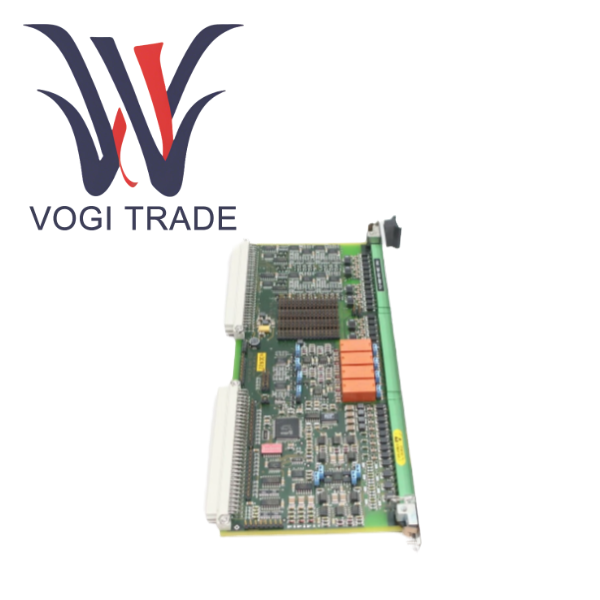

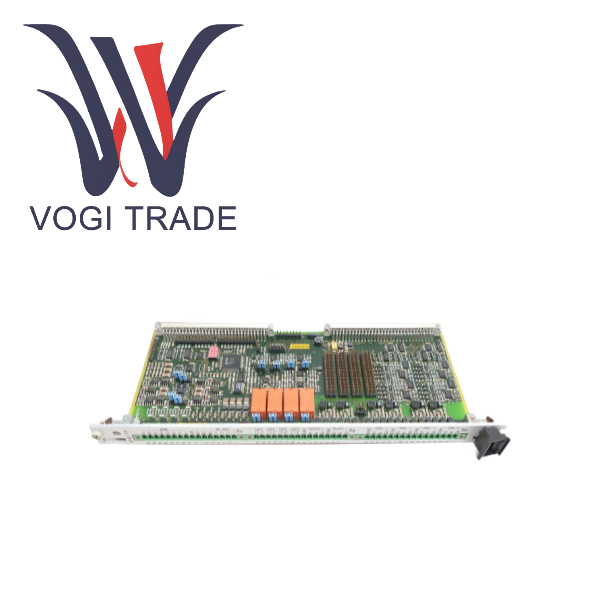

The IOC4T is a dedicated 6U height input/output interface card designed by Megite Sensing Systems for the VM600 condition monitoring and mechanical protection system platform. The 200-560-000-013 is not a standalone device but must be paired with the MPC4 to form a complete "MPC4/IOC4T card pair". In this architecture, MPC4 is responsible for high-speed data acquisition, signal analysis and protection logical operations, while IOC4T serves as a bridge between the "physical world" and the "digital world".
Order Number PNR 200-560-000-013
Card type Standard version
Product specifications and parameters
Product type VM600 IOC4T input/Output card
Order Number PNR 200-560-000-013
Matching main card MPC4
Version type Standard Edition
Hardware generation Early version
Physical dimensions 262mm in height, 20mm in width, 125mm in depth
Weight Approximately 0.25 kg
Power supply mode +5VDC and ±12VDC are provided by the VM600 rack backplane
Typical power consumption
+5VDC 1.5W
±12VDC 0.95W
External interface
J1 4-channel dynamic signal input
J2 2-channel speed/phase input + 4-channel relay contact output
J3 4-channel DC analog output + 3 channels digital control input + 4 channels buffered original signal output
Input channel
Dynamic signal 4 channels, range -10 to 0 VDC
Rotational speed signal 2 channels, supporting sine wave or square wave
DSI digital signal 3 channels
Output channel
Relay 4 channels, SPDT, user can configure normally open/normally closed
Analog output 4 channels, with options of 0-20mA or 4-20mA
Buffering the original signal 4 channels, high-impedance voltage output
Status indication SLOT ERROR LED
Configuration method Software configuration is carried out through the VM600 MPSx software. Some functions support hardware jumper Settings
Compliance and Certification
Non-rohs compliant
Complies with IEC 60255-21-1 Class 2 vibration standard
Supports IEC 61508 SIL 1 functional safety applications
